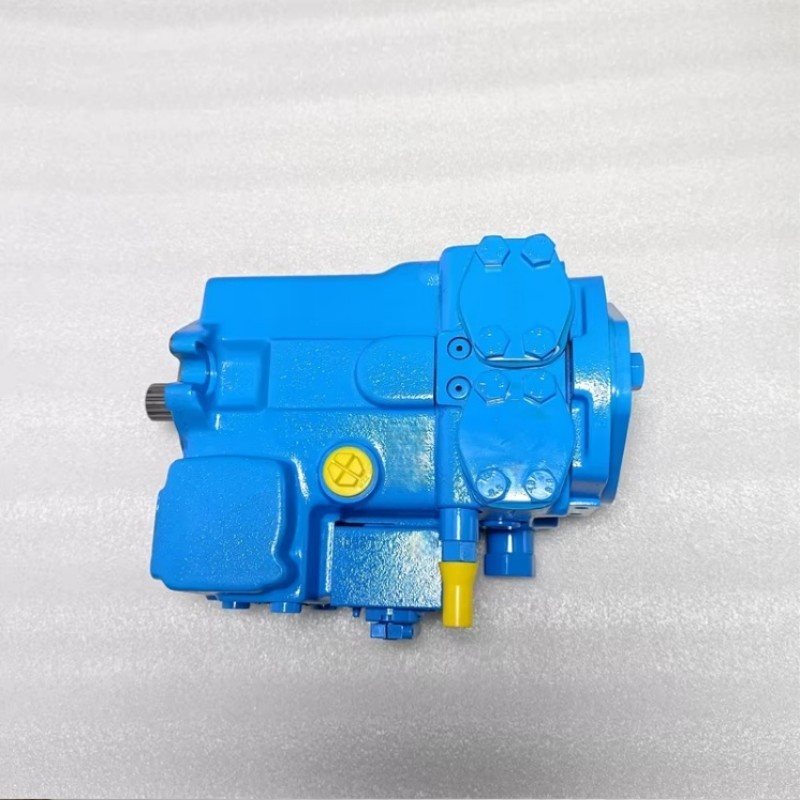

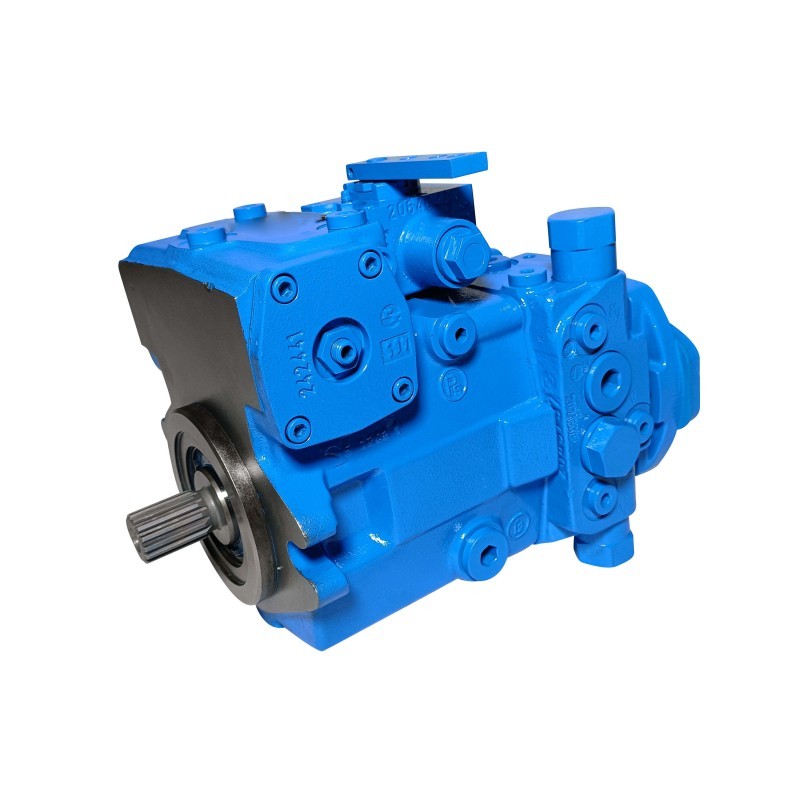

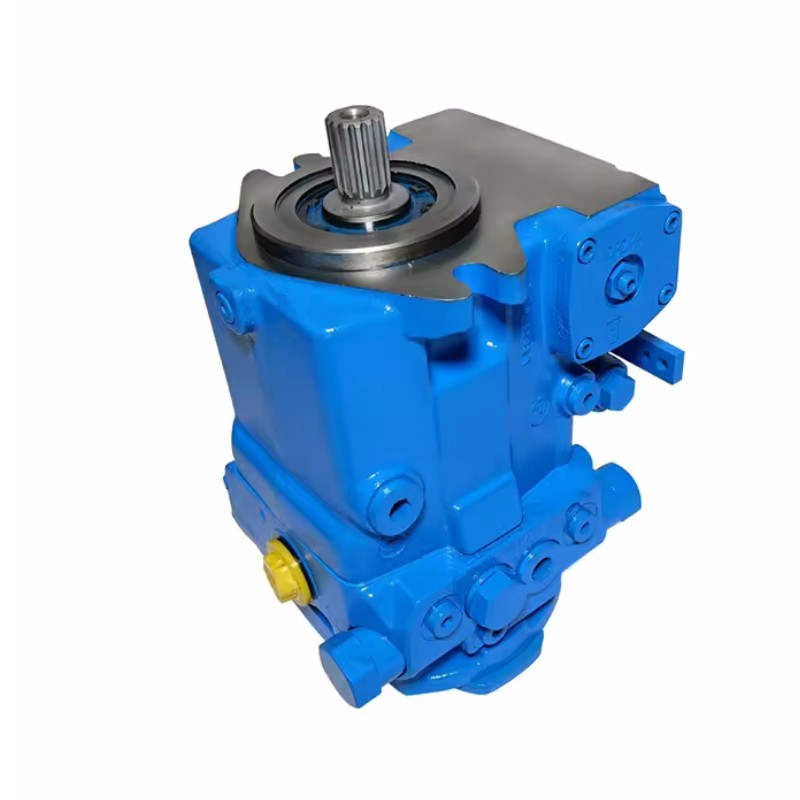

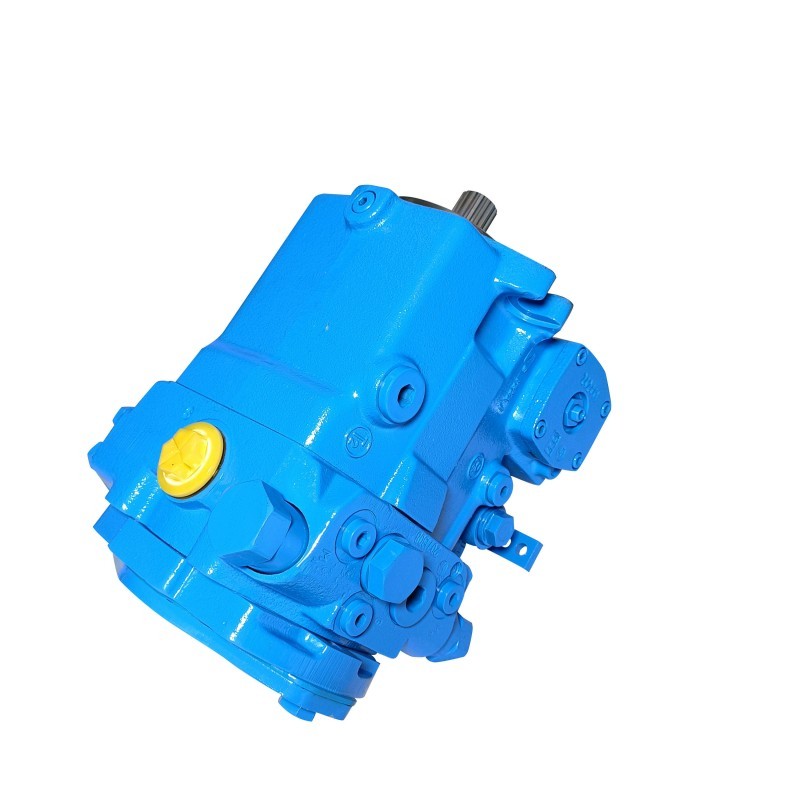

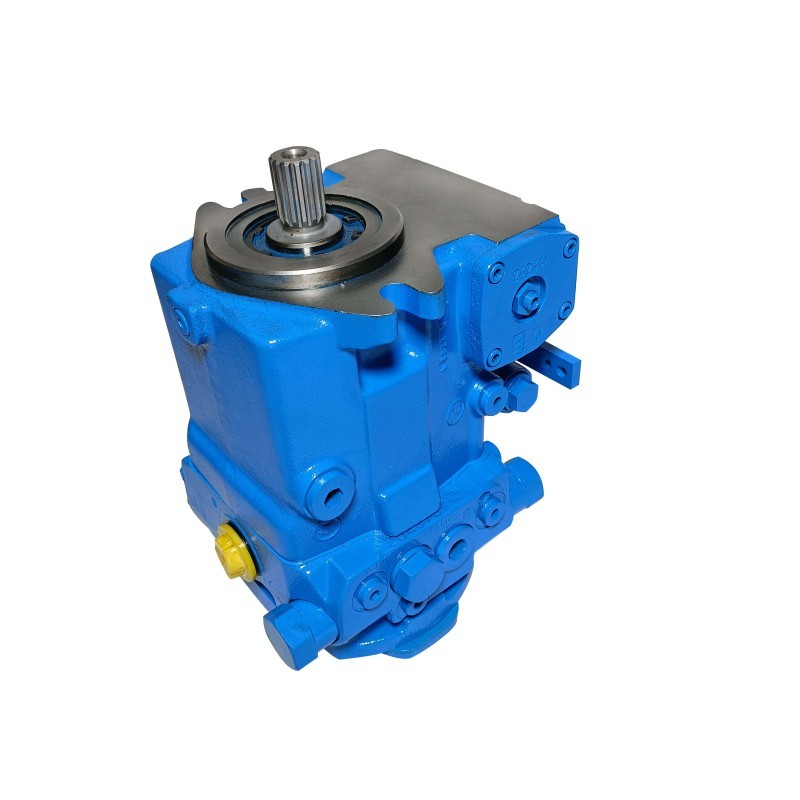

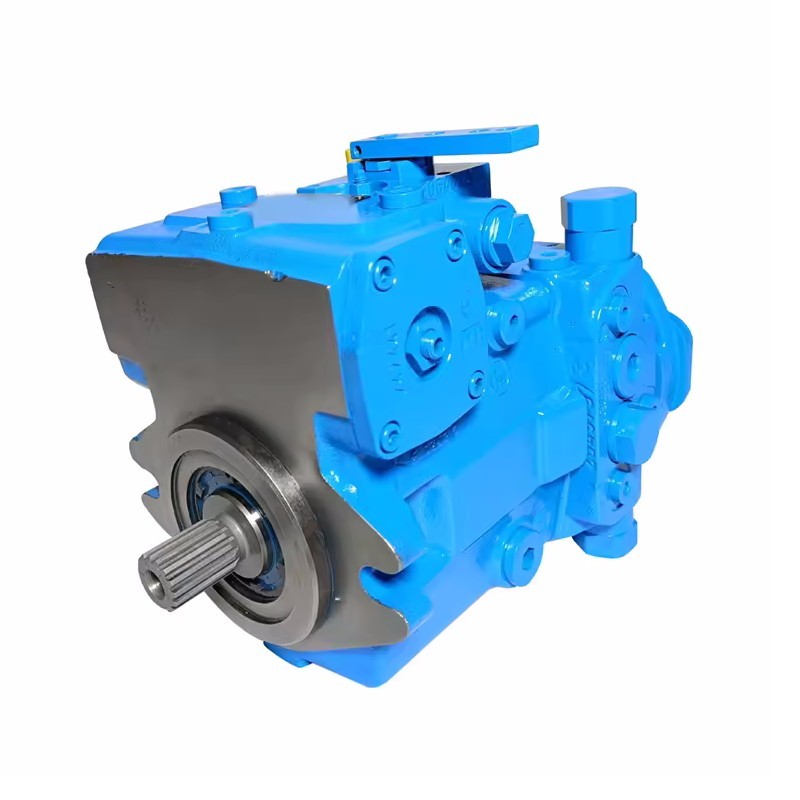

A10VG Series Variable Displacement Axial Piston Pump
A10VG swash plate axial piston variable pump is developed for hydrostatic closed circuit. Displacement covers 18 28 45 63cc/rev with rated pressure 300bar and peak pressure 350bar. It comes with integrated boost pump and built in high pressure relief protection valve. Multiple control options are available including hydraulic servo electric proportional two point and speed sensing control. The swash plate can smoothly change oil flow direction when passing neutral position. It features compact structure and high reliability for various mobile travelling equipment.
Key Advantages
- Sensitive dynamic response for smooth start stop and reversing of travelling machinery
- Built in valve assembly reduces external valve parts and overall equipment cost
- Excellent shock resistance to adapt to harsh outdoor working environment
- Convenient disassembly and maintenance for on site troubleshooting and parts replacement
| Product Parameters | ||||
| Size NG | 18 | 28 | 45 | 63 |
| Displacement(cm³/rev) | 18 | 28 | 45 | 63 |
| Speed (rpm) | 4000 | 3900 | 3300 | 3000 |
| Flow (L/min) | 72 | 109 | 152 | 189 |
| Nominal pressure(bar) | 300 | |||
| Max.pressure(bar) | 350 | |||
| Weight(approx.)(kg) | 14 | 25 | 27 | 39 |
| Application field | Used in closed systems,mainly used in agricultural machinery and construction machinery | |||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
