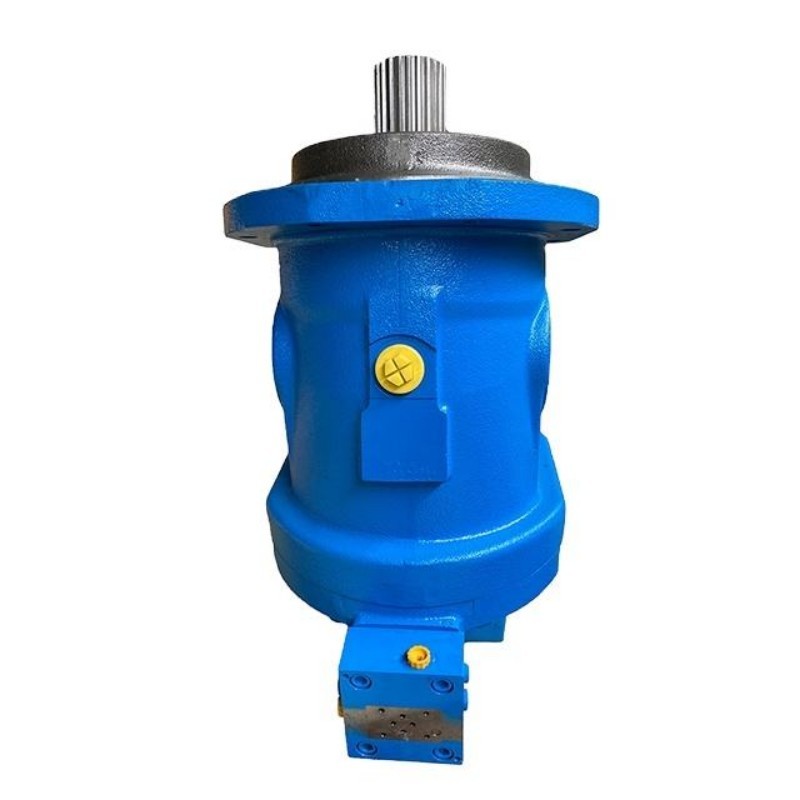

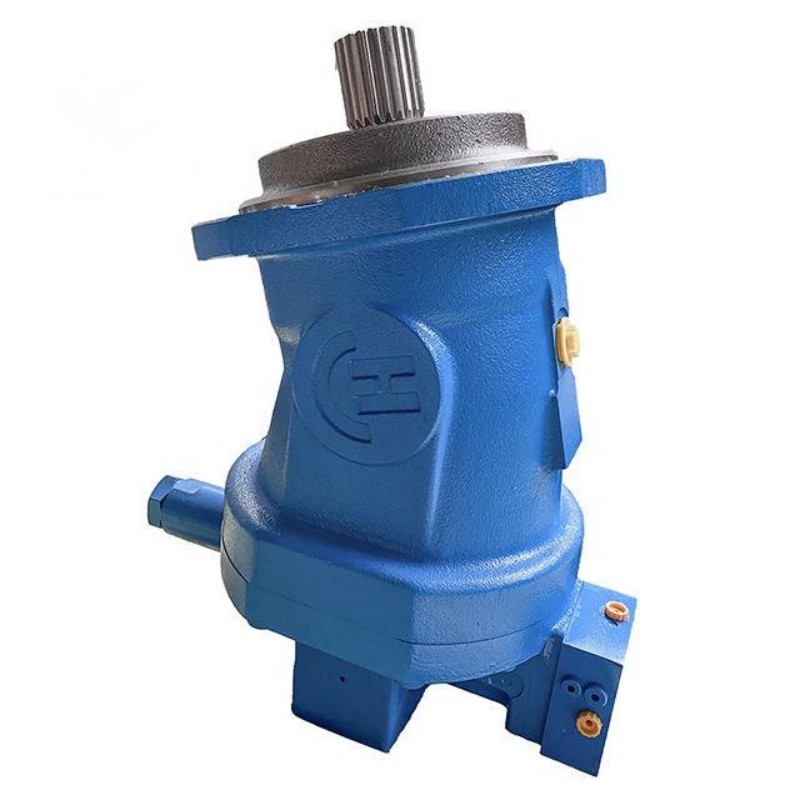

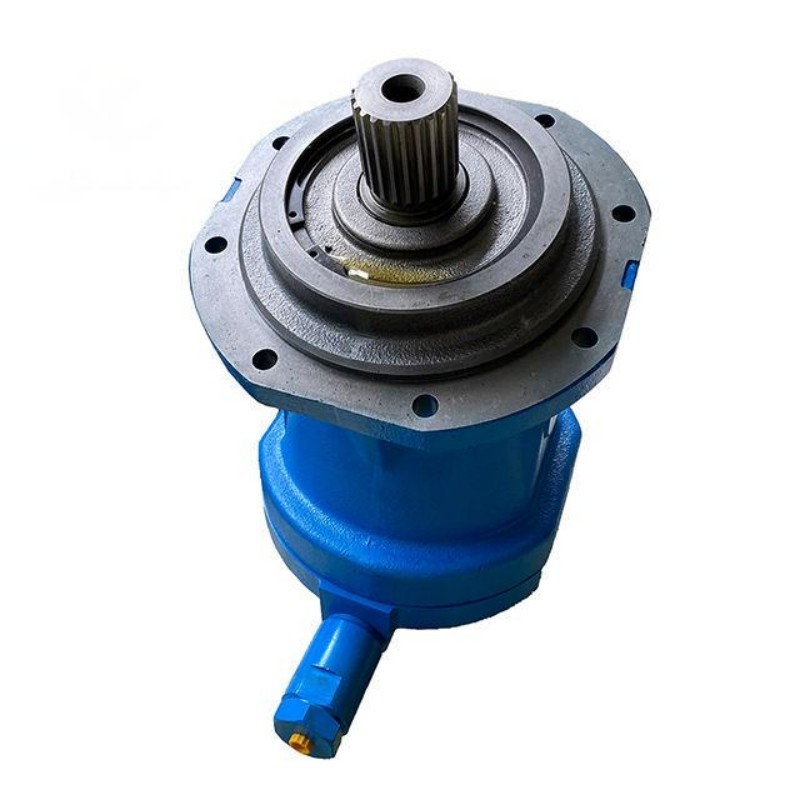

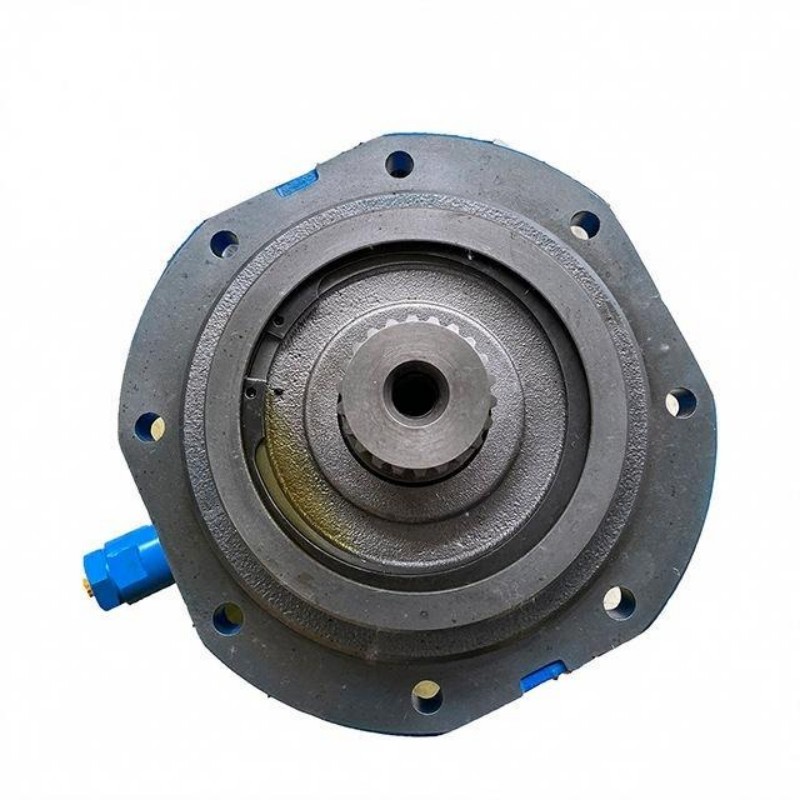

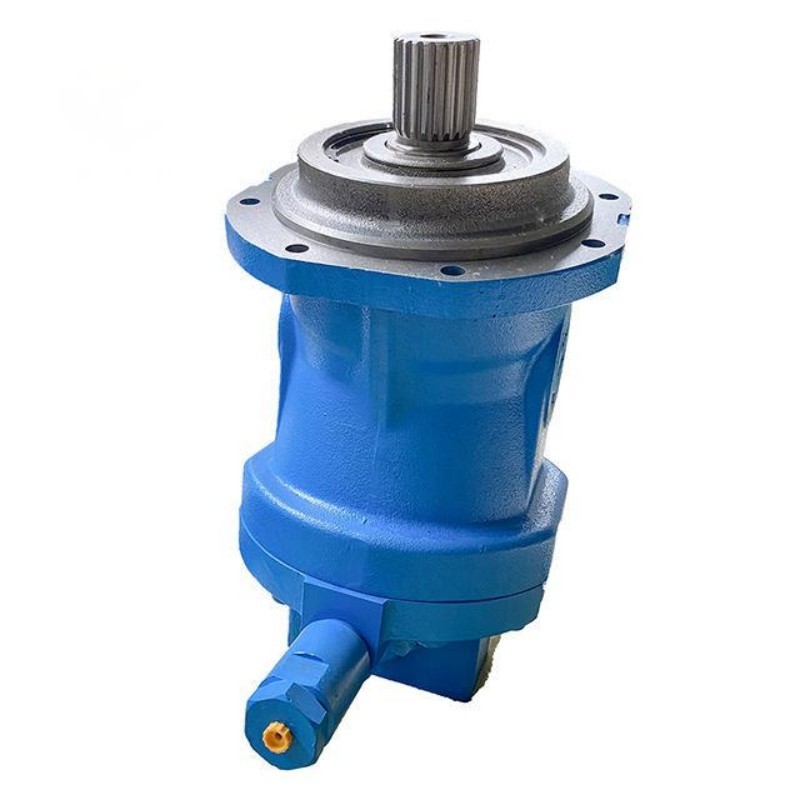

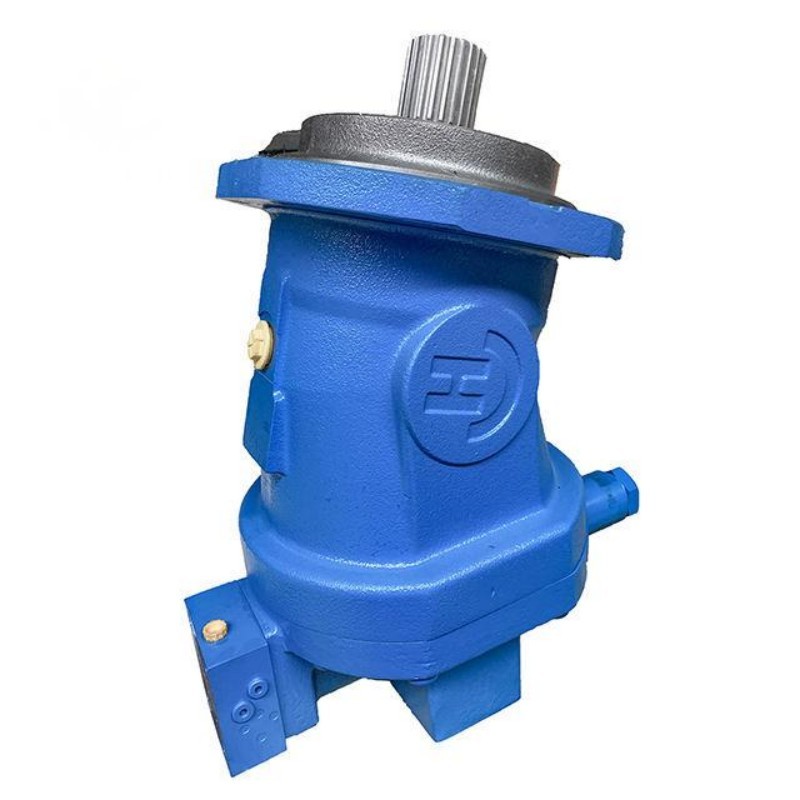

A6V Series Variable Displacement Piston Motor

A6V bent‑axis variable piston motor,infinite displacement adjustment,350 bar continuous pressure,400 bar peak pressure,high power density,low inertia,suitable for open and closed circuits,multiple control options,widely used for crane,drilling rig and excavator drives

INQUIRY

Product Details

Product Tags

A6V series is bent axis axial piston variable displacement motor. Displacement ranges from 28 to 1000cc/rev. Nominal pressure reaches 350bar and peak pressure hits 420bar. It adopts bent axis tapered piston rotor assembly with stepless displacement adjustment between maximum and minimum displacement. Multiple control modes are available for open and closed hydrostatic circuits. It delivers high starting efficiency and high power density and can bear large radial and axial shaft load. Widely used for heavy duty applications such as mobile machinery mining equipment crane machinery and marine transmission.

Variable Displacement Motor

Product Parameters
Size NG	28	55	80	107	160	225	250	468
Displacement (cm³/rev)	28.1	54.8	80	107	160	225	250	468
Speed (rpm)	6250	5000	4500	4000	3500	3100	3100	2500
Nominal pressure(bar)	350
Max.pressure (bar)	400
Torque p=350bar(Nm)	156	305	445	595	890	1252	1391	2604
Mass(approx.)(kg)	18	27	39	52	74	103	103	223
Application field	Used in engineering machinery and mining equipment, such as horizontal directional drilling rigs,tunnel fully hydraulic drilling rigs,rotary drilling rigs,etc.,which

Wide speed adjustment range enables one motor for both high speed travel and heavy load operation
High reliability under high pressure fits harsh heavy load environment such as mining and crane
Sensitive variable response quickly matches output torque and speed when load changes
Good component universality lowers spare parts procurement cost for later maintenance

Applications

Construction machinery travel drive and crawler crane
marine auxiliary transmission
mining tunneling equipment and rotary drilling rig
special engineering vehicle
large mobile operation equipment


1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions

Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Q: What's the lead time for orders?
A: Standard models ship in 7-15 days; customized units require 30-45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.

Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
