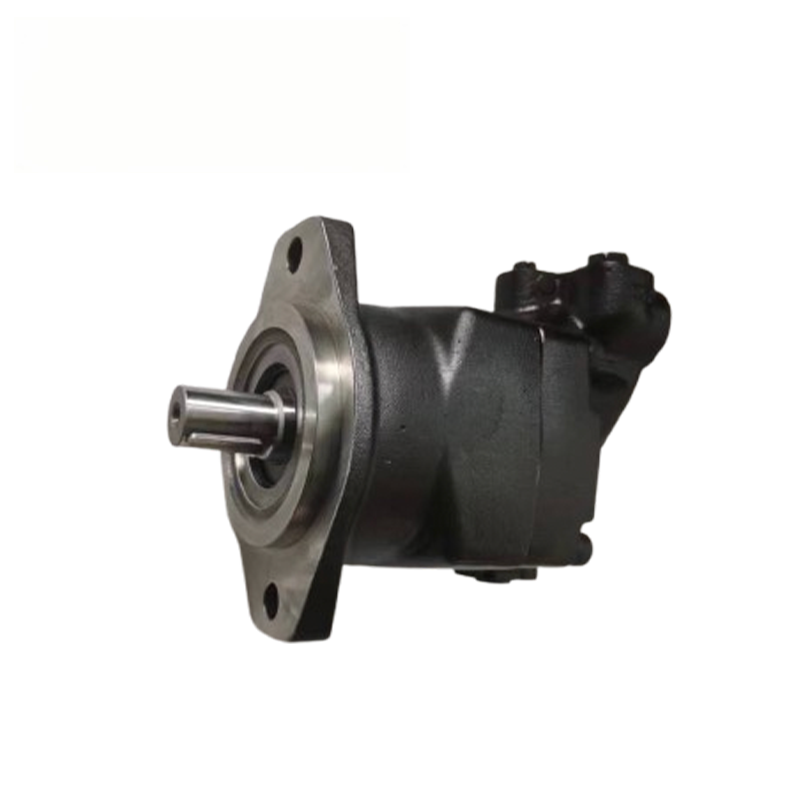

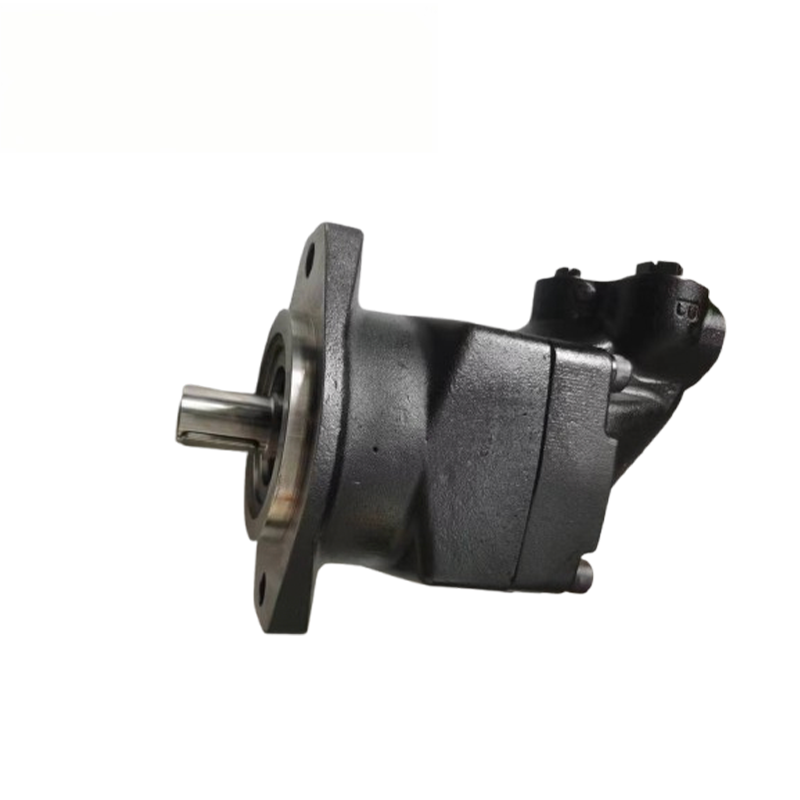

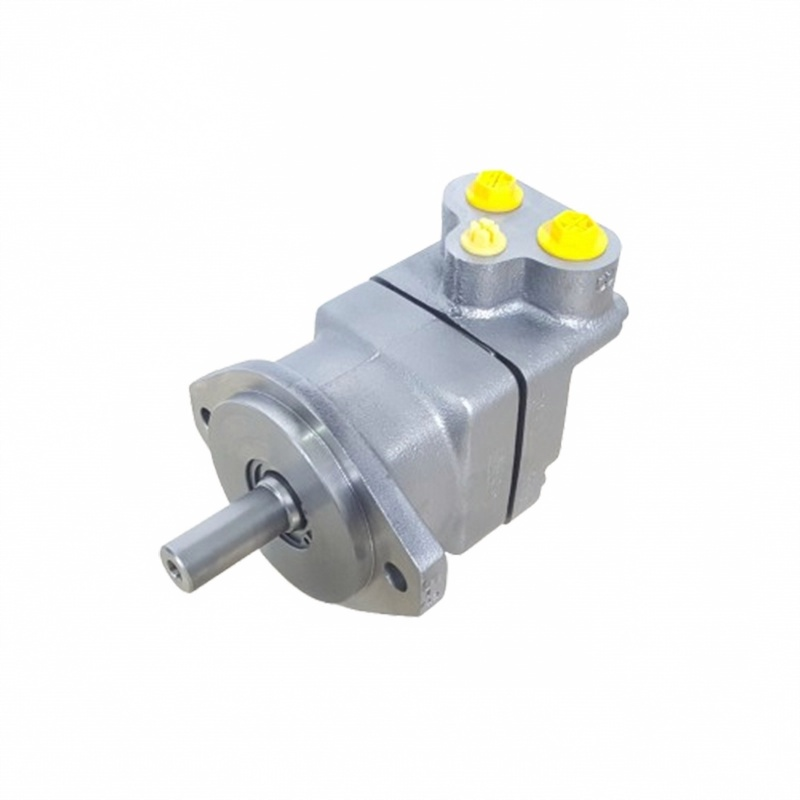

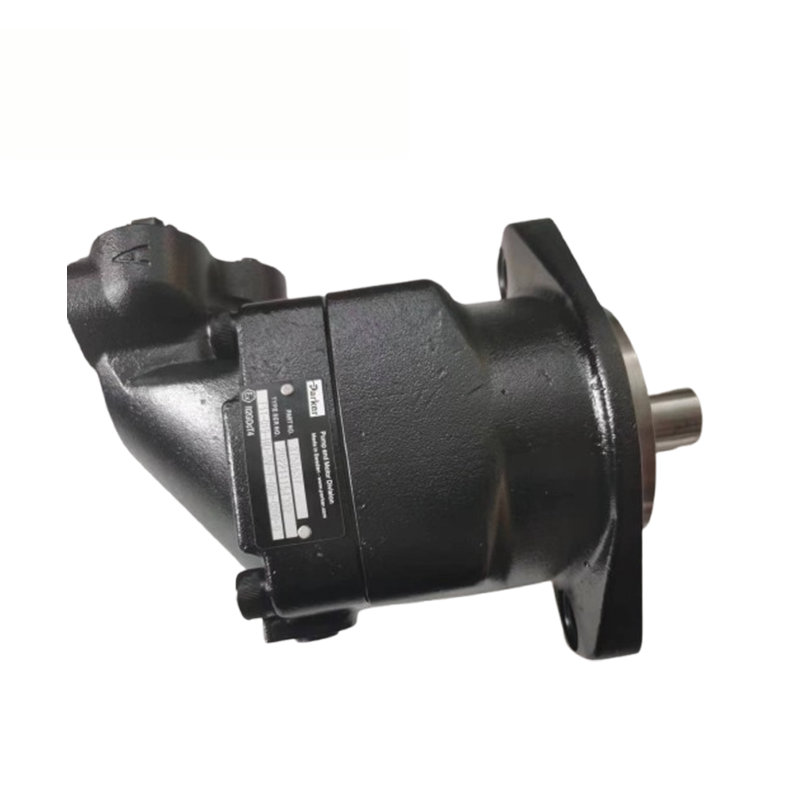

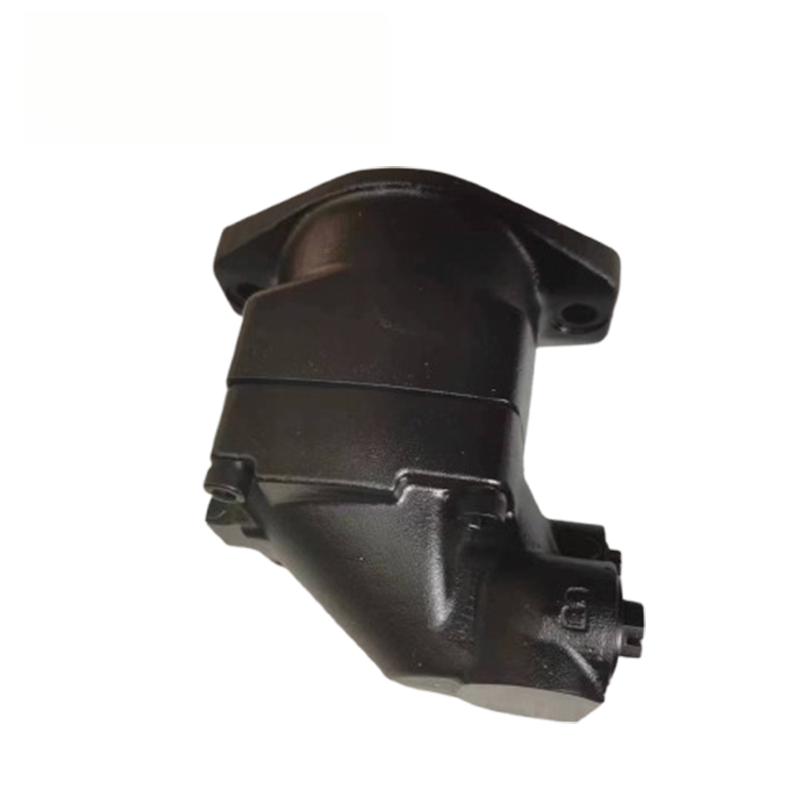

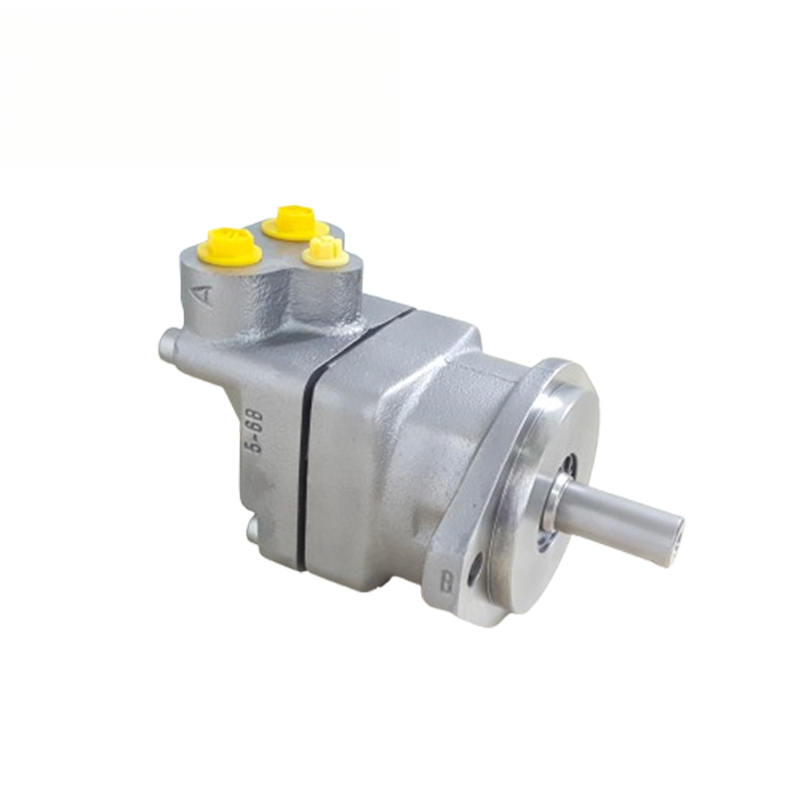

F11 Series Fixed Displacement Bent Axis Motor
Inclined Axis Quantitative Motor
| Product Parameters | ||||||
| Size NG | 5 | 6 | 10 | 12 | 14 | 19 |
| Displacement(cm³/rev) | 4.9 | 6 | 9.8 | 12.5 | 14.3 | 19 |
| Speed (rpm) | 12800 | 10200 | 10200 | 9400 | 9000 | 8100 |
| Nominal pressure (bar) | 350 | |||||
| Max.pressure (bar) | 420 | |||||
| Torque p=350bar(Nm) | 27.3 | 33.25 | 54.6 | 69.3 | 79.45 | 105.7 |
| Weight(approx.)(kg) | 4.7 | 6.5 | 6.5 | 7.5 | 7.5 | 11 |
| Application field | Used in high-speed rotating motors,valve wood machines,cutting equipment,walking,etc. | |||||
Extremely high maximum speed meets equipment demanding high speed driving conditions
Excellent starting torque efficiency ensures stable torque output under low speed condition
Reliable high pressure performance for long term operation under 350bar continuous pressure
Robust whole machine structure adapts to mobile working environment with heavy vibration and impact
Applications
Forestry cutting and sawing equipment
high speed fan drive
small drill rig
aerial work equipment
construction machinery auxiliary drive
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 7-15 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
