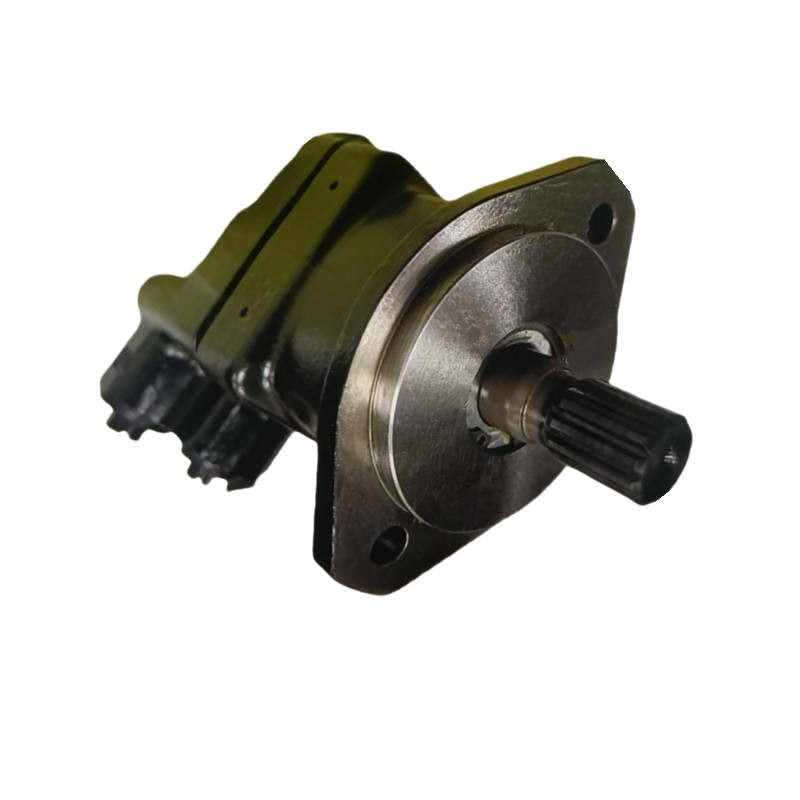

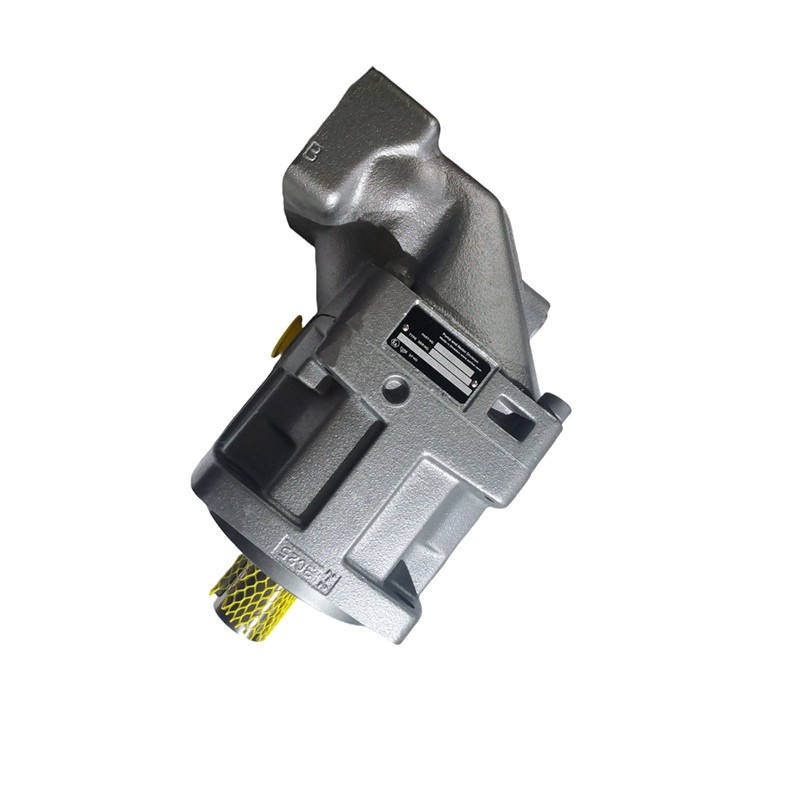

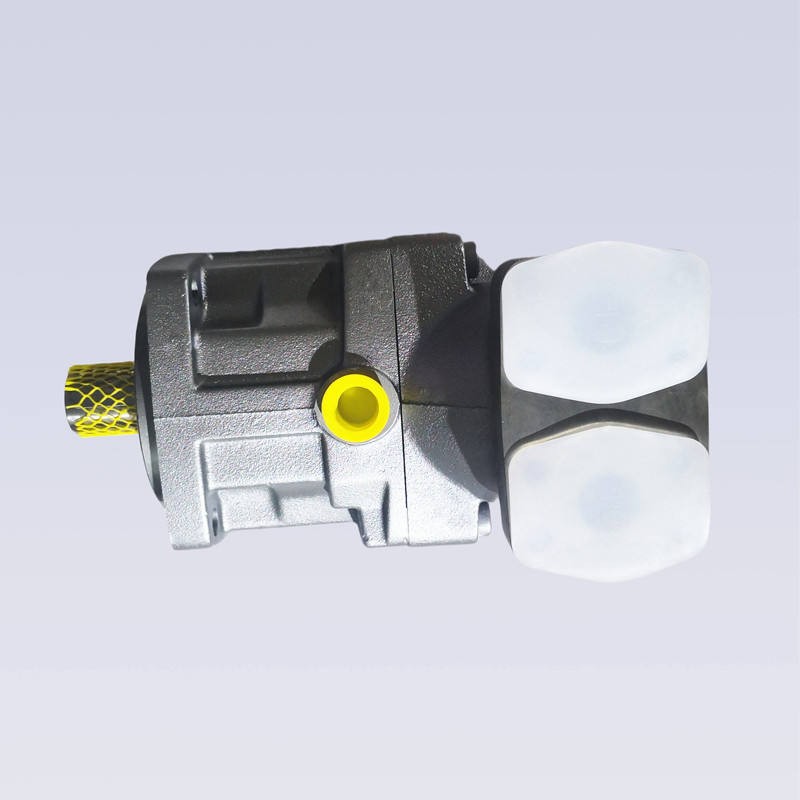

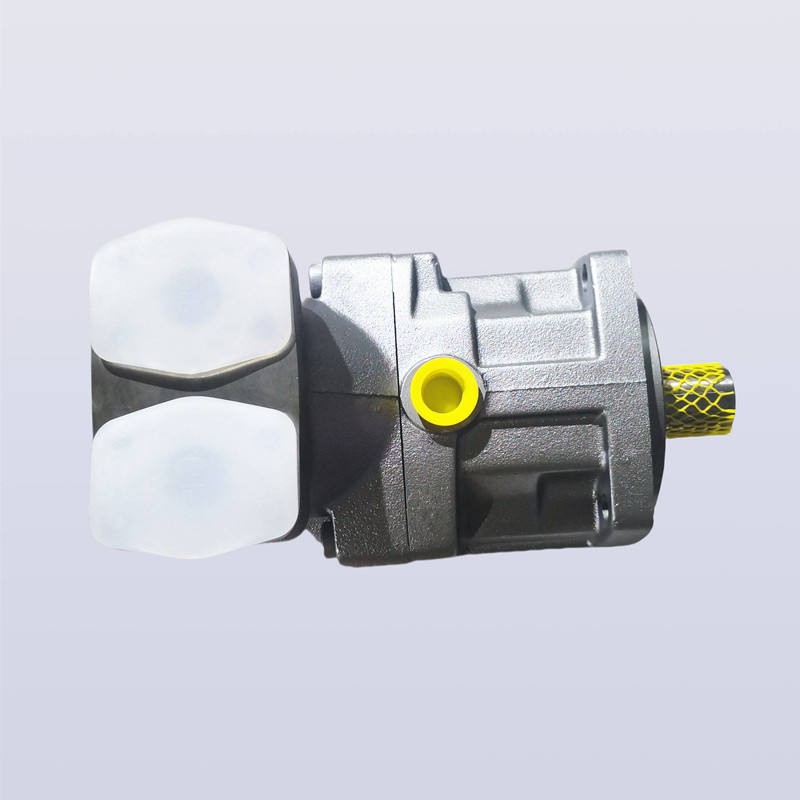

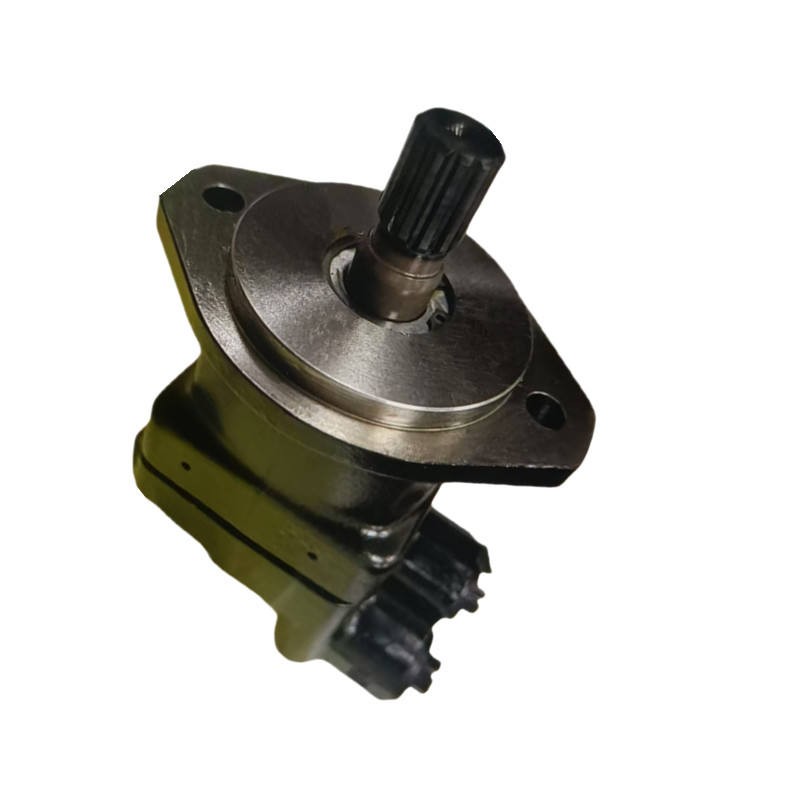

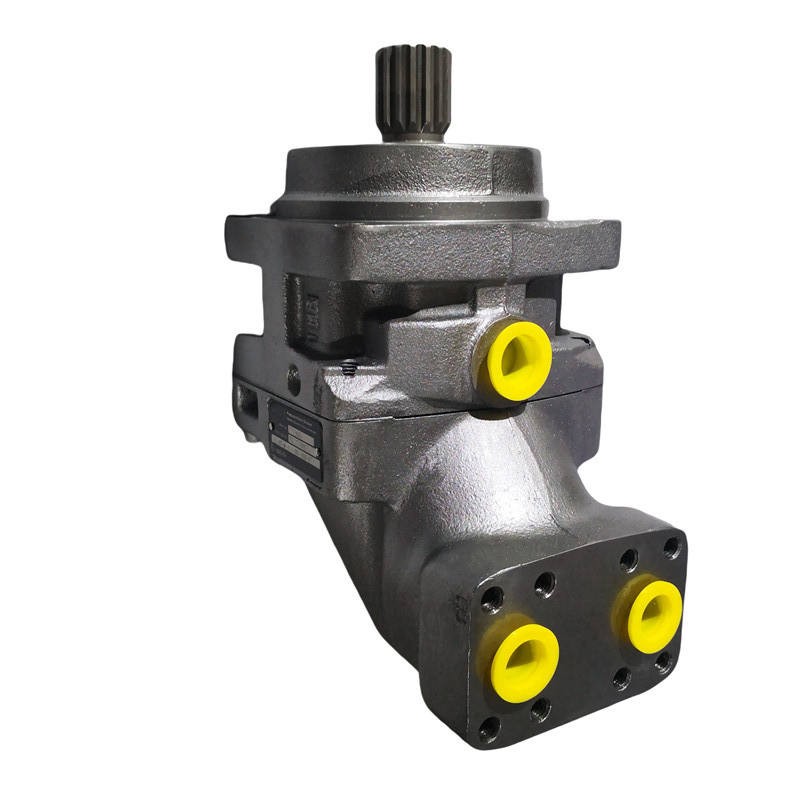

F12 Series Fixed Displacement Bent Axis Motor
Inclined Axis Quantitative Motor
| Product Parameters | |||||||||||
| Size NG | 30 | 40 | 60 | 80 | 90 | 110 | 125 | 152 | 162 | 182 | 250 |
| Displacement (cm³/rev) | 30.0 | 40.0 | 59.8 | 80.4 | 93.0 | 110.1 | 125.0 | 149.8 | 163.1 | 179.8 | 242.0 |
| Speed (rpm) | 6700 | 6100 | 5300 | 4800 | 4600 | 4400 | 4200 | 3700 | 3700 | 3700 | 2700 |
| Nominal pressure(bar) | 420 | ||||||||||
| Max.pressure(bar) | 480 | ||||||||||
| Torque p=350bar(Nm) | 167 | 222 | 332 | 447 | 517 | 612 | 694 | 844 | 900 | 1012 | 1345 |
| Mass(approx.)(kg) | 11.5 | 15.7 | 18.6 | 25.7 | 25.7 | 33 | 33 | 40 | 40 | 40 | 77 |
| Application field | Used in mechanical equipment that requires high-speed rotation,such as:hydraulic travel,high-speed cutting motors, rotary digging power heads,winches,high-frequency vibration pile hammers,etc. | ||||||||||
Sufficient torque output under high pressure for heavy duty continuous operation
Wide speed range takes care of high speed rotation and stable low speed performance
Good parts interchangeability reduces spare parts purchase and on site maintenance cost
Multiple seal options support stable operation within wide temperature range
Applications
Mining drill rig
forestry harvesting equipment
truck mounted crane
marine deck machinery
shredder equipment
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 7-15 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
