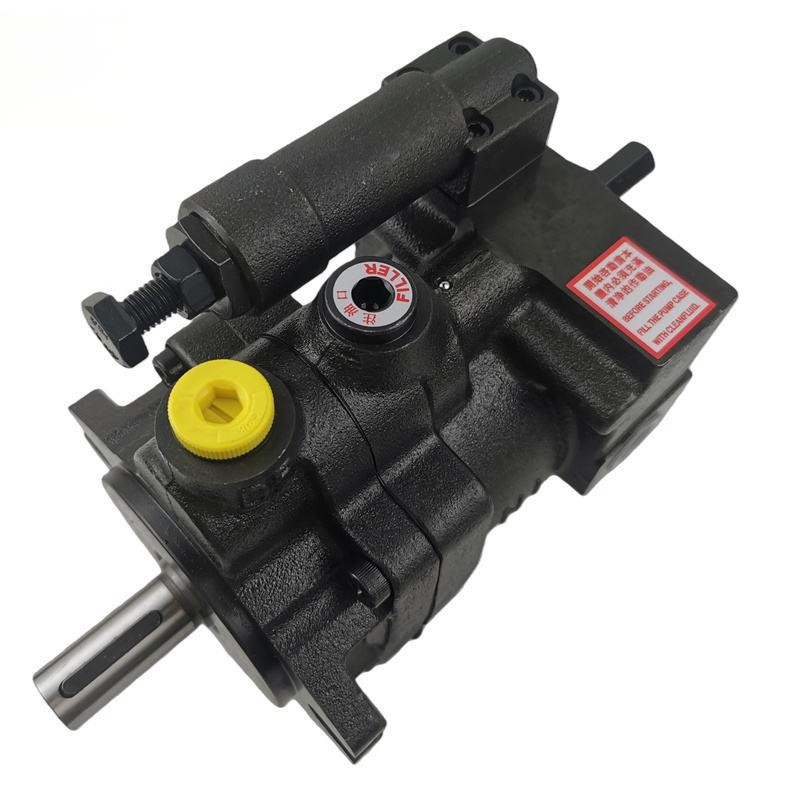

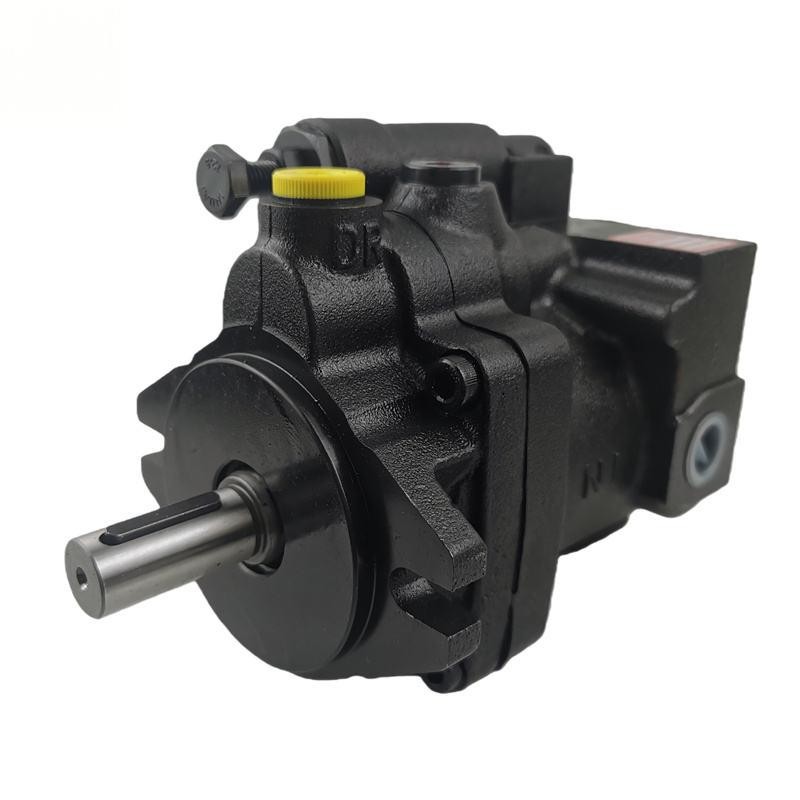

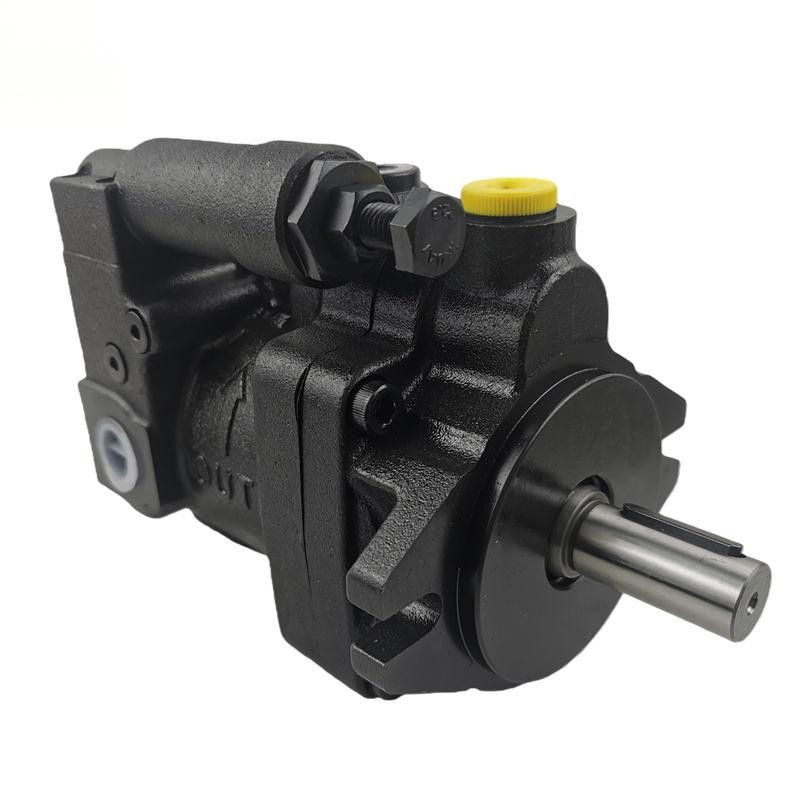

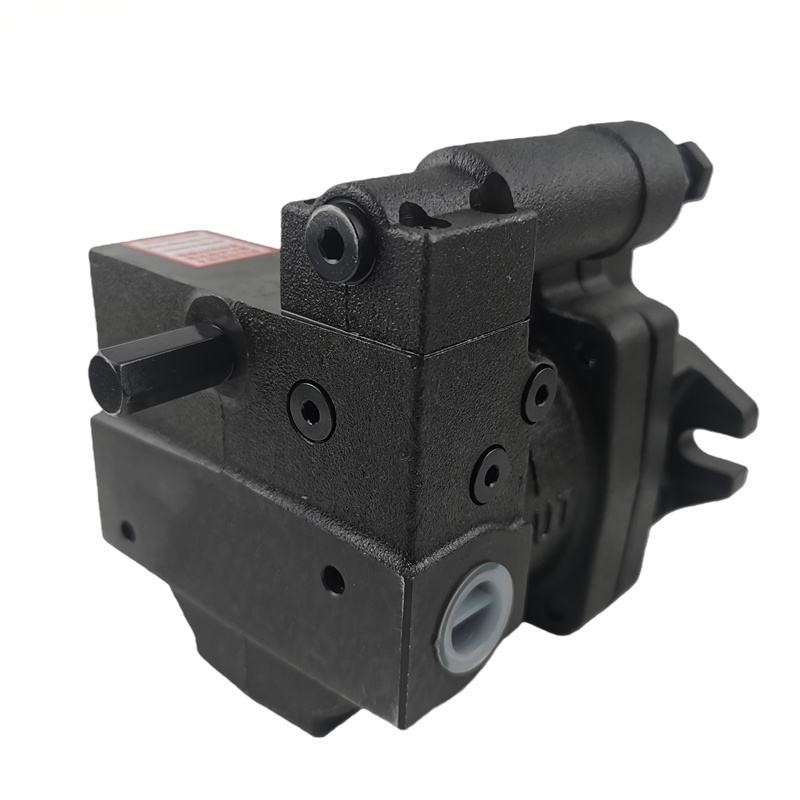

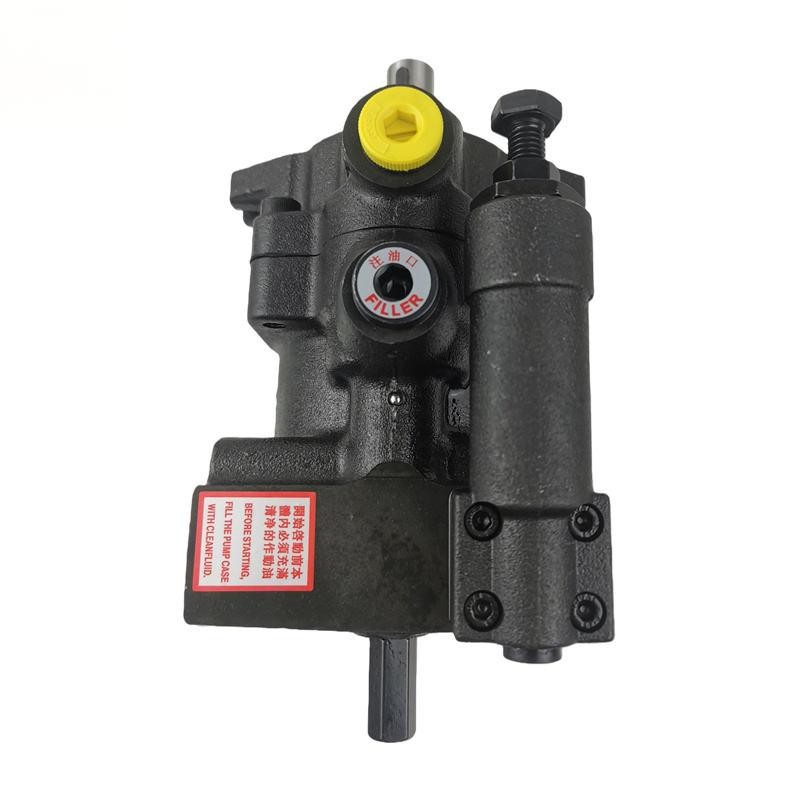

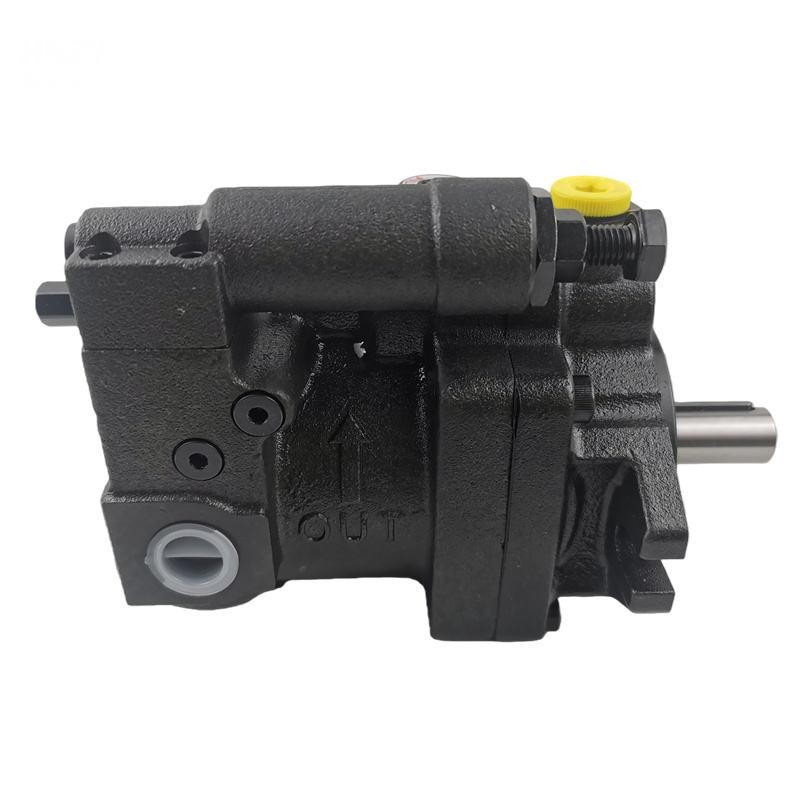

P Series Variable Displacement Axial Piston Pump
P Series variable displacement axial piston pump adopts swash-plate structure with stepless adjustable displacement. It is mainly designed for closed-loop hydrostatic transmission systems and also compatible with partial open-loop circuits. Compact pump body with high pressure resistance. Precisely machined internal friction pairs ensure high volumetric efficiency. Various displacement control options with sensitive response, good shock and vibration resistance. It adapts to harsh working conditions of construction machinery and mining equipment to supply stable pressure oil for hydraulic systems.
| Product Parameters | |||||||
| Size NG | 6 | 7 | 8 | 11 | 14 | 24 | 30 |
| Displacement(cm³/rev) | 98.3 | 118.8 | 131.1 | 180.3 | 229.5 | 403.2 | 501.5 |
| Speed (rpm) | 3000 | 3000 | 2100 | 2400 | 2400 | 2100 | 1800 |
| Flow (L/min) | 294.9 | 356.4 | 275.31 | 432.72 | 550.8 | 846.72 | 902.7 |
| Nominal pressure(bar) | 350 | ||||||
| Maximum pressure(bar) | 420 | ||||||
| Weight(approx.)(kg) | 80-135 | 80-135 | 80-135 | 145-240 | 145-240 | 340-375 | 340-375 |
| Application field | Used in large hydraulic stations,such as power plants, paper mills,shipyards,etc. | ||||||
Key Advantages
- Stepless variable adjustment with strong working condition
adaptability - High-pressure and heavy-duty design with long service life
- Multiple control modes for wider adaptability
- High volumetric efficiency with remarkable energy saving effectCompact and stable structure with low operation and
maintenance
cost
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
