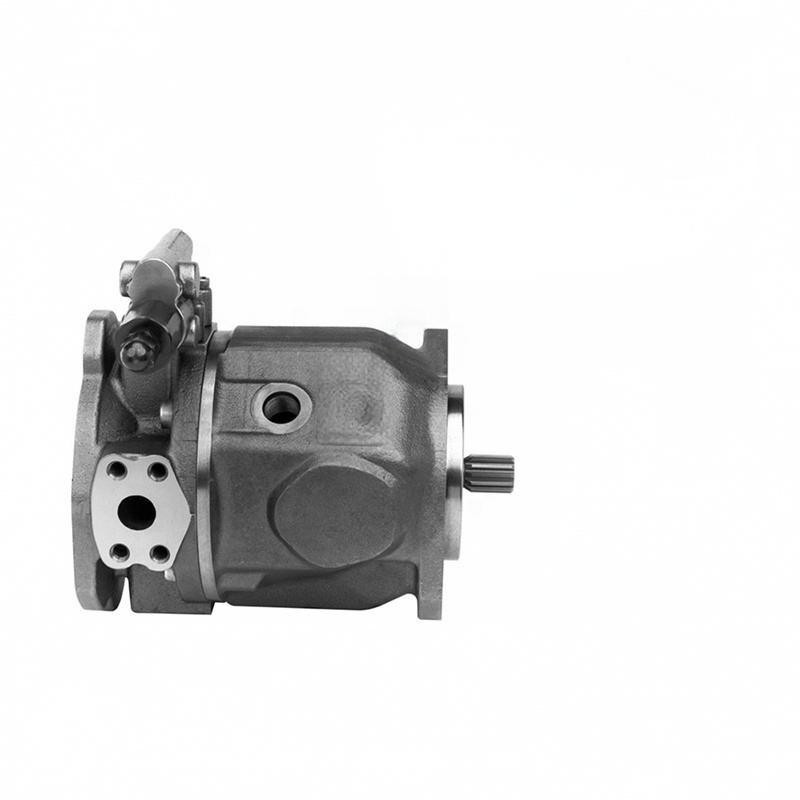

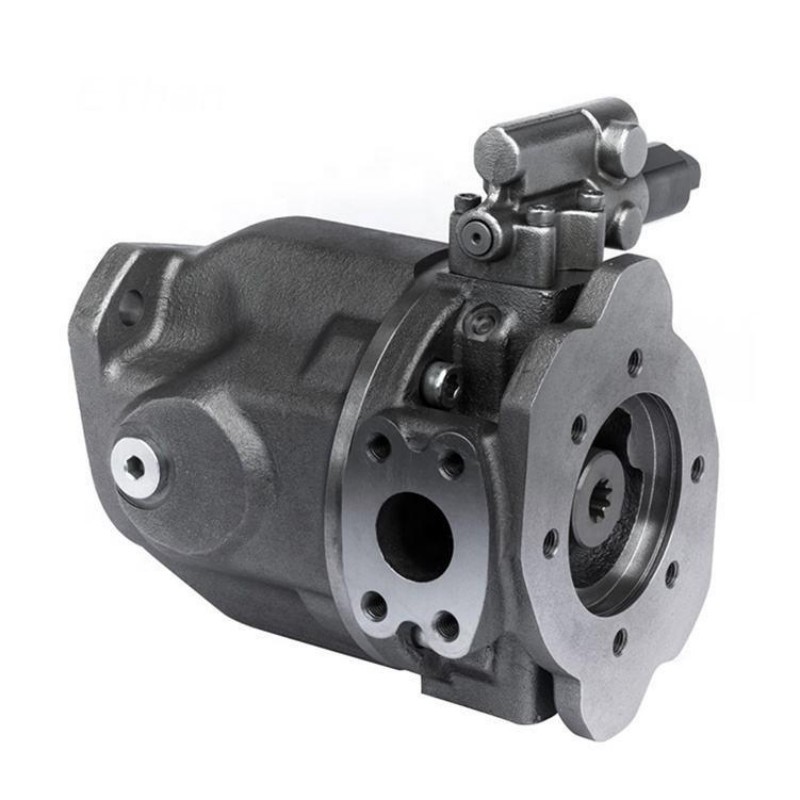

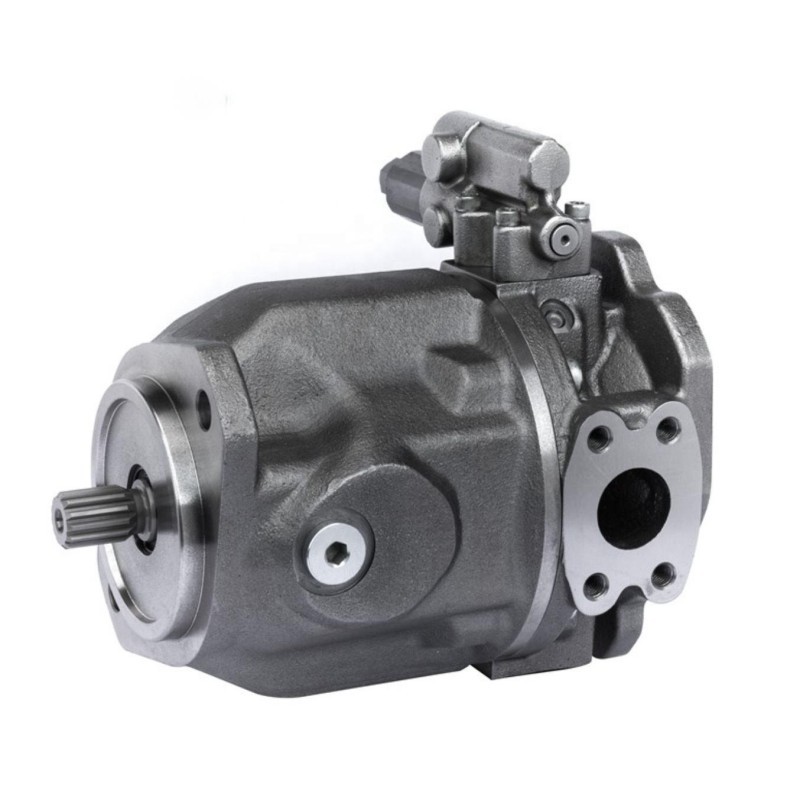

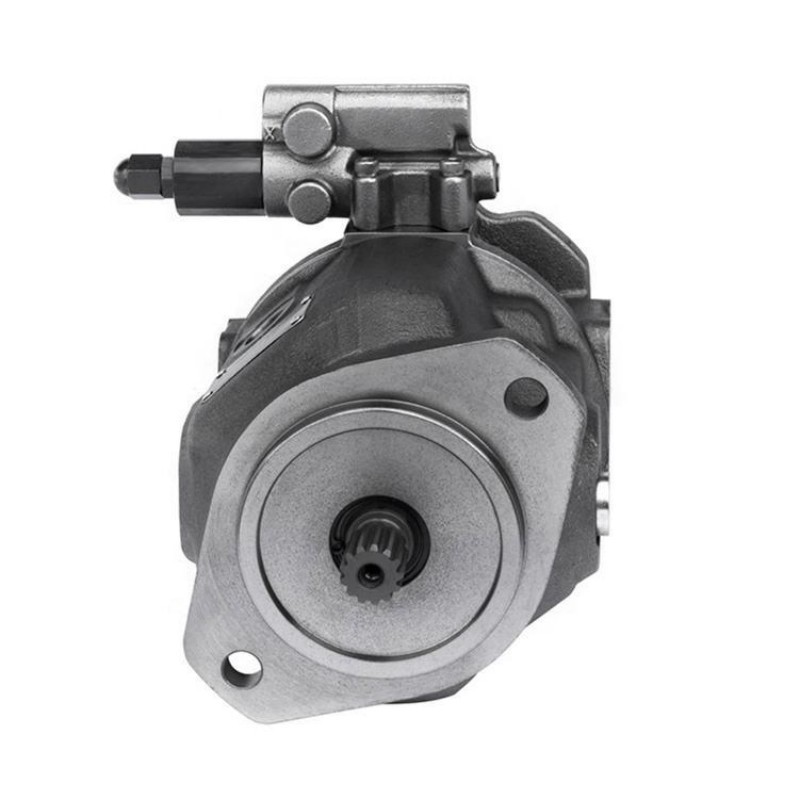

A1VO Series Variable Displacement Axial Piston Pump
A1VO series swash plate variable displacement axial piston pump is developed for open-loop hydrostatic circuits of small mobile machinery. Displacement covers 18 28 35cc per revolution. Rated pressure is 250 bar and peak pressure reaches 280 bar. Stepless flow adjustment is achieved by changing swash plate angle. It supports pressure control load sensing and electro-hydraulic control modes. Equipped with universal through-drive interface for connecting extra pump units. Compact integrated controller delivers excellent suction performance and low running noise. It reduces energy consumption compared with traditional fixed displacement gear pumps and serves as ideal energy-saving upgrade for small mobile equipment, widely applied in small agricultural machinery forklift fan drive and other mobile hydraulic scenarios.
Key Advantages
- Stepless flow adjustment realizes system energy saving
- Compact integrated structure fits limited installation space
- Universal through drive supports multi pump combination expansion
- Multiple control forms meet working conditions of mobile machinery
| Product Parameters | |
| Size NG | 35 |
| Displacement(cm³/rev) | 35 |
| Speed (rpm) | 3000 |
| Flow (L/min) | 105 |
| Nominal pressure(bar) | 250 |
| Max.pressure (bar) | 280 |
| Weight (approx.)(kg) | 16.9 |
| Application field | Hydraulic systems used in agriculture and small tractors |
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
