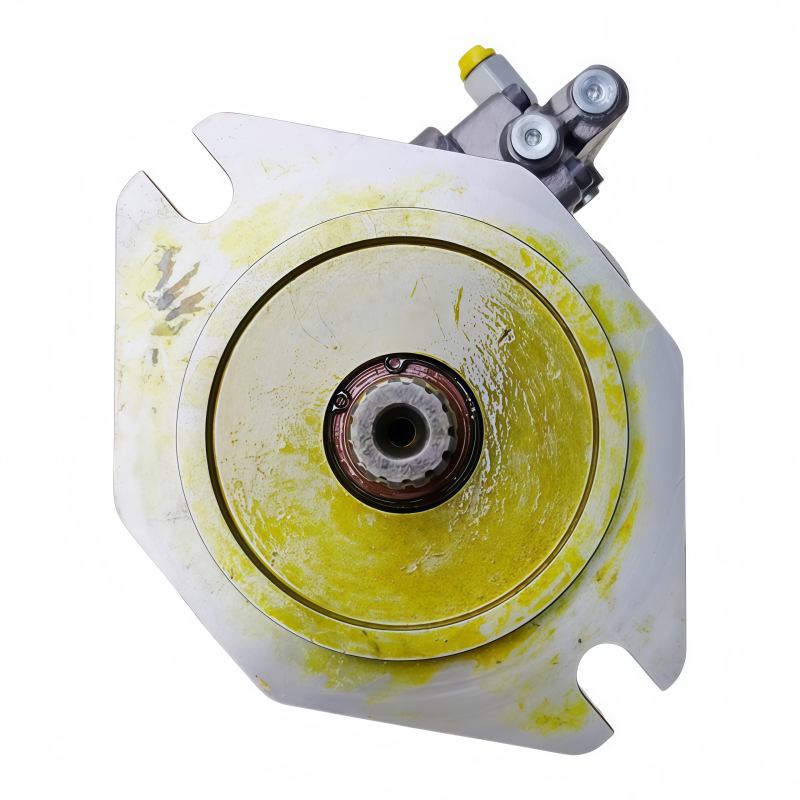

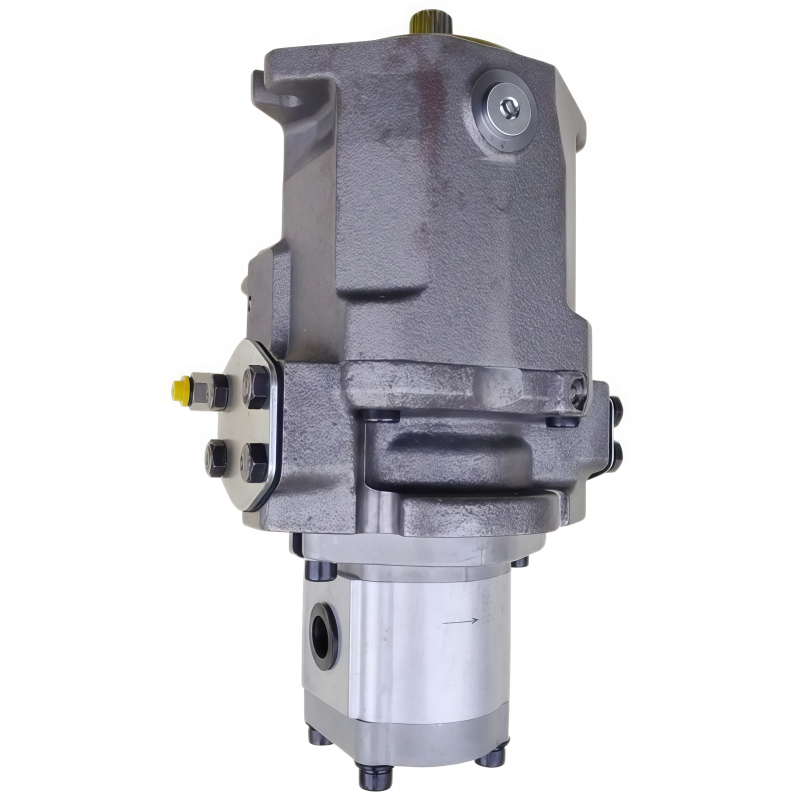

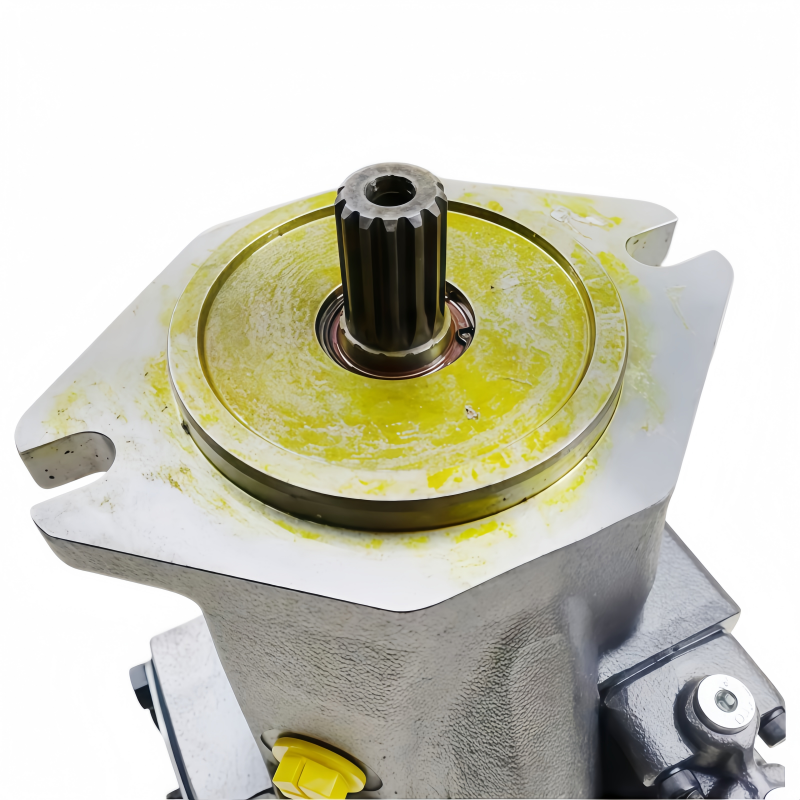

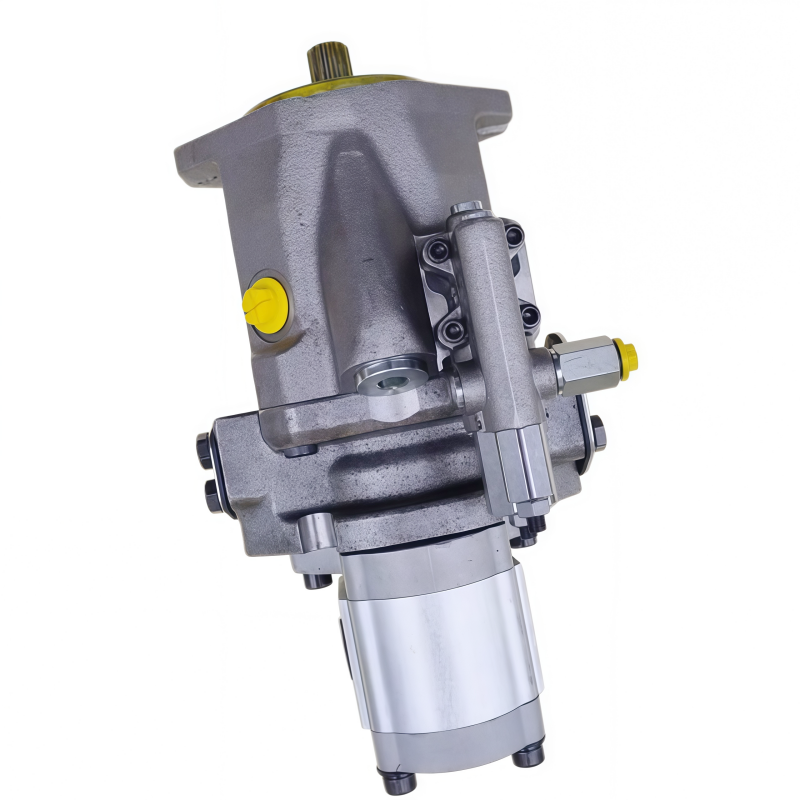

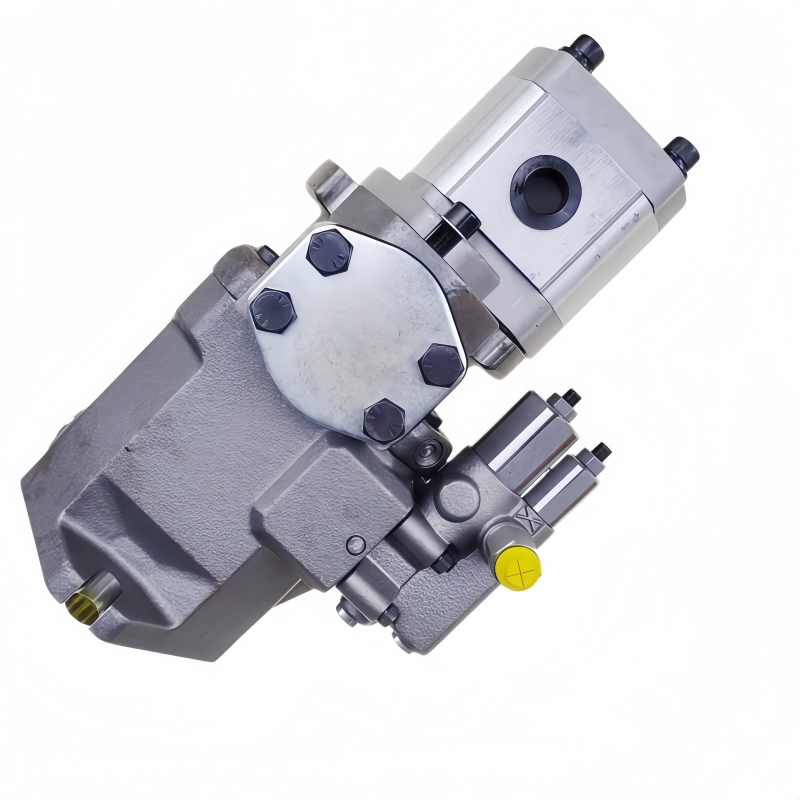

A10VNO Series Variable Displacement Axial Piston Pump
A10VNO series is swash plate type variable displacement axial piston pump designed for open loop hydrostatic transmission. It includes version 52 and 53 with displacement options of 28 45 63 85cc per revolution. Rated pressure is 210 bar and peak pressure reaches 250 bar. Stepless flow adjustment is realized by changing swash plate angle. Multiple control options are available including pressure control and load sensing pressure flow compound control. Drive shaft can bear radial and axial load. It delivers excellent suction performance low operating noise and compact structure. It serves as ideal upgrade replacement for fixed displacement pumps and widely used in agricultural machinery fan drive and medium low pressure small and medium industrial hydraulic equipment.
Key Advantages
- Swash plate structure enables stepless flow adjustment
- Compact body delivers excellent power to weight ratio
- Multiple control modes adapt to various hydraulic working conditions
- Drive shaft can withstand combined radial and axial load
| Product Parameters | ||||
| Size NG | 28 | 41 | 63 | 85 |
| Displacement (cm³/rev) | 28 | 41 | 63 | 85 |
| Speed (rpm) | 3200 | 2900 | 2700 | 2700 |
| Flow (L/min) | 90 | 119 | 170 | 230 |
| Nominal pressure(bar) | 210 | |||
| Max.pressure(bar) | 250 | |||
| Weight (approx.)(kg) | 11.5 | 14 | 18 | 22 |
| Application field | Used in agriculture,industry,forestry and other fields | |||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
