Mini HMM Hydraulic Motor | High Pressure Series/Parallel Operation
Product Description

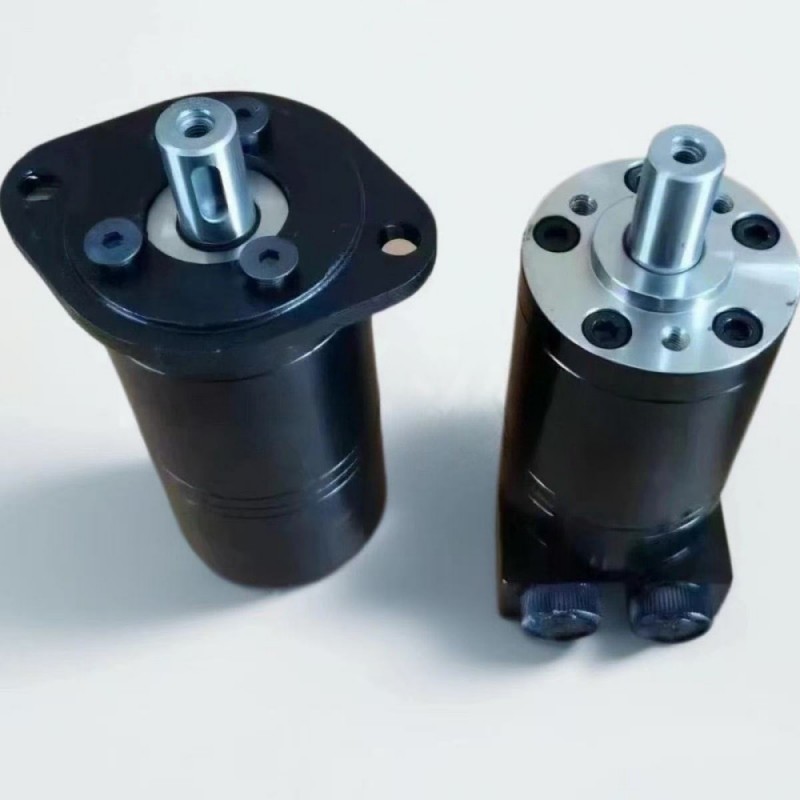

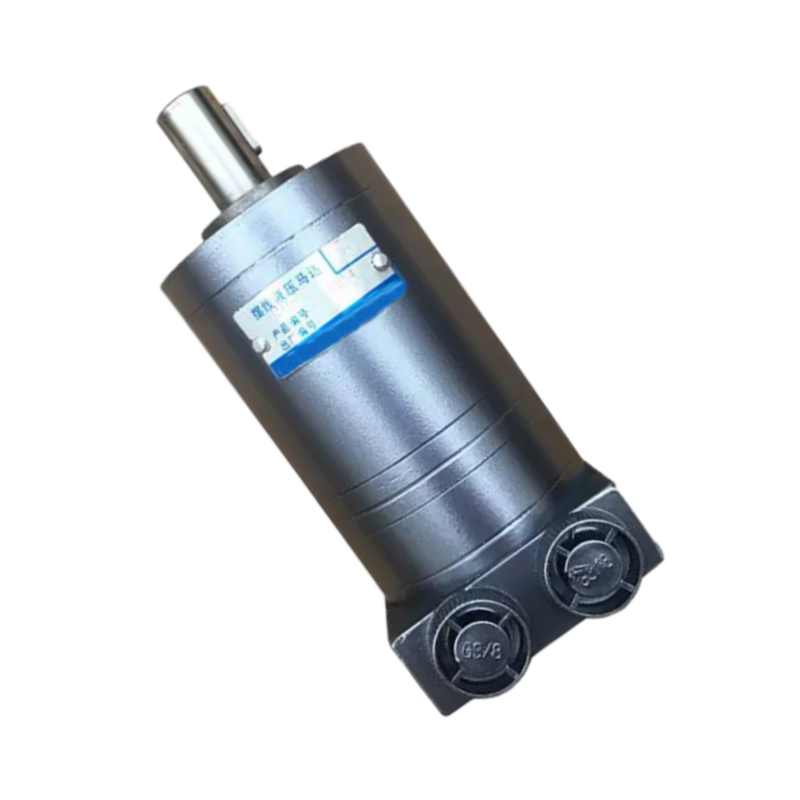

The HMM series hydraulic motor is a miniature shaft-distributed orbital motor. Adopting precision pinned rotor-stator structure and high-precision oil distribution technology, it features compact structure and light weight. Available in multiple displacement specifications, this motor adapts to high-pressure working conditions and supports series and parallel connection. It realizes smooth forward and reverse rotation without impact. With outstanding low speed and high torque performance, it fits limited installation spaces perfectly. Widely used in construction machinery, agricultural equipment, conveyors, injection molding machines, fishing equipment and other fields, it is the ideal choice for hydraulic drive of small machinery.
Main Specification
| (ml/r)Displacement | 8 | 12.5 | 20 | 32 | 40 | 50 | |
| (L PM) Flow | Continuous | 16 | 20 | 20 | 20 | 20 | 20 |
| Intermittent | 20 | 25 | 25 | 25 | 25 | 25 | |
| (RPM) speed | Continuous | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| Intermittent | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| (Mpa) pressure | Continuous | 10 | 10 | 10 | 10 | 9 | 7 |
| Intermittent | 14 | 14 | 14 | 14 | 14 | 14 | |
| (N*m) Torque | Continuous | 11 | 16 | 25 | 40 | 45 | 46 |
| Intermittent | 15 | 23 | 35 | 57 | 70 | 88 | |

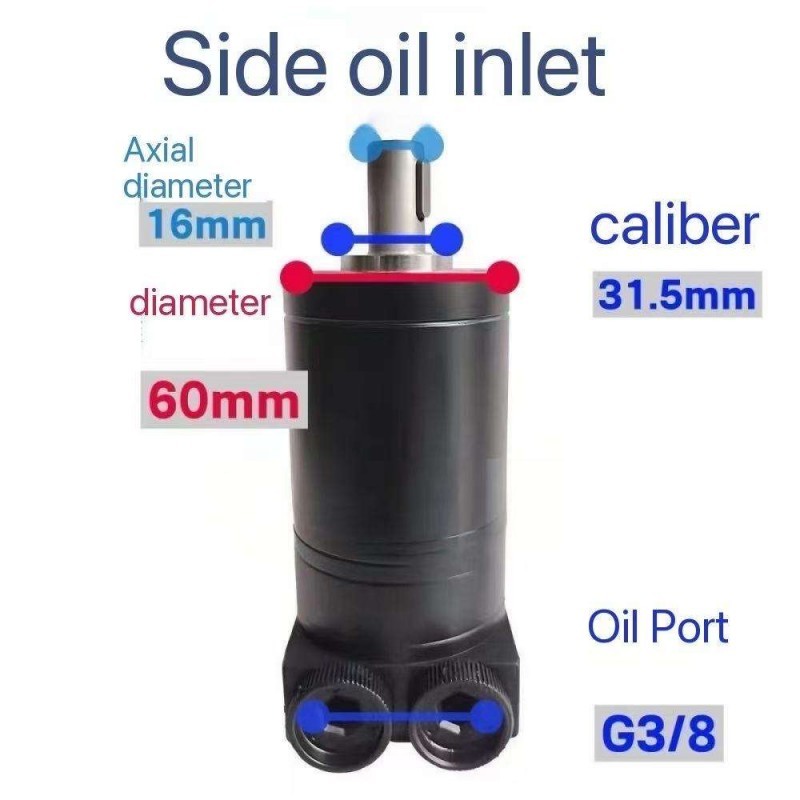

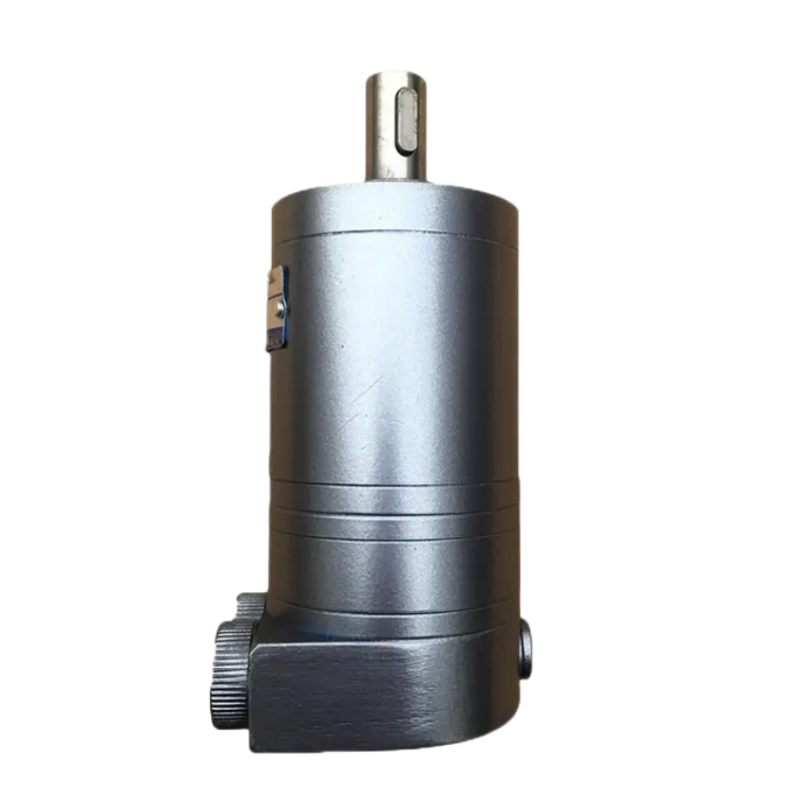

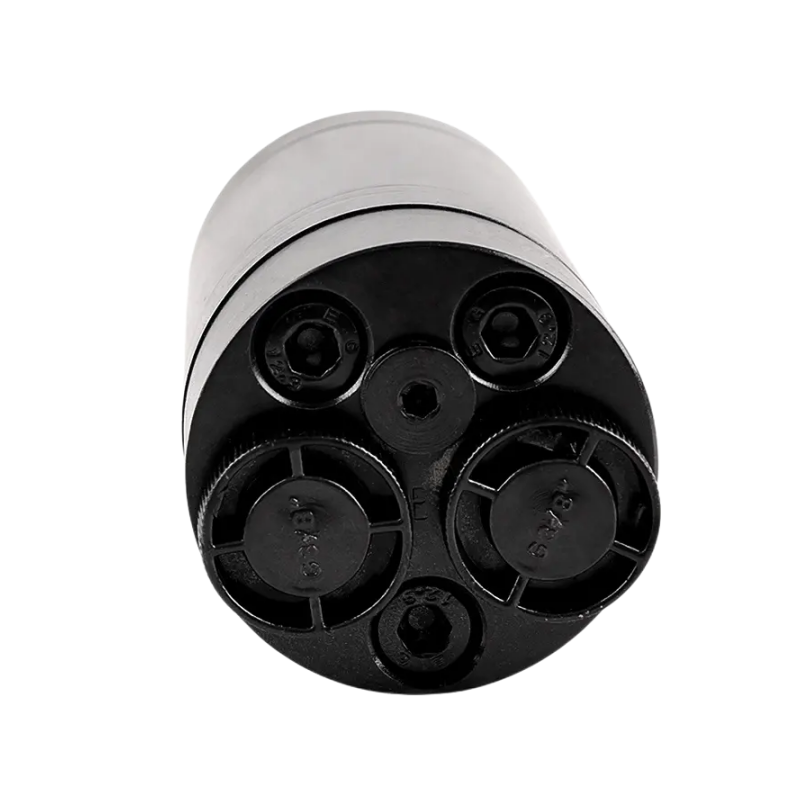

Standard Displacement: 8ml/r, 12.5ml/r, 20ml/r, 32ml/r, 40ml/r, 50ml/r Rated Working Pressure: 16MPa ~ 21MPa Maximum Rotational Speed: 400rpm ~ 2150rpm (varies by displacement) Output Torque: 15N·m ~ 88N·m Oil Port Type: Side port, Bottom port Mounting Flange: Round flange, Rhombus flange Output Shaft: Multiple types available
Application Fields
Construction machinery, agricultural machinery, conveying equipment, injection molding machines, fishing machinery, small automatic equipment, sanitation equipment and more.
We provide complete selection and customization services for HMM series hydraulic motors with full specifications and sufficient stock. Welcome to contact us for cooperation!
