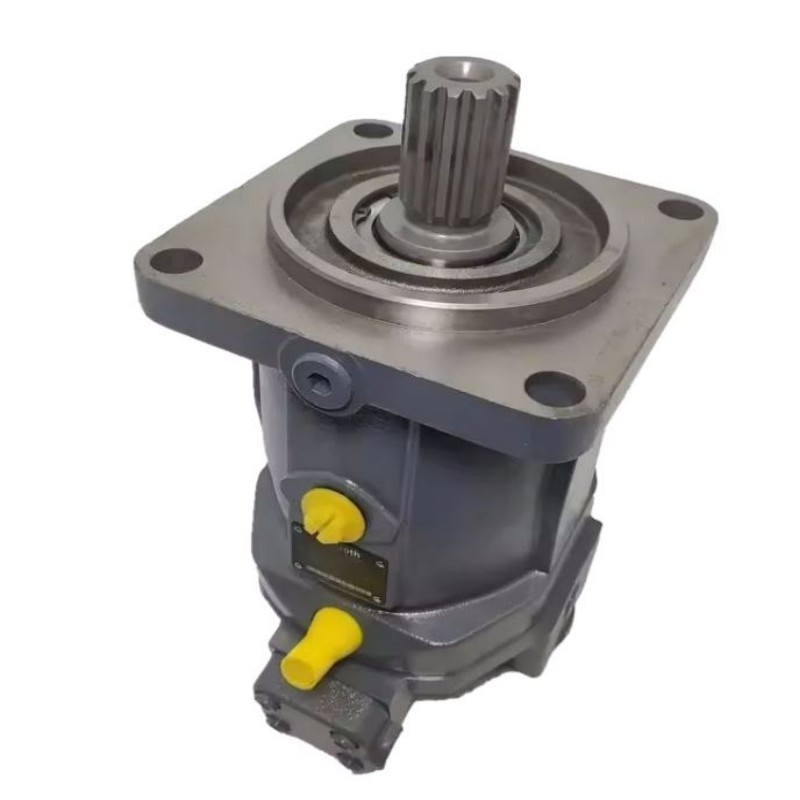

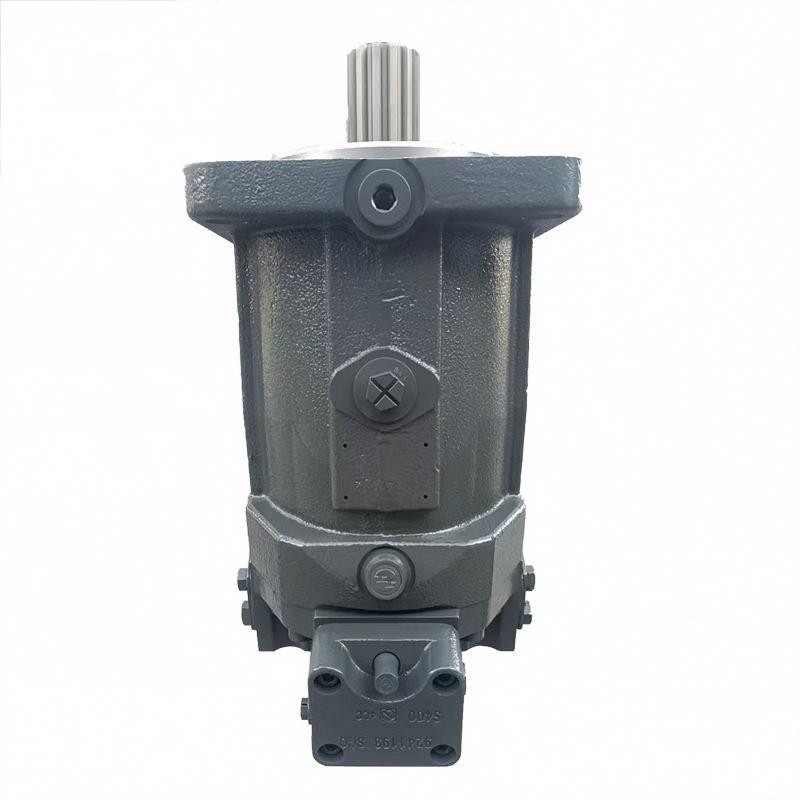

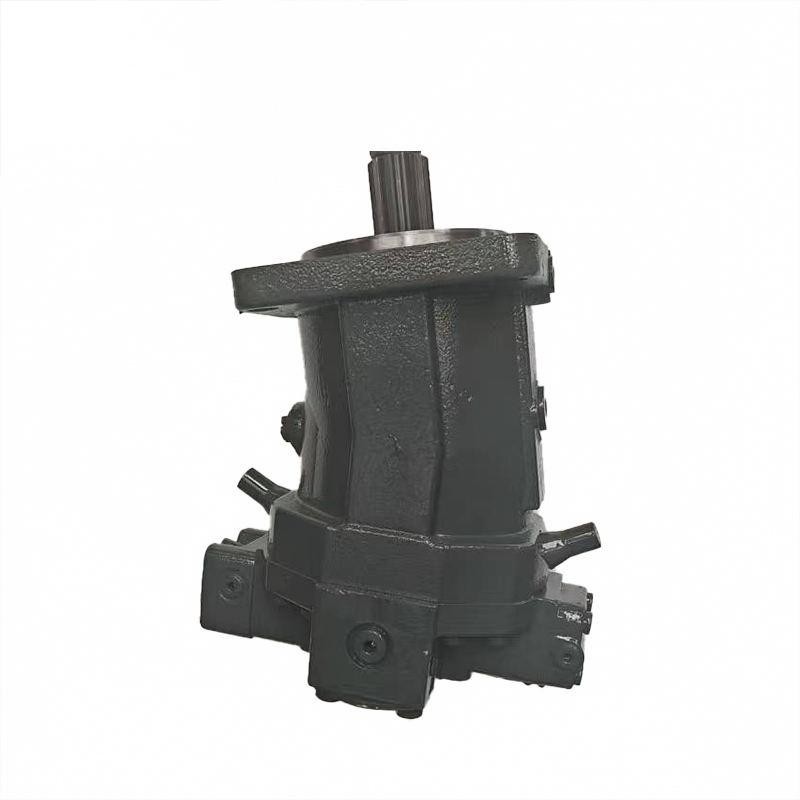

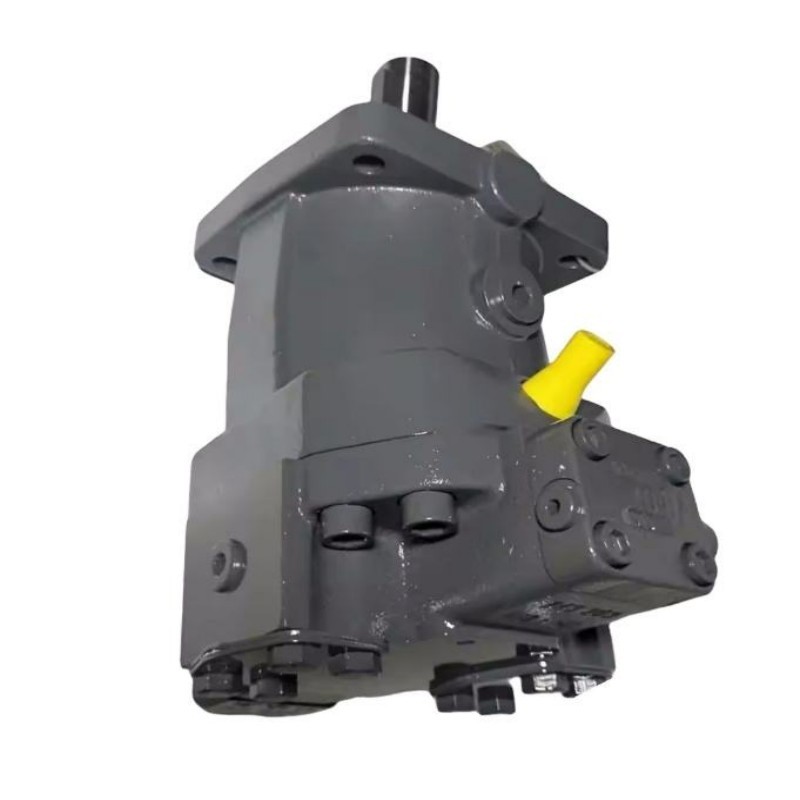

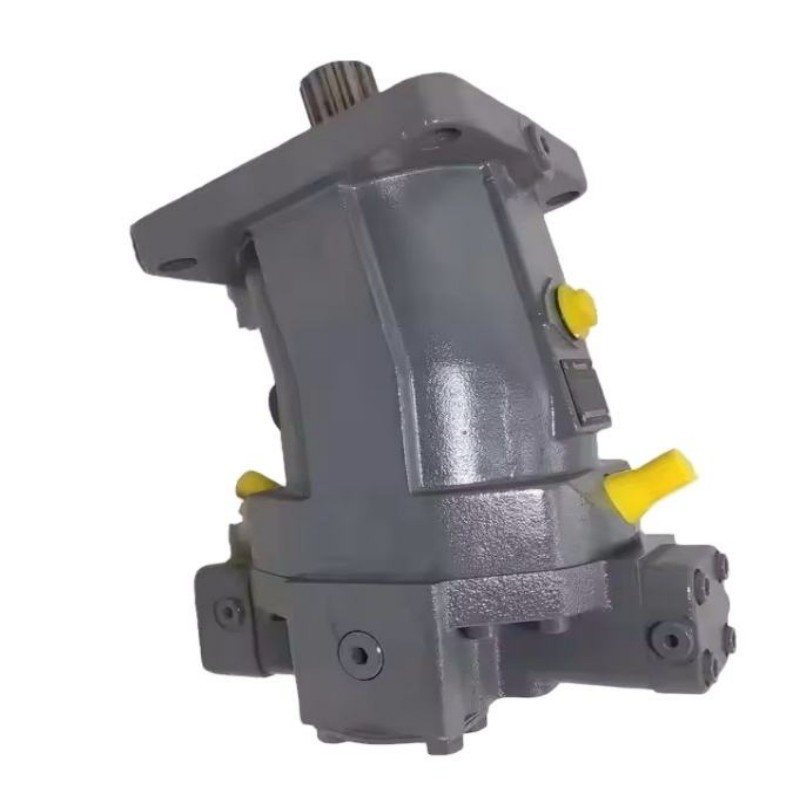

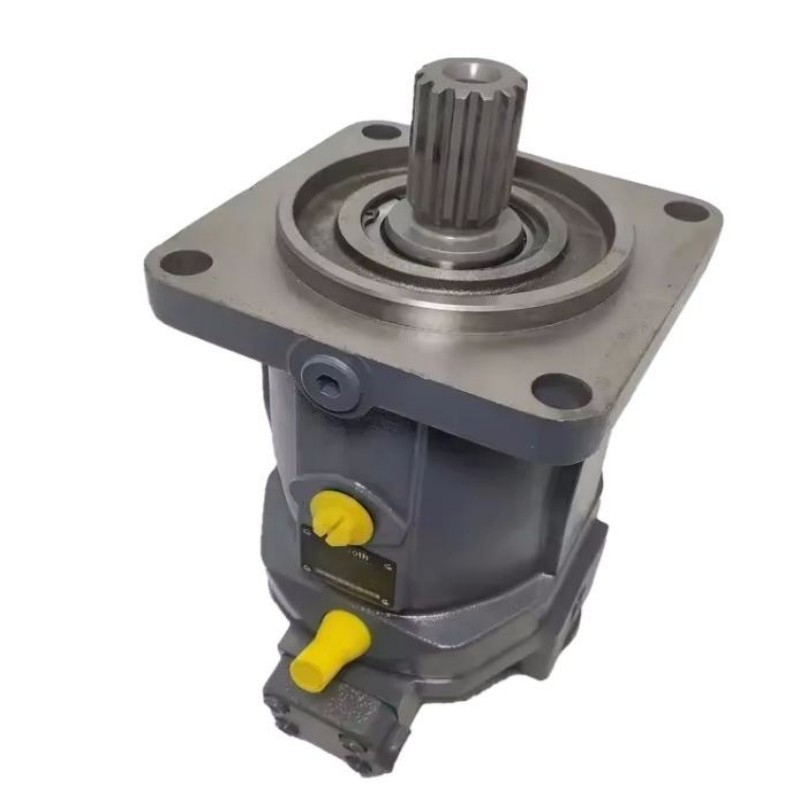

AA6VM Series Bent-Axis Axial Piston Variable Motor

AA6VM Series Bent-Axis Axial Piston Variable Motor
AA6VM bent‑axis axial piston variable motor features stepless displacement adjustment down to zero,multiple control options,high pressure resistance and high power density. Suitable for open and closed hydraulic circuits,widely used in engineering machinery,mining and mobile driving equipment,interchangeable with original imported motors

Product Details

Product Tags

Product Description

AA6VM series is a high-pressure variable motor with bent-axis tapered piston structure. It fits both open and closed hydraulic circuits. It realizes stepless displacement adjustment from maximum to zero, delivering both high-speed and high-torque output. It supports multiple control modes for mobile machinery and industrial hydrostatic drive systems with stable performance and high power density.

Axial Piston Variable Motor

                  Product  Parameters
Size NG28 55 80 107 140 160 200 250 355 500 1000
Displacement(cm³/rev)28.1 54.8 80 107 140 160 200 250 355 500 1000
Speed    (rpm)5550 4450 3900 3550 3250 3100 2900 2700 2240 2000 1600
Nominal pressure (bar)400 350
Max.pressure(bar)450 400
Torque p=350bar(Nm)179 349 509 681 891 1091 1273 1391 1978 2785 5571
Weight(approx.)(kg)16 26 34 47 60 64 80 100 170 210 430
Application field

Used in engineering machinery,agricultural machinery,forestry
machinery,mining equipment,etc.,hydraulic travel,and working
parts that require high-speed rotation.

  • High pressure capability with stable performance

  • Low noise and low vibration operation

  • High volumetric efficiency

  • Long service life and reliable operation

  • Suitable for continuous and heavy-duty applications

Applications

  • Mining & metallurgical heavy-duty machinery

  • Construction & road machinery

  • Agricultural mobile equipment

  • Hydraulic rotary drives & winches

  • Partial heavy die-casting and press mobile actuators

Main Products



Packaging & Shipping


Our Advantages

1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions

Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

FAQ


Q: What's the lead time for orders?
A: Standard models ship in 7-15 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
