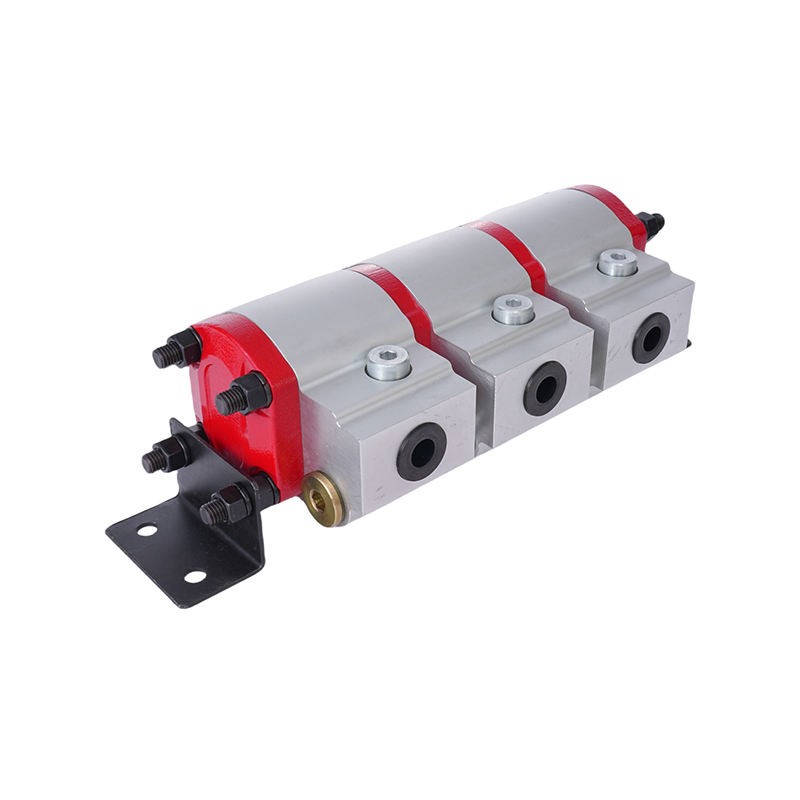

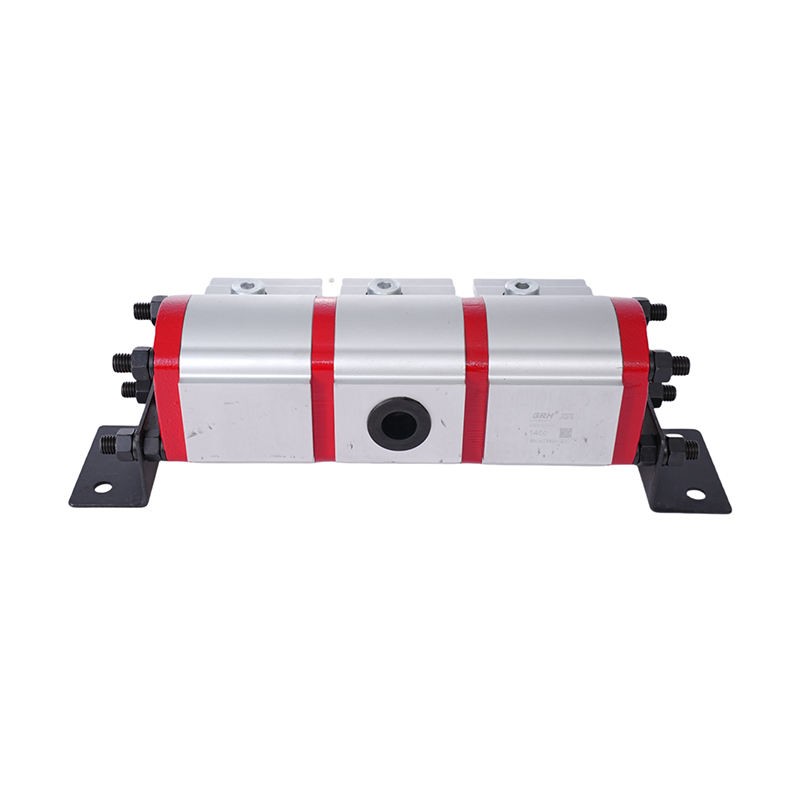

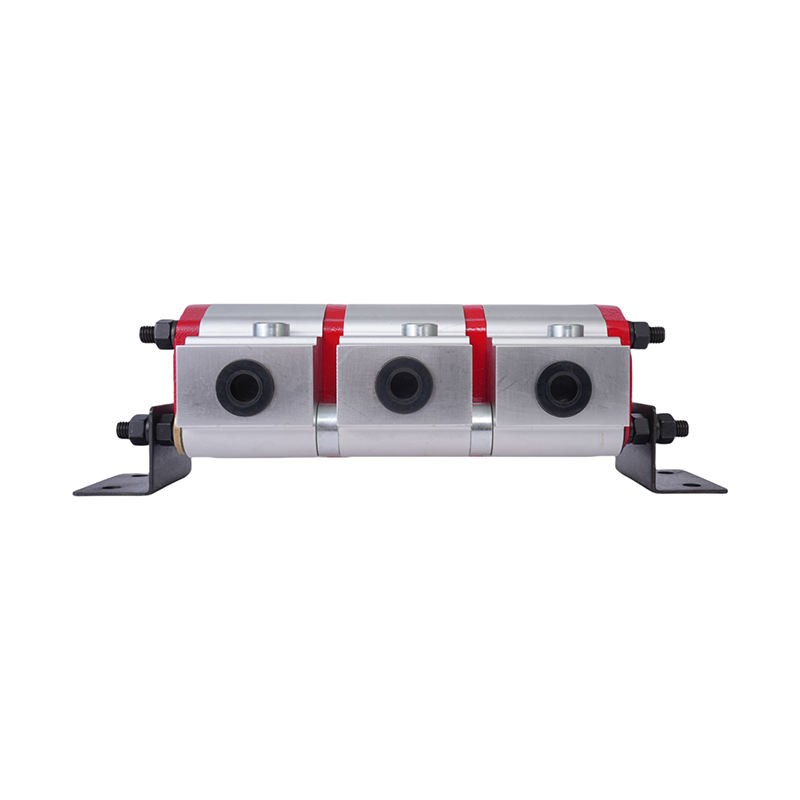

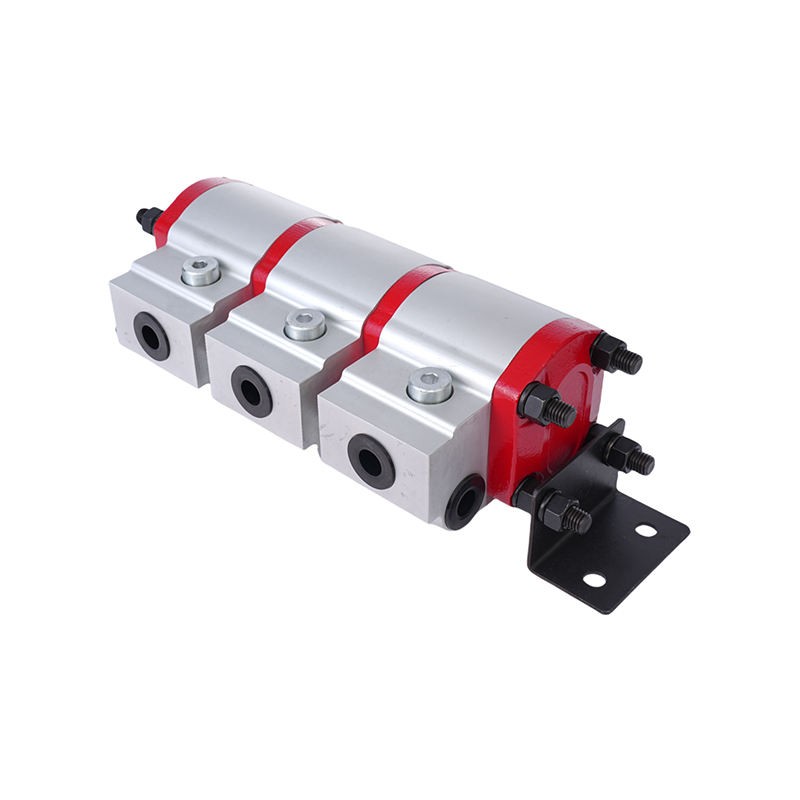

FMA Series Gear Flow Divider (Synchronous Motor)
FMA series gear flow divider adopts coaxial precision gear structure to evenly distribute hydraulic flow mechanically, realizing synchronous lifting and traveling of multiple cylinders and hydraulic motors. Available in 2/4/6 sections. Models with overflow compensation valve automatically correct synchronization deviation. Rated working pressure 20MPa, max pressure 25MPa, widely used for synchronous hydraulic systems of construction machinery, agricultural equipment and automatic production lines.
Model | single outlet Displacement (ml/r) | 7 5 0 r p m Minimum inlet flow(I/min) | 1 5 0 0 r p m standard inlet flow(I/min) | 3 0 0 0 r p m Maximun inlet flow(I/min) | Miximur outlet (Mpa) |
| FMA-2*1.8 | 1.88 | 2.82 | 5.64 | 11.26 | 25 |
| FMA-2*2.1 | 2.17 | 3.26 | 6.51 | 13.02 | |
| FMA-2*3 | 3.18 | 4.77 | 9.54 | 19.08 | |
FMA-2*4.2 | 4.43 | 6.51 | 13.02 | 26.04 | |
FMA-2*5 | 4.89 | 7.34 | 14.67 | 29.34 | |
FMA-2*6.3 | 6.37 | 9.56 | 19.11 | 38.22 | |
FMA-2*8.8 | 8.82 | 13.23 | 26.44 | 52.92 | |
| FMA-4*2.1 | 2.17 | 6.51 | 13.02 | 26.04 | 21 |
FMA-4*3 | 3.18 | 9.54 | 19.08 | 36.18 | |
FMA-4*4.2 | 4.43 | 13.02 | 26.04 | 52.08 | |
FMA-4*5 | 4.89 | 14.67 | 29.34 | 58.68 | |
| FMA-4*6.3 | 6.37 | 19.11 | 38.22 | 76.44 | |
FMA-4*8.8 | 8.82 | 26.46 | 52.92 | 105.84 | |
| FMA-6*2.1 | 2.17 | 9.78 | 19.53 | 39.06 | 16 |
Core Advantages
- High Synchronization Precision: Integrated coaxial gear structure maintains steady synchronous performance with tiny deviation under different load pressure
Optional Overflow Compensation Design: Built-in compensation valve automatically adjusts stroke error to stop cylinder skew and mechanical jamming
Heavy Duty Pressure Resistance: Die cast aluminum shell supports long term operation under peak pressure up to 25MPa with outstanding wear and impact resistance
Flexible Modular & Multi-function Design: 2,4,6 sections optional; bidirectional flow for flow division and flow collection to simplify hydraulic pipeline layout
Low Loss & Easy Maintenance: High volumetric efficiency cuts energy consumption; standard SAE,NPT,G ports and integrated mounting base for quick installation and service
Applications
- Widely matched with construction machinery, agricultural equipment, automatic hydraulic presses and sanitation special vehicles to realize synchronous lifting and telescopic control of multiple cylinders.
