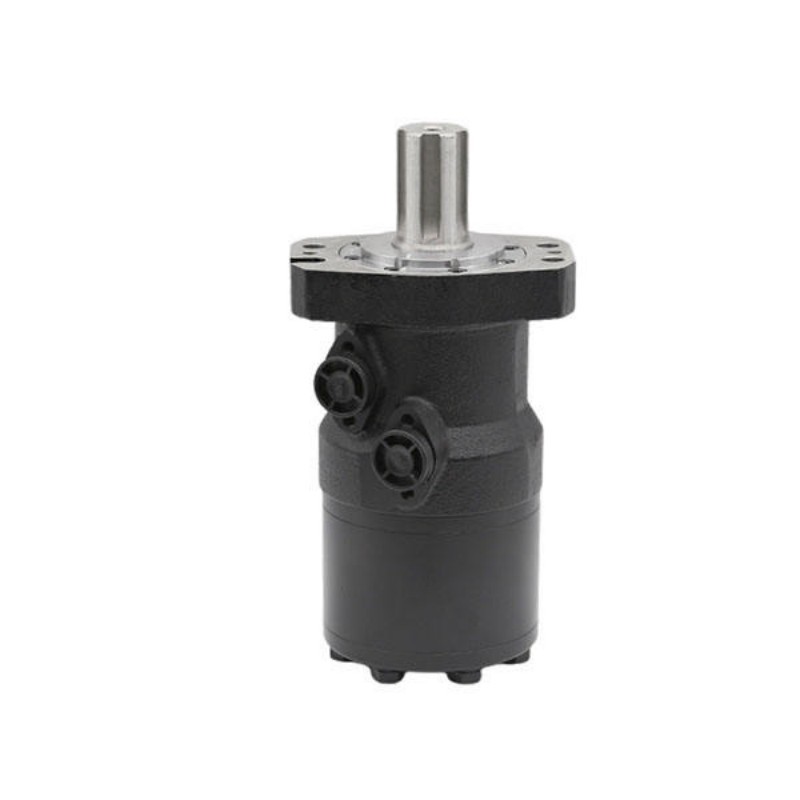

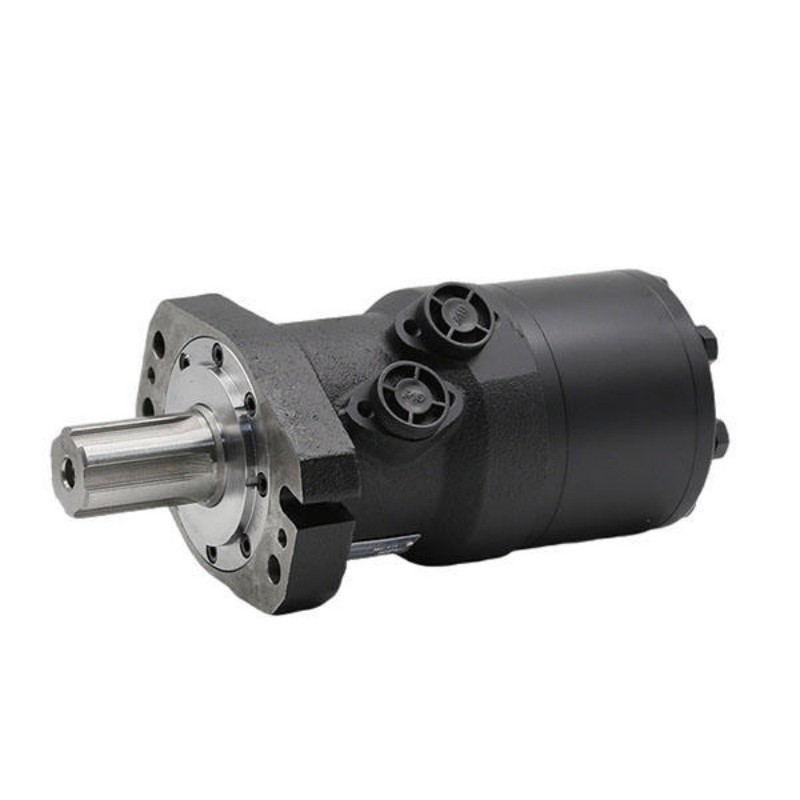

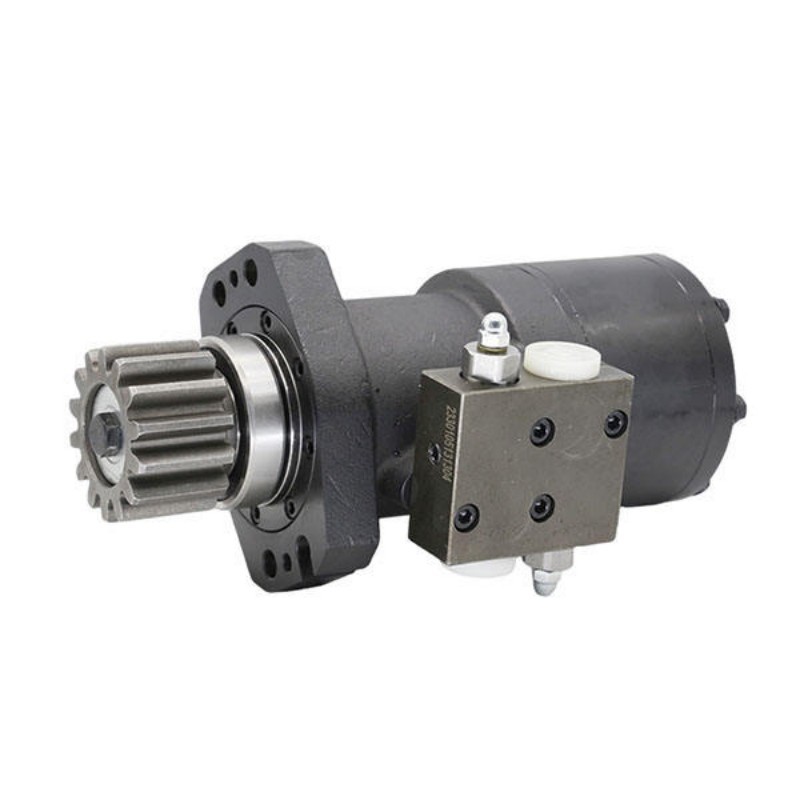

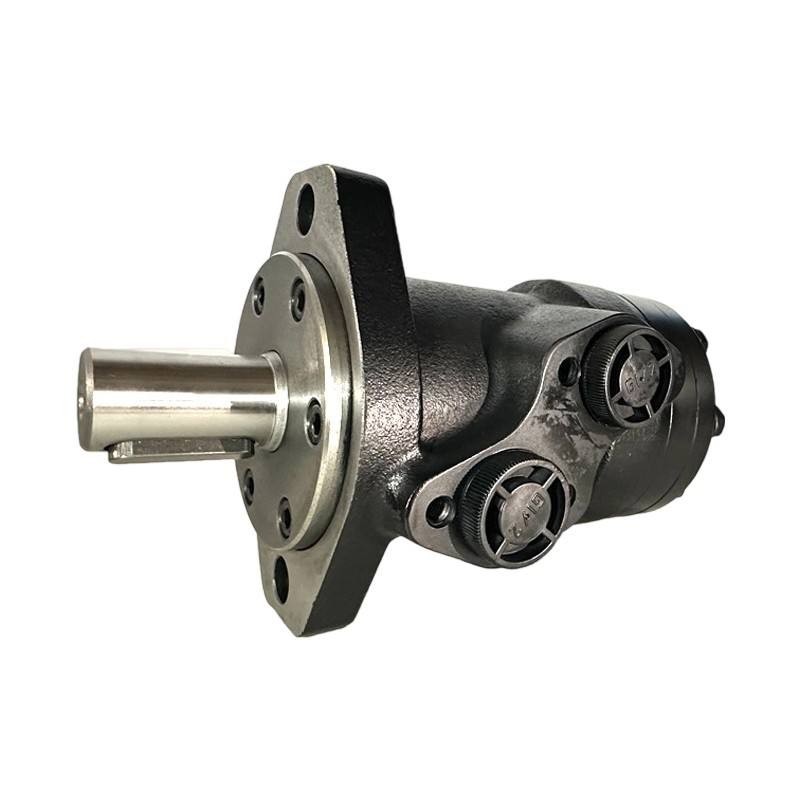

BM4 Orbital 245/310/390/500/630/800 Hydraulic Motor | Low Speed High Torque Hydraulic Motor for Construction Agriculture Injection Molding Machine

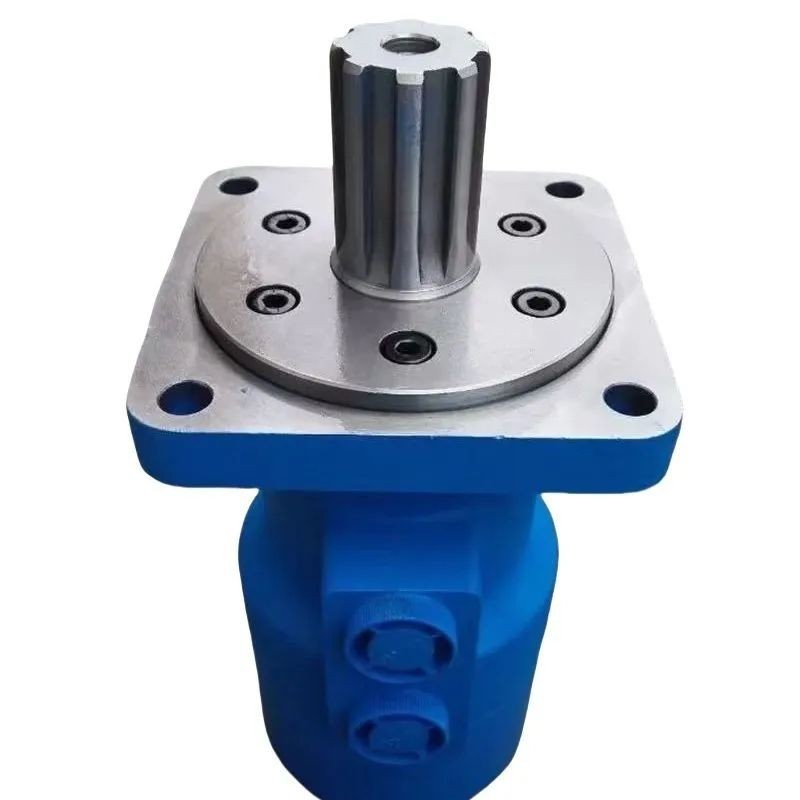

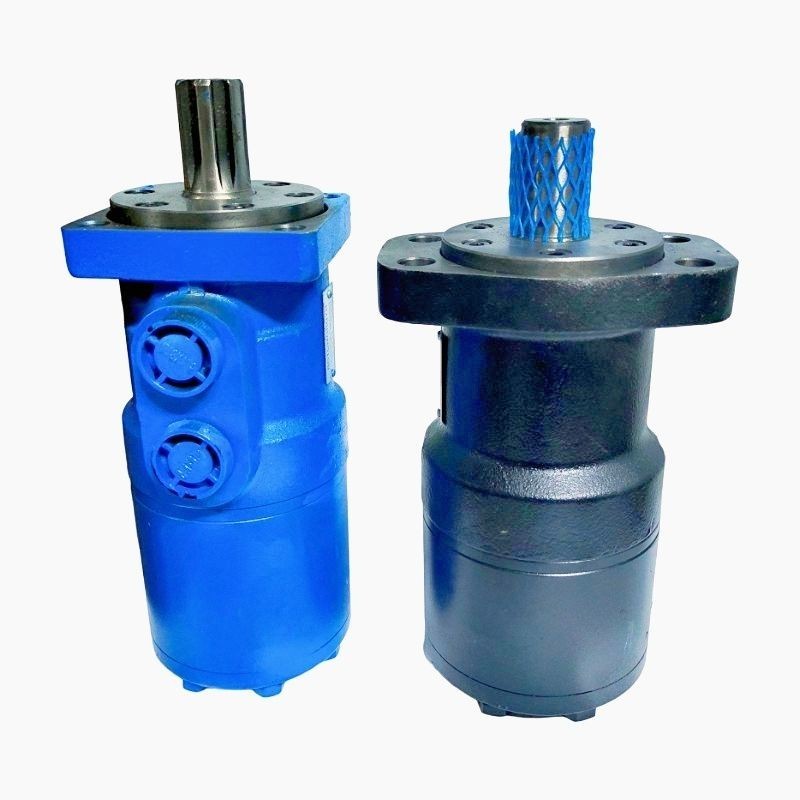

BM4 series orbital hydraulic motor is a mature shaft-distributed low-speed high-torque hydraulic power component. It adopts integrated distribution shaft and needle-mounted gerotor set, supported by double rolling bearings on both ends. Compared with BM3 series, it features larger gerotor size, higher pressure resistance and stronger load capacity.Displacement ranges from 160 to 1250 ml/r, max continuous working pressure reaches 14MPa, intermittent peak pressure up to 15-25MPa, output torque from 194 to 2650 N·m, perfectly suited for all low-speed heavy-duty transmission applications. Equipped with dedicated high-pressure rotary shaft seal, the motor bears high back pressure and allows series or parallel connection of multiple units. It realizes smooth forward/reverse switching, no crawling at ultra-low speed, and stable full-range operation at both low and high RPM.Compact and lightweight body enables direct connection with winches, drive wheels, slewing platforms, conveyor screws and other actuators without extra reducers. Multiple connection options are available, including rhombic/square flange, straight/spline output shaft, side/rear oil ports, fully interchangeable with imported equivalent orbital motors.Widely applied in mini construction machinery, agricultural harvesters, fishing net winches, injection molding plasticizing drives, mining traction equipment, sanitation sweepers, lifting hoists, machine tool feed mechanisms and other mobile & stationary industrial hydraulic systems. Low failure rate during long continuous operation with greatly extended service life.
| (ml/r)Displacement | 245 | 310 | 390 | 500 | 630 | 800 | |
| (LPM) Flow | Continuous | 80 | 80 | 80 | 80 | 80 | 80 |
| Intermittent | 100 | 100 | 100 | 100 | 100 | 100 | |
| (RPM) speed | Continuous | 320 | 250 | 200 | 156 | 120 | 106 |
| Intermittent | 390 | 300 | 240 | 200 | 150 | 120 | |
| (Mps) pressure | Continuous | 14 | 14 | 14 | 14 | 12.5 | 10 |
| Intermitten | 15 | 15 | 15 | 15 | 13 | 12 | |
| (N*m) Torque | Continuous | 435 | 556 | 698 | 870 | 997 | 1024 |
| Intermittent | 502 | 664 | 798 | 1058 | 1178 | 1380 | |
Core Advantages
- High Torque & Heavy Load Output
Enlarged gerotor assembly provides stronger torque output and high radial load capacity, suitable for medium and large heavy-duty equipment
Double Bearing Wear-resistant Structure
Supported by double rolling bearings on both ends, anti-impact and anti-vibration, low wear during long continuous operation for longer service life
High Pressure Seal & Leak-proof Design
Equipped with imported high-pressure oil-resistant shaft seal, rated pressure 14MPa, max peak pressure 25MPa, stable under long-term high back pressure conditions
Smooth Low-speed Operation Without Crawling
High-precision shaft distribution structure with high volumetric efficiency, stable operation at ultra-low speed, no jitter during startup, shutdown and commutation
Flexible Series & Parallel Connection
Optimized internal oil circuit allows series and parallel assembly of multiple motors to realize synchronous and split-flow transmission solutions
High Efficiency & Low Energy Loss
Low internal friction resistance with outstanding mechanical and volumetric efficiency, reducing energy consumption of hydraulic system for power saving in long-term operation
Applications
Widely used in low-speed heavy-duty equipment such as construction, agriculture, sanitation, fishery, injection molding and mining machinery
