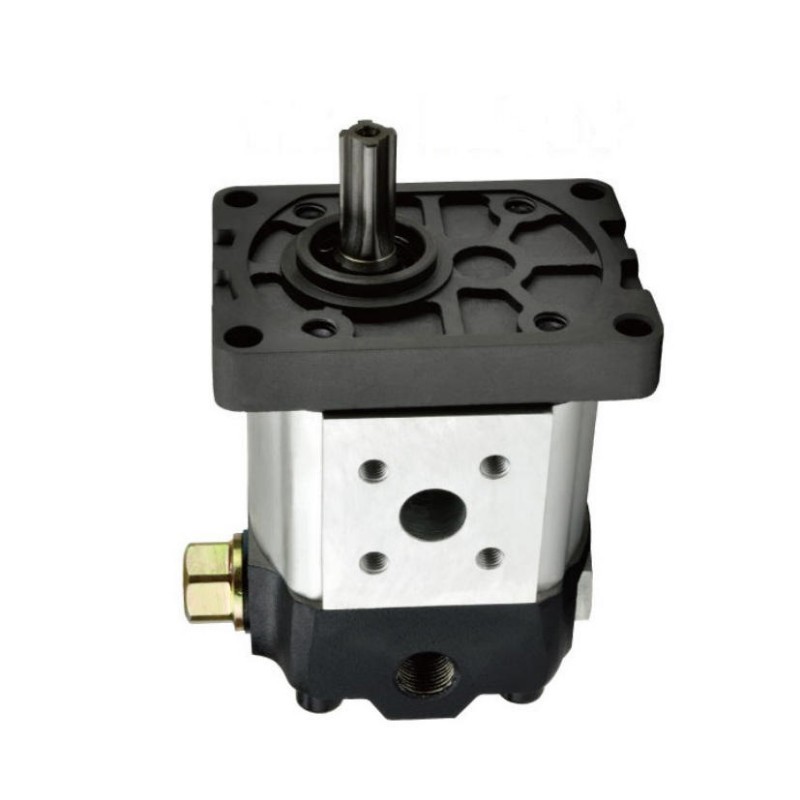

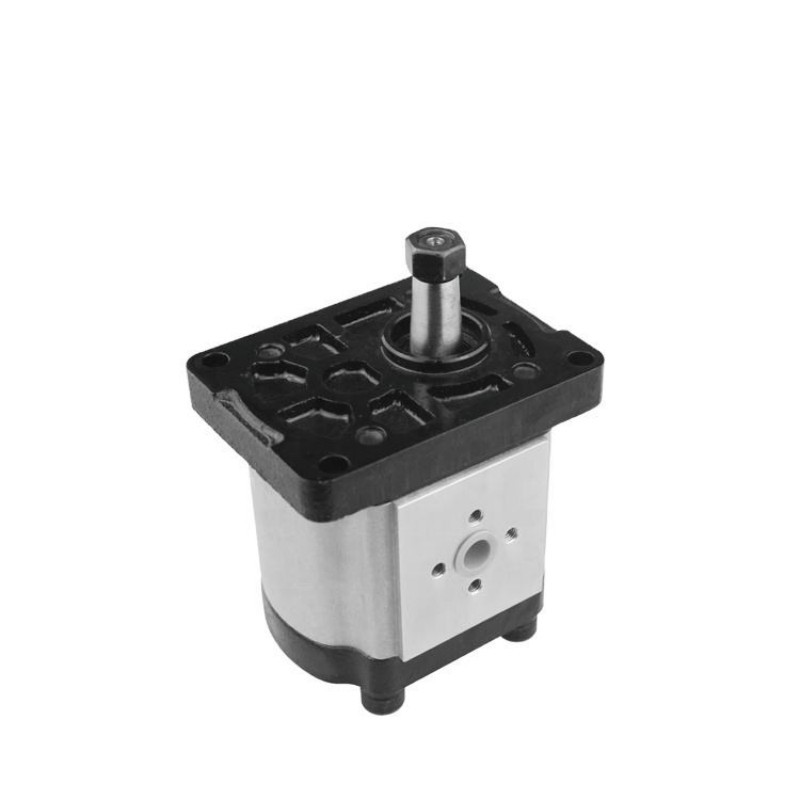

CBT-F300 Hydraulic Gear Pump | Hydraulic Power Pump For Construction Machinery

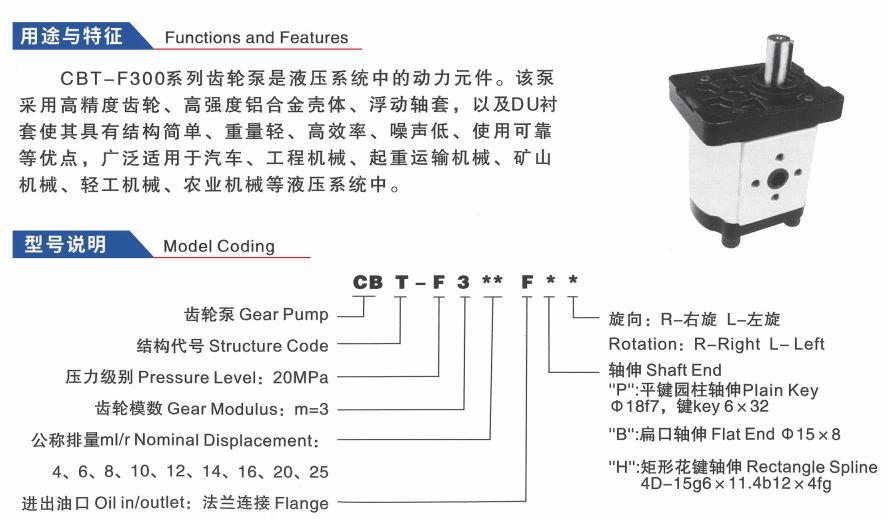

CBT-F300 series high-pressure external gear pump is a core power unit for small & medium hydraulic systems. With aluminum housing, floating end compensation structure, it runs stably at 20MPa rated pressure and max 25MPa. Displacement: 6-25ml/r, speed: 600-3000r/min. Light, low-noise and anti-contamination. Multiple shafts and rotation directions are customizable. Widely used in construction, agricultural and vehicle machinery. All pumps pass strict pressure test with 12-month warranty.

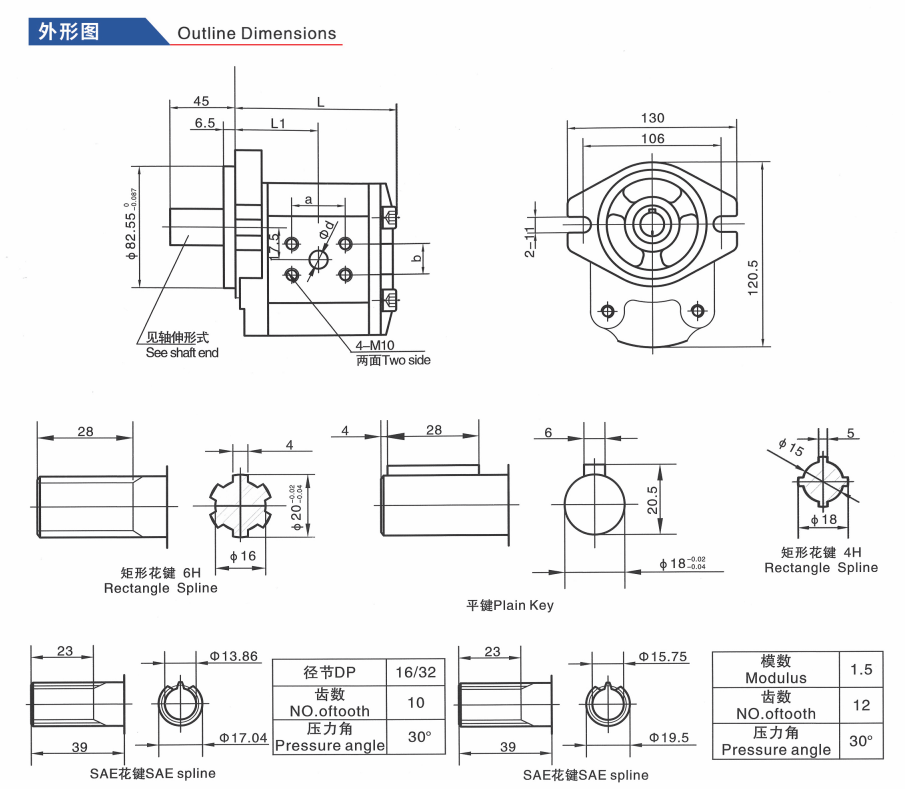

Model | (mlh) Nominal displacement | (Mpa) Pressure | Speed (rpm) | Volumetric efficiency (≥%) | L1 | L | Screw | Flange | Weight (kg) | |||||||||
| D | Inlet | Outlet | ||||||||||||||||
Rated | Max | Min | Rated | Max | Inlet | Outlet | ||||||||||||
| d | a | b | d | a | b | |||||||||||||
| CBT-F410-A*** | 10 | 20 | 25 | 800 | 2500 | 3000 | 92 | 57 | 116 | M22×1.5 Spot faceφ50 | M18×1.5 Spot faceφ45 | 23 | 47.6 | 22.2 | 20 | 47.6 | 22.2 | 3.1 |
| CBT-F412.5-A*** | 12.5 | 58.5 | 118 | 3.2 | ||||||||||||||
| CBT-F416-A*** | 16 | 60.3 | 122 | 3.4 | ||||||||||||||
| CBT-F420-A*** | 20 | 600 | 62.5 | 127 | 3.5 | |||||||||||||
| CBT-F425-A*** | 25 | 93 | 65.8 | 133 | M33×2 Spot faceφ50 | M27×2 Spot faceφ45 | 26 | 524 | 26.2 | 3.7 | ||||||||
| CBT-F432-A*** | 32 | 69.5 | 141 | 4.0 | ||||||||||||||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
