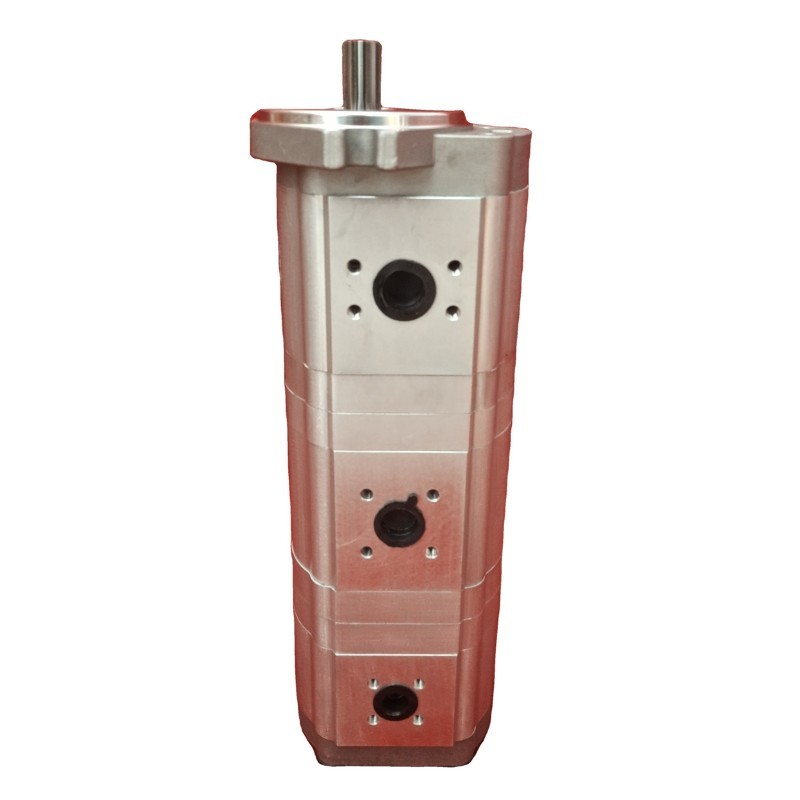

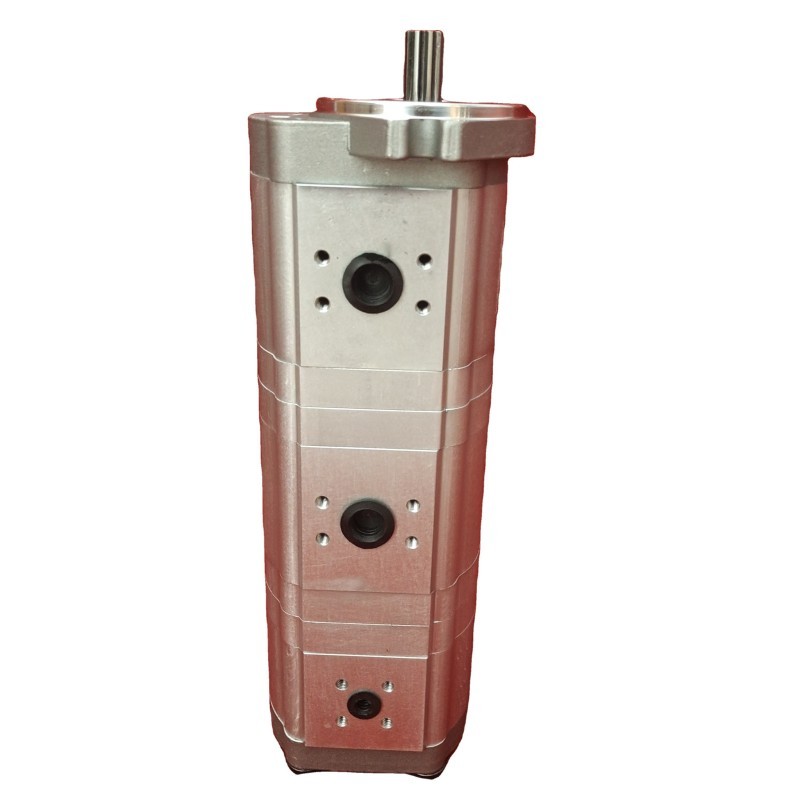

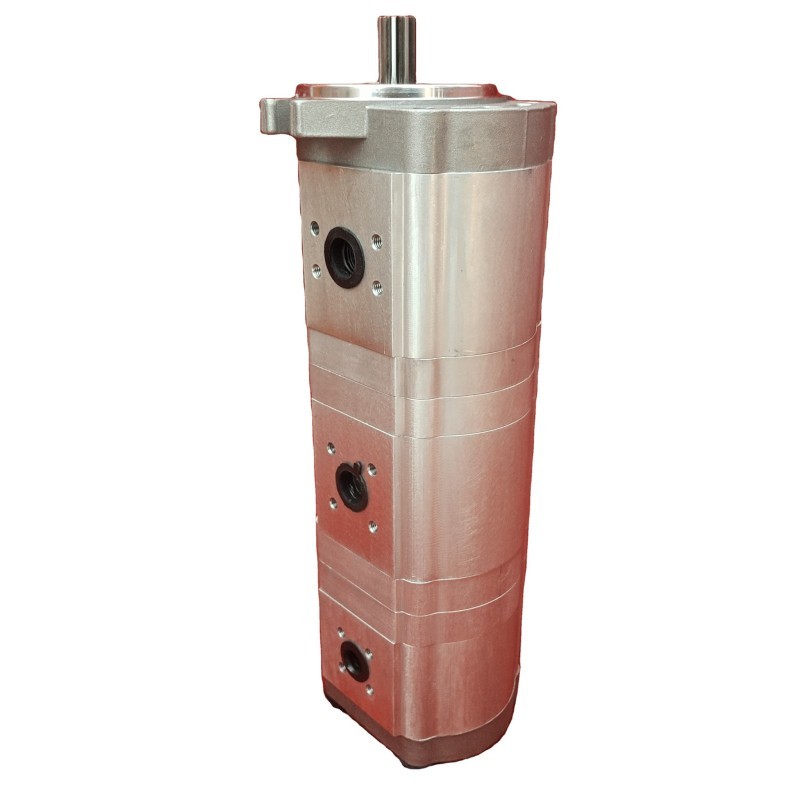

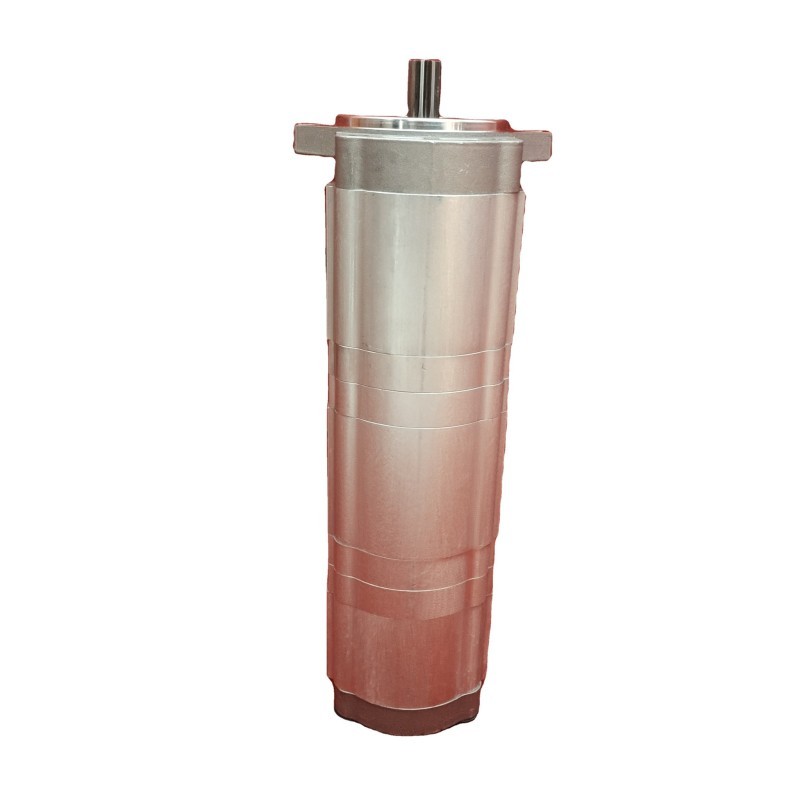

CBNSL-E3 Series Triple Gear Pump, 16MPa Medium Pressure Integrated Triple Hydraulic Oil Pump for Multi-circuit Agricultural & Construction Machinery

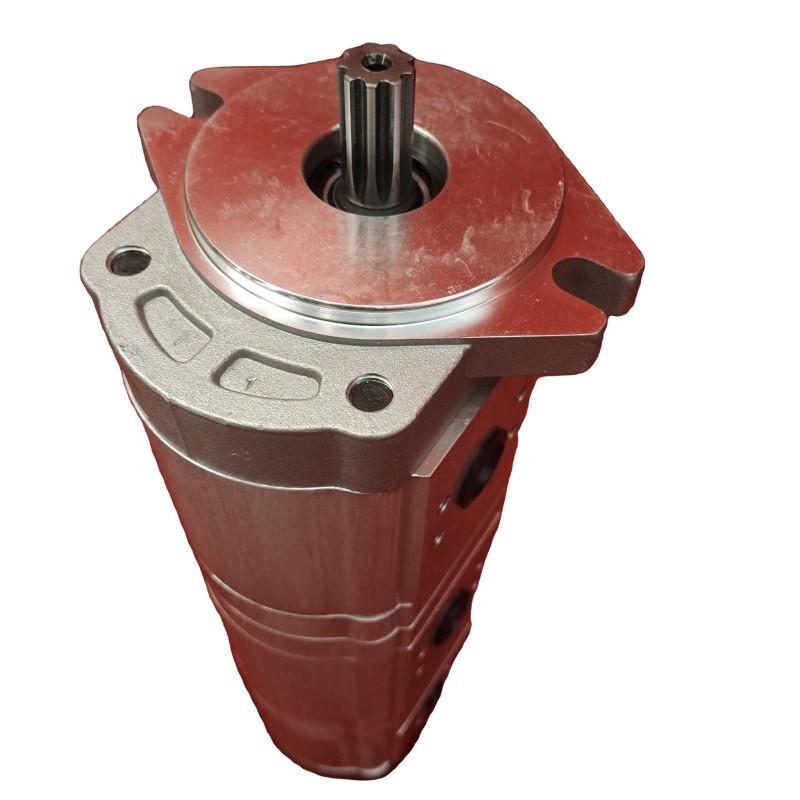

CBNSL-E3 series triple gear pump is integrated 3-series medium pressure hydraulic power unit with rated pressure 16MPa and peak pressure 20MPa. Single shaft drives three independent oil outlets, equipped with floating side plate clearance compensation for high efficiency and low noise. Free combination of three-stage displacements, customizable spline/flat key shaft, rotation direction and port types. Compact structure simplifies multi-circuit pipelines, ideal for harvesters, slag removers and multi-circuit sanitation vehicles.

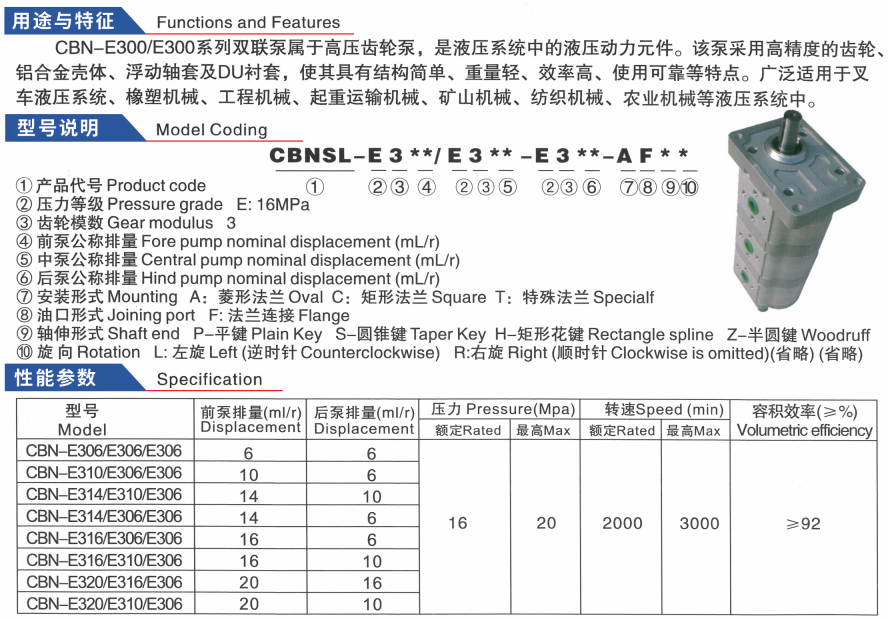

| Model | (ml/r) Displacement | (ml/r) Displacement | Pressure(Mpa) | Speed(min) | (≥%) Volumetric efficiency | ||
| Rated | M a x | Rated | M a x | ||||
| CBN-E306/E306/E306 | 6 | 6 | 16 | 20 | 2000 | 3000 | ≥92 |
| CBN-E310/E306/E306 | 10 | 6 | |||||
| CBN-E314/E310/E306 | 14 | 10 | |||||
| CBN-E314/E306/E306 | 14 | 6 | |||||
| CBN-E316/E306/E306 | 16 | 6 | |||||
| CBN-E316/E310/E306 | 16 | 10 | |||||
| CBN-E320/E316/E306 | 20 | 16 | |||||
| CBN-E320/E310/E306 | 20 | 10 | |||||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
