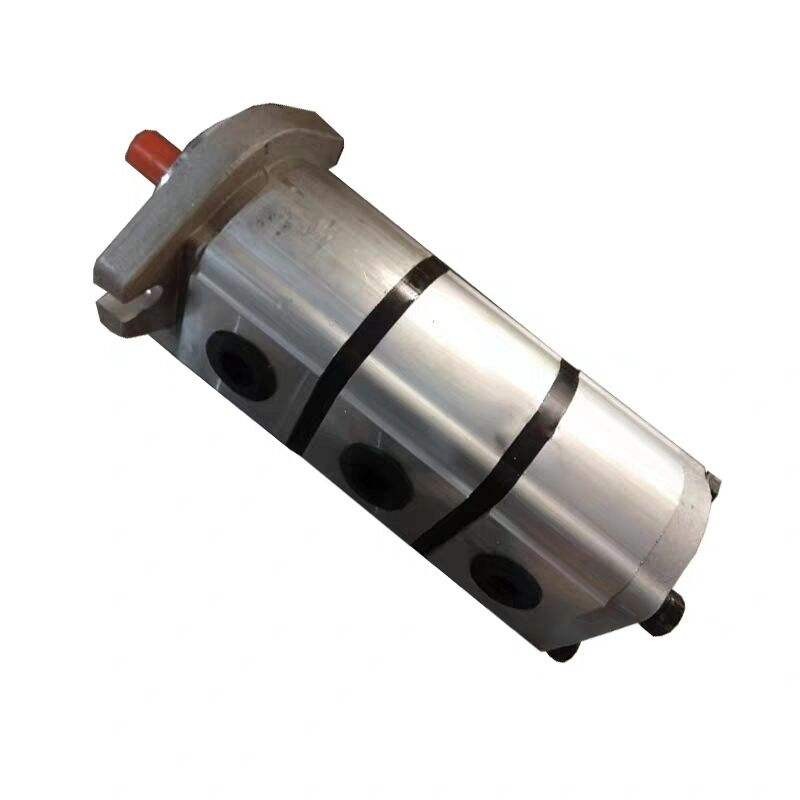

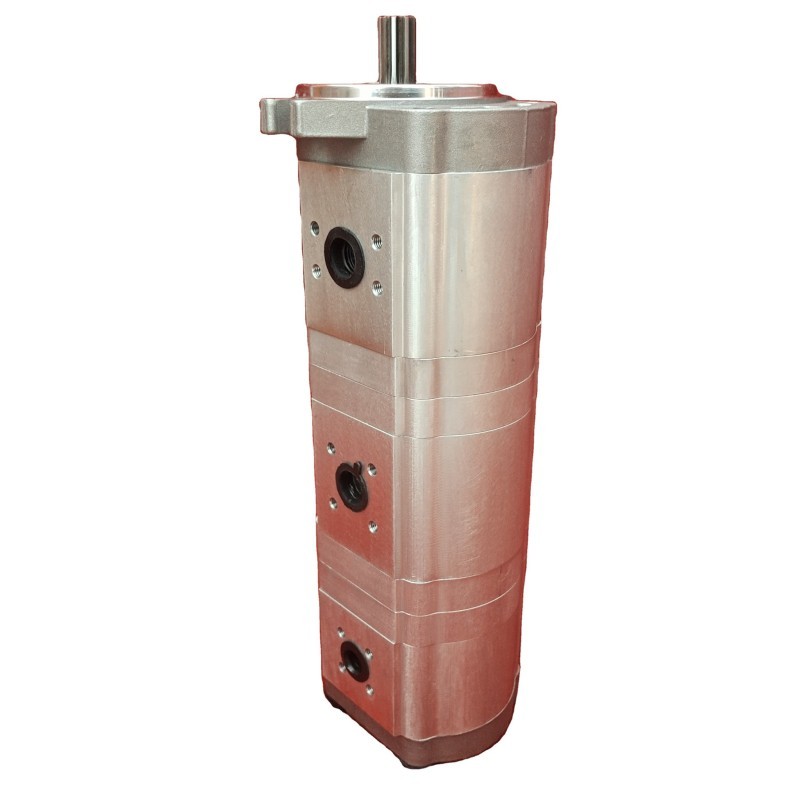

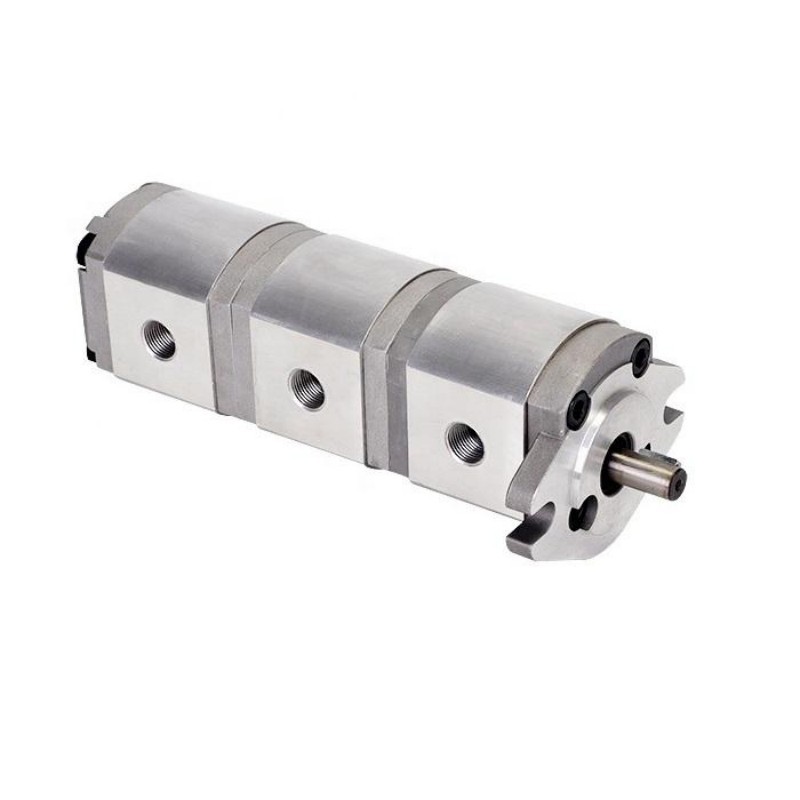

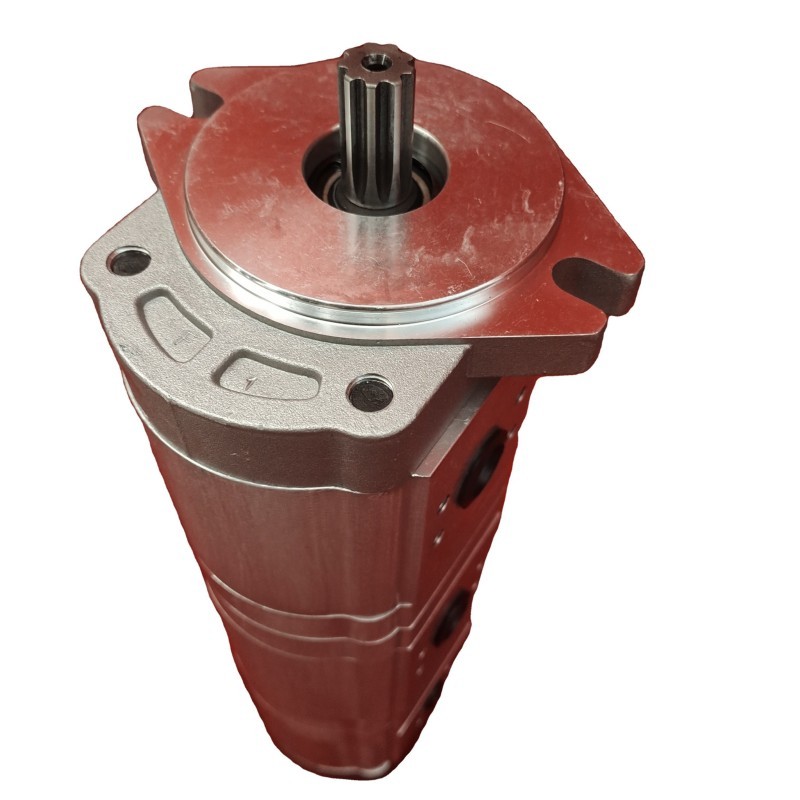

CBWSL-E300 Series Medium Pressure Triple Gear Pump, Aluminum Alloy Triple-circuit Hydraulic Oil Pump for Multi-circuit Agricultural Machinery

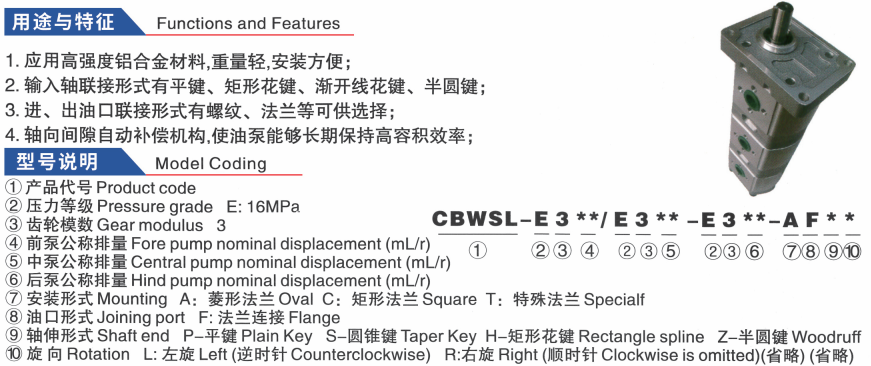

CBWSL-E300 integrated triple gear pump with rated pressure 16MPa and peak pressure 20MPa. Single shaft supplies three independent oil circuits with floating side plate compensation for stable flow and low internal leakage. Customizable triple displacement combinations, spline/flat key shafts, rotation directions and port styles. Compact design simplifies multi-circuit layout, suitable for harvesters, tractors, multi-circuit sanitation vehicles and light construction machinery.

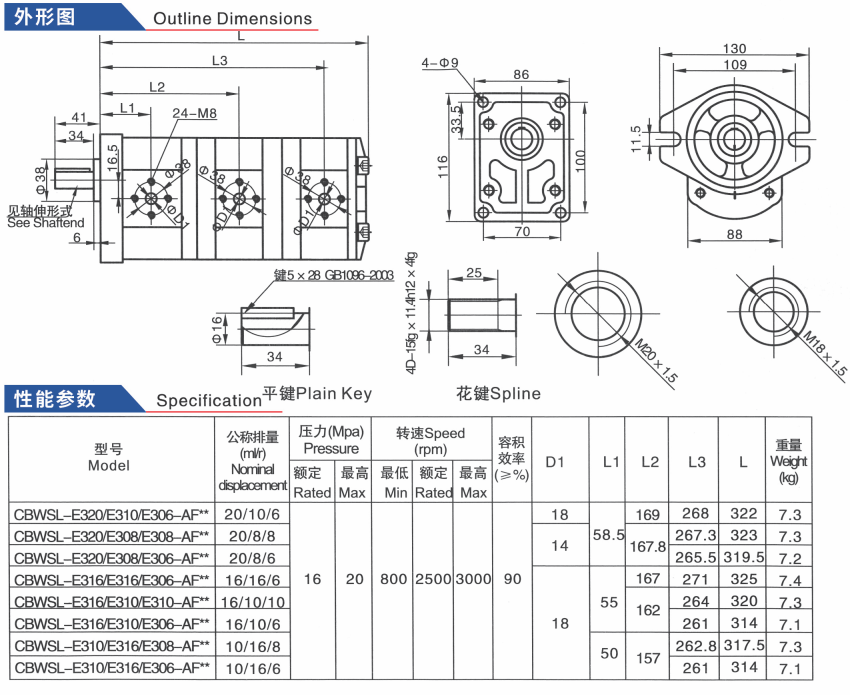

Model | (mlr) Nominal displacement | (Mpa) Pressure | Speed (rpm) | (≥%) | D1 | L1 | L2 | L3 | L | Weight (kg) | |||
Rated | Max | Min | Rated | Max | |||||||||
| CBWSL-E320/E310/E306-AF** | 20/10/6 | 16 | 20 | 800 | 2500 | 3000 | 90 | 18 | 58.5 | 169 | 268 | 322 | 7.3 |
| CBWSL-E320/E308/E308-AF** | 20/8/8 | 14 | 167.8 | 267.3 | 323 | 7.3 | |||||||
| CBWSL-E320/E308/E306-AF** | 20/8/6 | 265.5 | 319.5 | 7.2 | |||||||||
| CBWSL-E316/E316/E306-AF** | 16/16/6 | 18 | 55 | 167 | 271 | 325 | 7.4 | ||||||
| CBWSL-E316/E310/E310-AF** | 16/10/10 | 162 | 264 | 320 | 7.3 | ||||||||
| CBWSL-E316/E310/E306-AF** | 16/10/6 | 261 | 314 | 7.1 | |||||||||
| CBWSL-E310/E316/E308-AF** | 10/16/08 | 50 | 157 | 262.8 | 317.5 | 7.3 | |||||||
| CBWSL-E310/E316/E306-AF** | 10/16/06 | 261 | 314 | 7.1 | |||||||||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Q: What's the lead time for orders?
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
