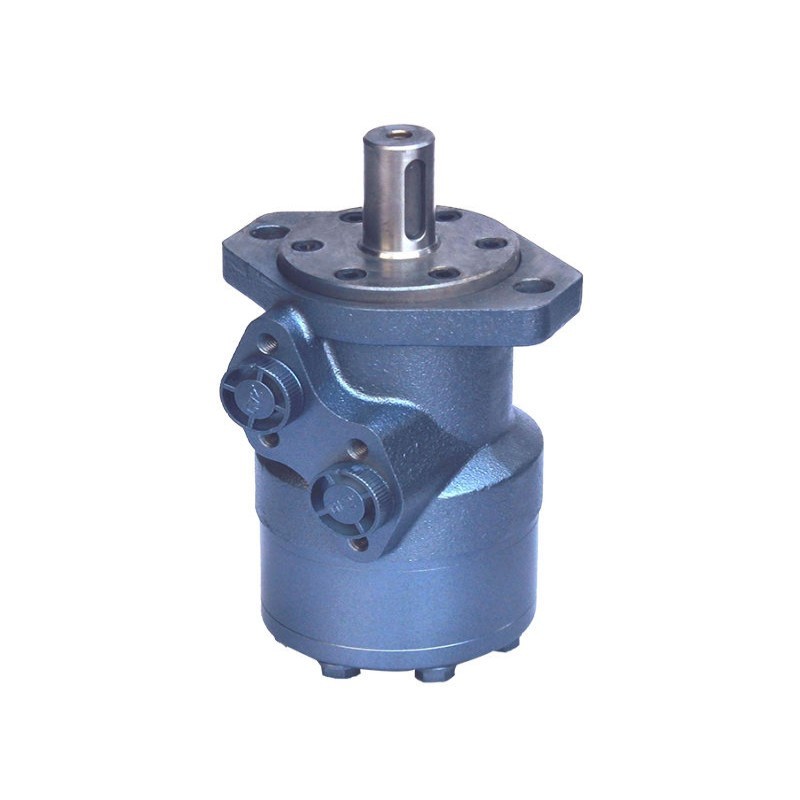

HMr Series 50/63/80/100/125/160/200/250/315/400/500 Orbital Hydraulic Motor | Low Speed High Torque | Durable

HMr Series 50/63/80/100/125/160/200/250/315/400/500 Orbital Hydraulic Motor | Low Speed High Torque | Durable
Series: HMr Series Orbital Hydraulic Motor
Type: Shaft Distribution Low Speed High Torque Gerotor Motor
Displacement: 50/80/100/160/250/400cc/rev
Working Pressure: 14–17.5MPa
Speed Range: 5–775r/min
Circuit Connection: Series & Parallel Available
Port Style: Radial / Axial Ports Optional
Mount Flange: Multiple Standard Flanges
Working Condition: Low-speed Rotary, Continuous Load
Advantages: Low Starting Pressure, High Torque, Low Noise
Application: Sanitation, Garden, Construction, Inj

Product Details

Product Tags

Product Description

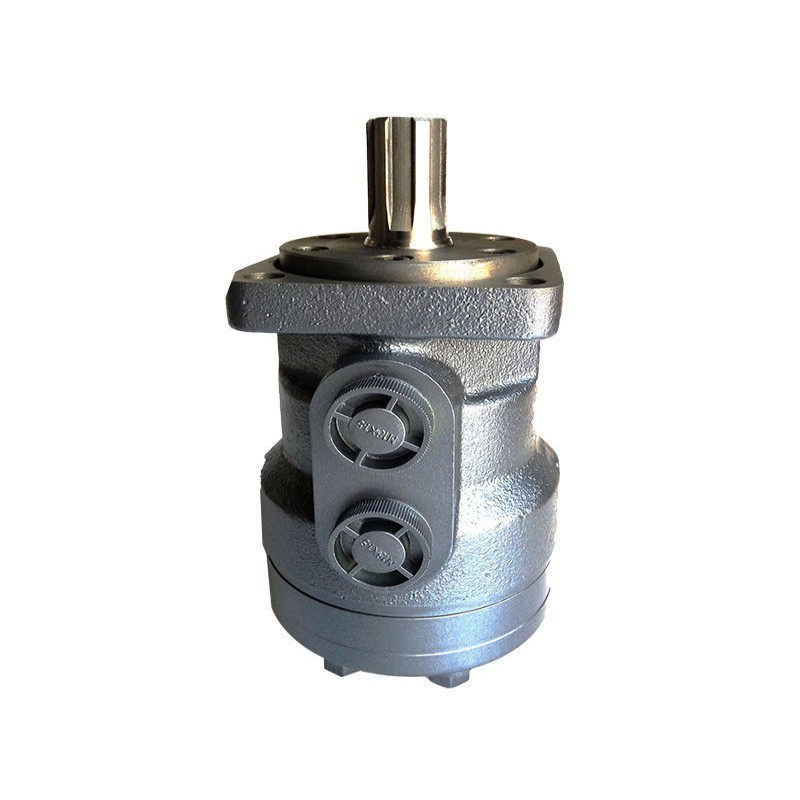

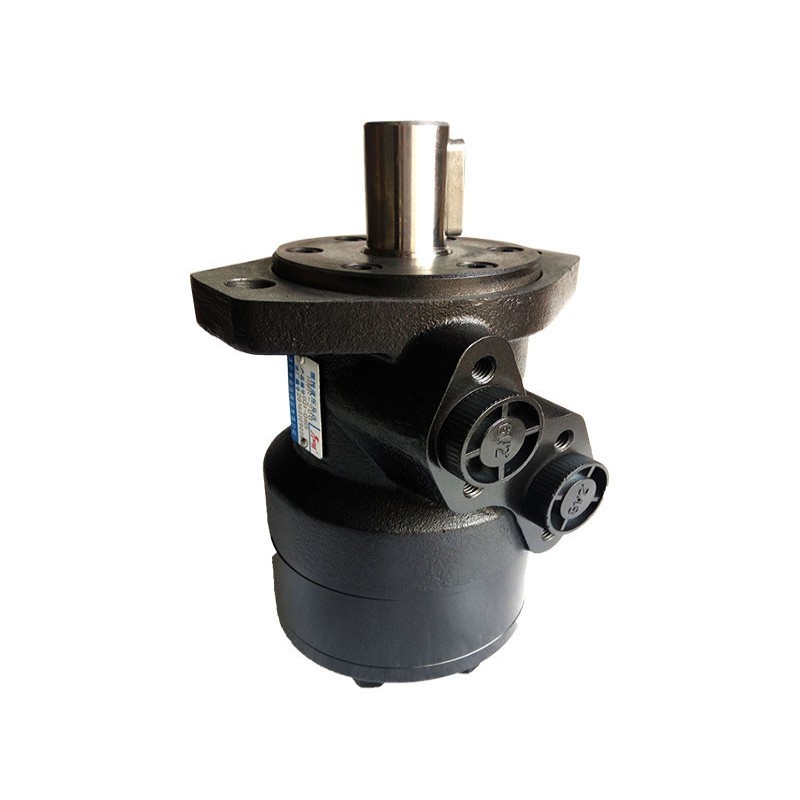

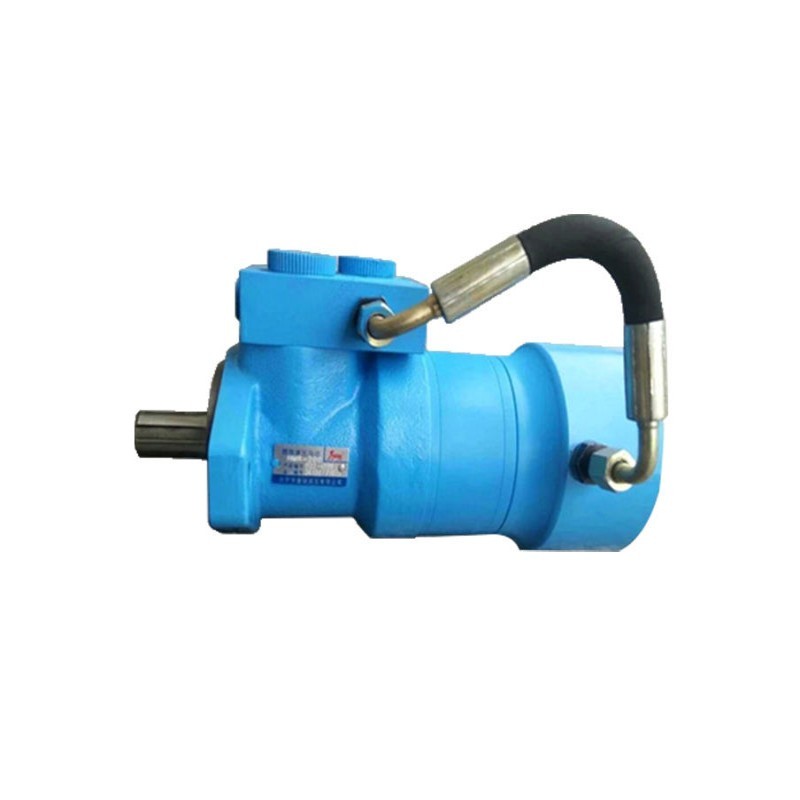

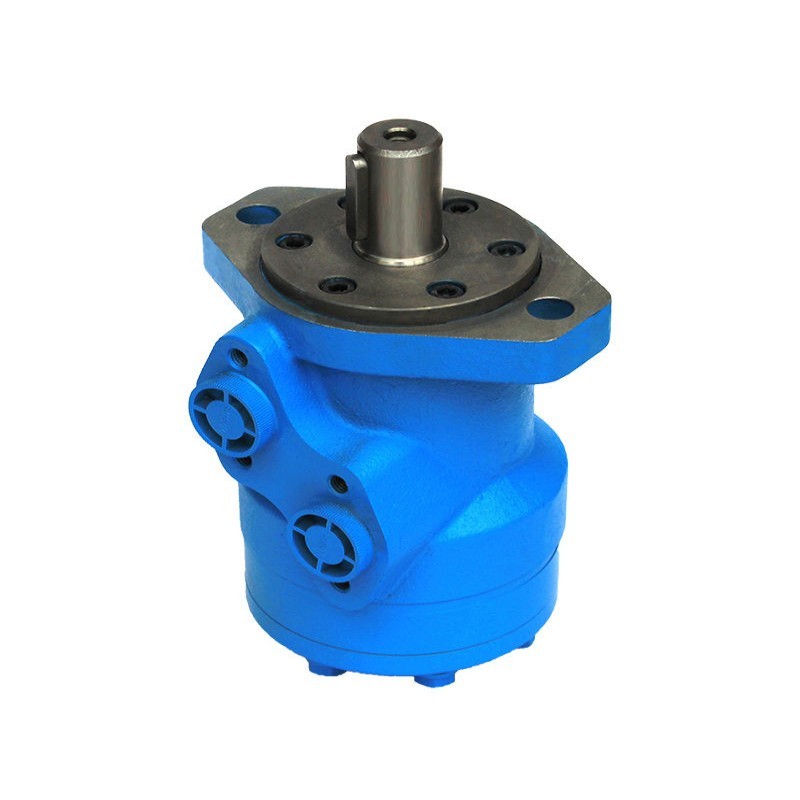

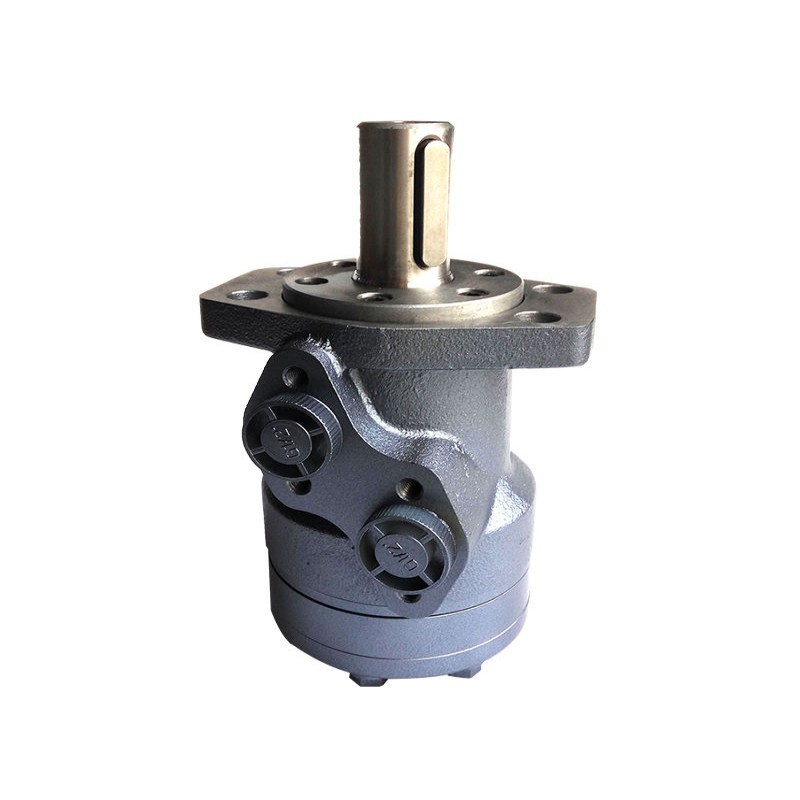

The HMr series hydraulic motor is a low-speed high-torque orbital hydraulic motor featuring a shaft distribution design and integrated stator-rotor pair, efficiently converting hydraulic energy into mechanical energy. It boasts compact size, light weight, low starting pressure, and smooth low-speed operation, supporting a wide speed range of 10-775 r/min and working pressure of 14-17.5 MPa. Widely used in rotary mechanisms of injection molding machines, road sweepers, lawn mowers, conveyors, harvesters, and cranes, it allows series/parallel installation and serves as a cost-effective alternative to imported motors.

(ml/r)Displacement50 63 80 100 125 160 200 250 315 400 500
(LPM)
Flow		Continuous40 53 58 58 58 58 58 58 58 58 58
Intermittent46 58 68 68 68 68 68 68 68 68 68
(RPM)
speed		Continuous750 760 653 551 440 344 276 220 175 140 110
Intermittent863 832 766 646 516 404 323 258 205 162 128
 (Mpa)
pressure		Continuous14 14 14 14 14 14 12.5 11 9 9 8
Intermittent17 17 17 17 17 17 15 13 11 10 9
 (N*m)
Torque		Continuous89 112 142 178 223 286 318 350 360 418 464
Intermittent108 136 172 216 270 346 382 413 400 464 500


Core Advantages


  1. Low Speed High Torque, Powerful Output:
    High starting torque, smooth low-speed operation, stable max continuous torque up to 464Nm.

    Energy-Efficient & Low-Noise Operation:
    High volumetric efficiency, low noise, stable performance under harsh conditions.

    Compact Design & Flexible Installation:
    Small size, light weight, radial/axial ports, multiple flange options for tight spaces.

    Wide Compatibility & Versatile Applications:
    Displacement 50-400cm³/rev, series/parallel connection, compatible with various hydraulic systems.

    Durable & Long Service Life:
    Reinforced shaft seal & bearing, high backpressure resistance, wear & corrosion resistance, low maintenance.

    Cost-Effective Import Alternative:
    International-level performance, competitive pricing, customized solutions & fast delivery.

  2. Applications

  3. HMr orbital hydraulic motors suit low-speed rotary equipment including sanitation, agricultural, construction, plastic, lifting and marine machinery.

EXIHIBITION


Company Profile

Changzhou Bejery Machinery Co., Ltd. is a high-tech enterprise specializing in the research, development, manufacturing, and sales of hydraulic pumps and hydraulic systems. Since its establishment, the company has been dedicated to innovation and application in hydraulic power technology. Our product range includes gear pumps, vane pumps, and piston pumps, which are widely used in machinery manufacturing, construction machinery, metallurgy, marine engineering, aerospace, mining machinery, agricultural machinery, and energy industries.
Equipped with advanced production facilities, a complete testing system, and an experienced R&D team, we provide customers with integrated solutions from system design and product manufacturing to after-sales service. Through a strict quality management system and lean production processes, our products deliver stable performance, durability, and compliance with international quality standards.
With superior products and professional services, the company has established long-term and stable partnerships with many well-known enterprises at home and abroad. Adhering to the business philosophy of "Quality First, Technology Leading, Customer Oriented," we continuously promote hydraulic technology towards higher efficiency, energy saving, and intelligent development, striving to create greater value for our customers.
Mission: Power the world with hydraulic technology and help customers achieve excellence in production.
Vision: To become a globally trusted brand supplier in the hydraulic industry.
Core Values: Integrity, Innovation, Cooperation, Win-win.

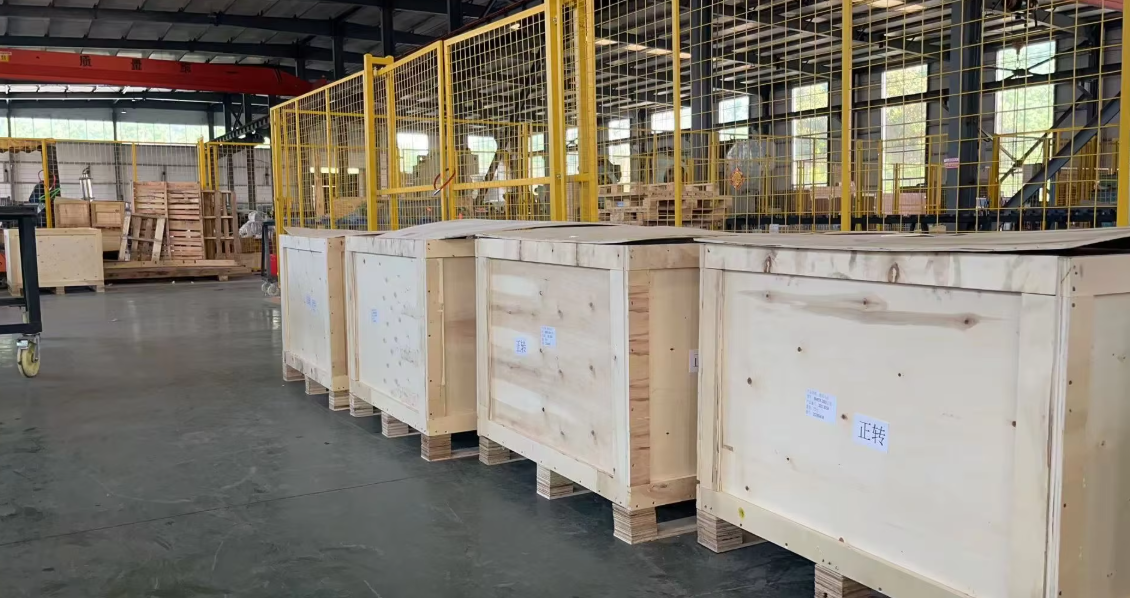

Packaging & Shipping


Our Advantages

1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions

Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

FAQ


Q: What's the lead time for orders?
A: Standard models ship in 7-15 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
