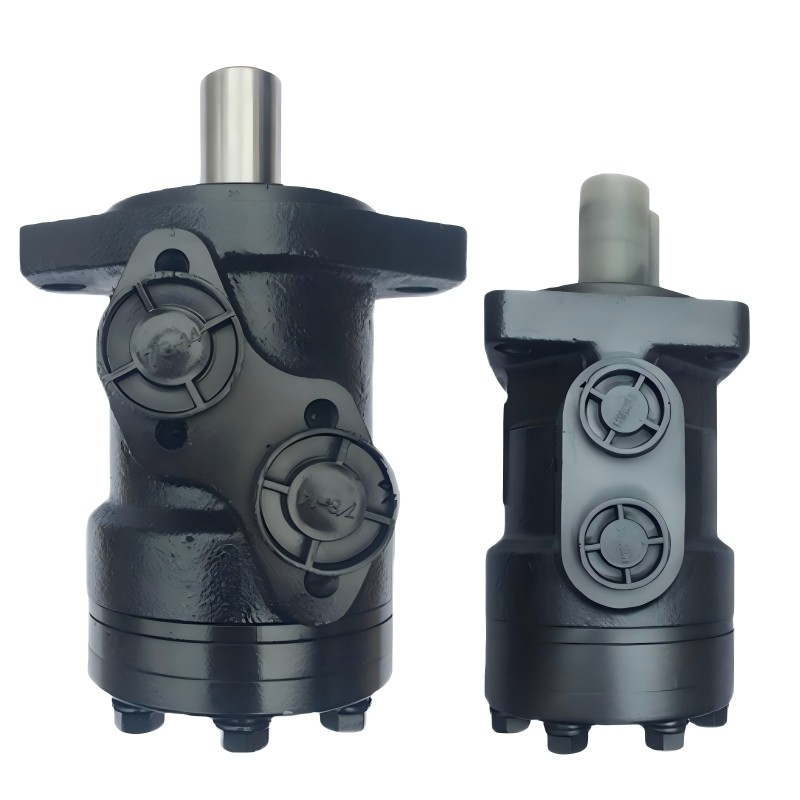

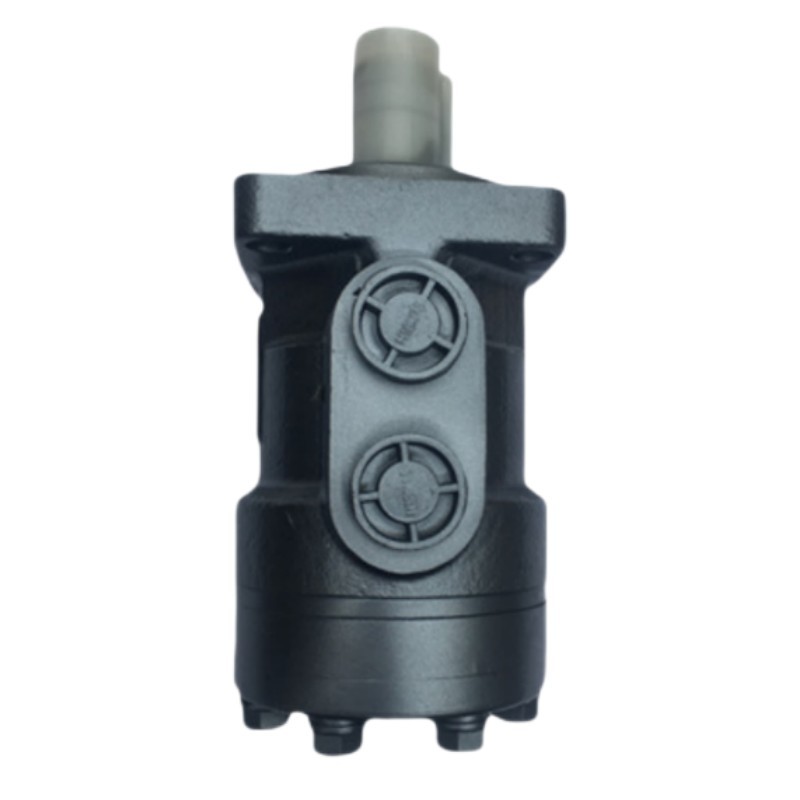

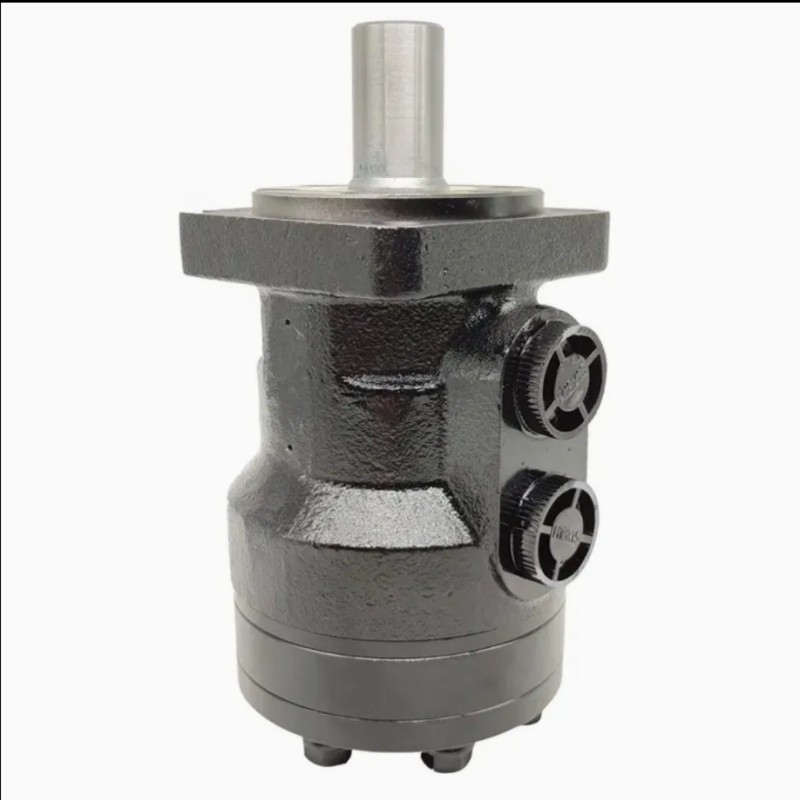

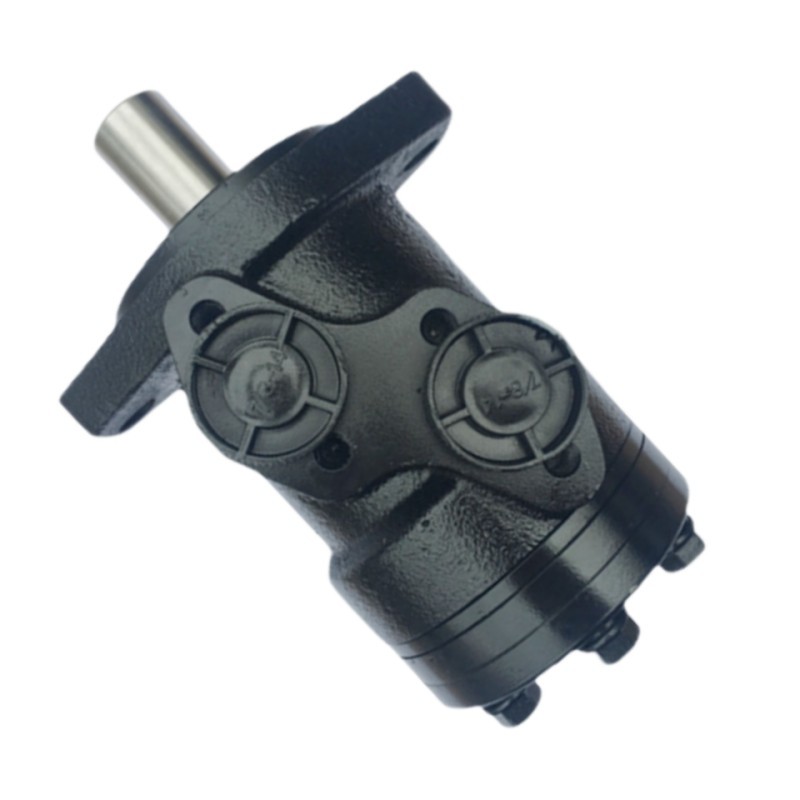

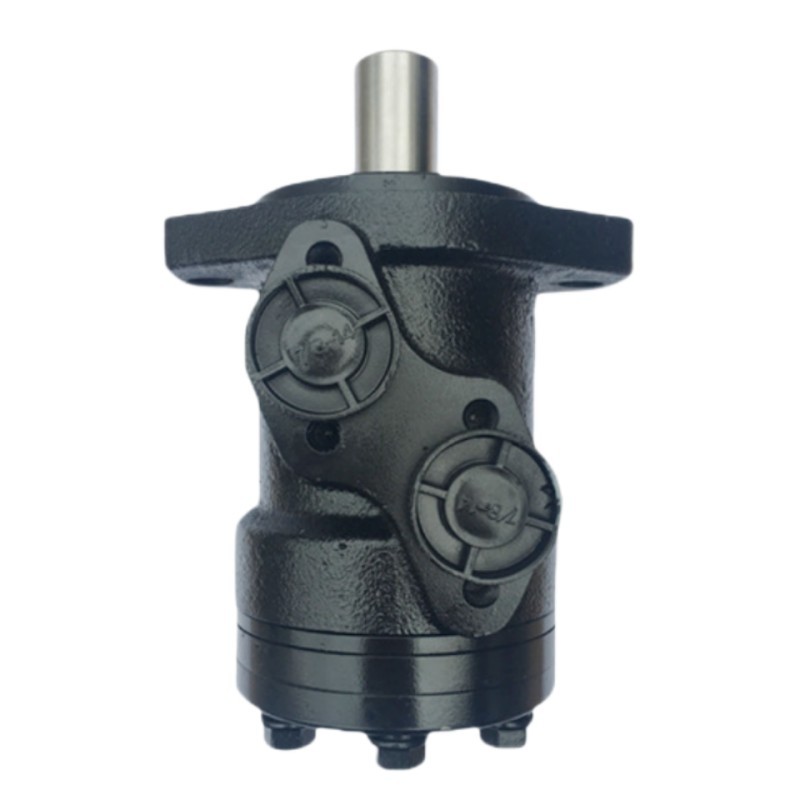

HMP Series Orbital Hydraulic Motor | Low Speed High Torque Motor with End Face Compensation
The HMP series hydraulic motor is a low speed high torque orbital hydraulic actuator. It applies advanced cycloidal meshing technology and end face compensation structure to maintain high efficiency under high pressure. Featuring compact structure, powerful torque output, stable operation and low noise, it supports multiple mounting methods. Widely applied in construction machinery, agricultural machinery, sanitation equipment, fishing machinery and conveyor equipment, it is stable, durable and an ideal accessory for various hydraulic drive devices.
| (ml/r)Displacement | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | |
| (LPM) Flow | Continuous | 38 | 45 | 58 | 58 | 58 | 58 | 58 | 58 | 58 | 58 |
| Intermittent | 45 | 53 | 69 | 69 | 69 | 69 | 69 | 69 | 69 | 69 | |
| (RPM) speed | Continuous | 698 | 663 | 685 | 560 | 456 | 356 | 285 | 236 | 176 | 145 |
| Intermittent | 853 | 775 | 820 | 671 | 548 | 426 | 341 | 282 | 210 | 173 | |
| (Mps) pressure | Continuous | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 11 | 10 | 9 | 9 |
| Intermittent | 14 | 14 | 14 | 14 | 14 | 12.5 | 12.5 | 12.5 | 12.5 | 11 | |
| (N*m) Torque | Continuous | 74 | 87 | 124 | 155 | 194 | 227 | 282 | 302 | 365 | 456 |
| Intermittent | 86 | 98 | 141 | 176 | 221 | 260 | 318 | 383 | 406 | 521 | |
OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 7-15 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
