M1-M5 Series Vane Motor

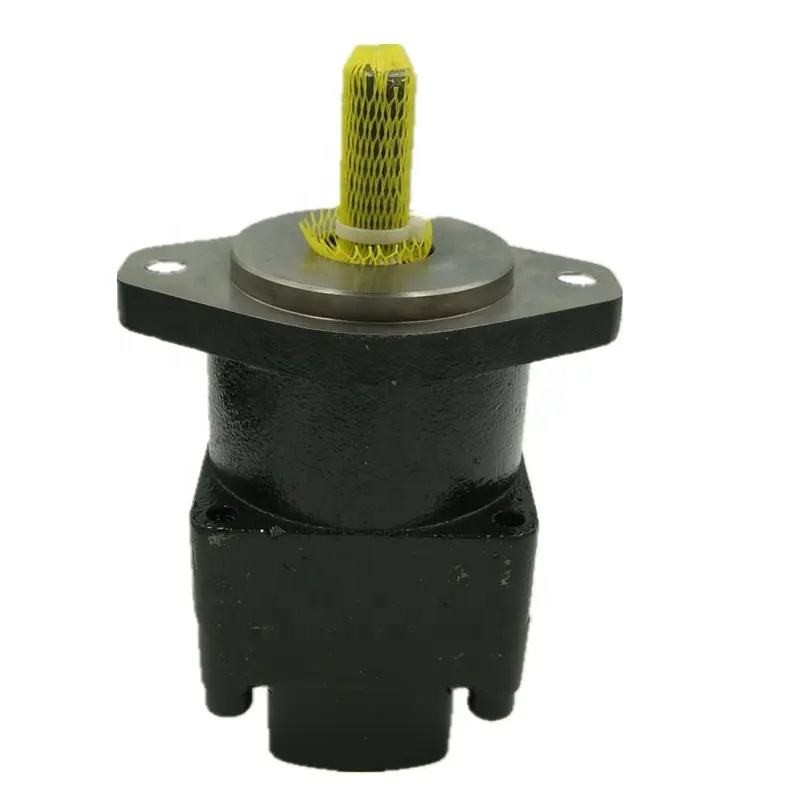

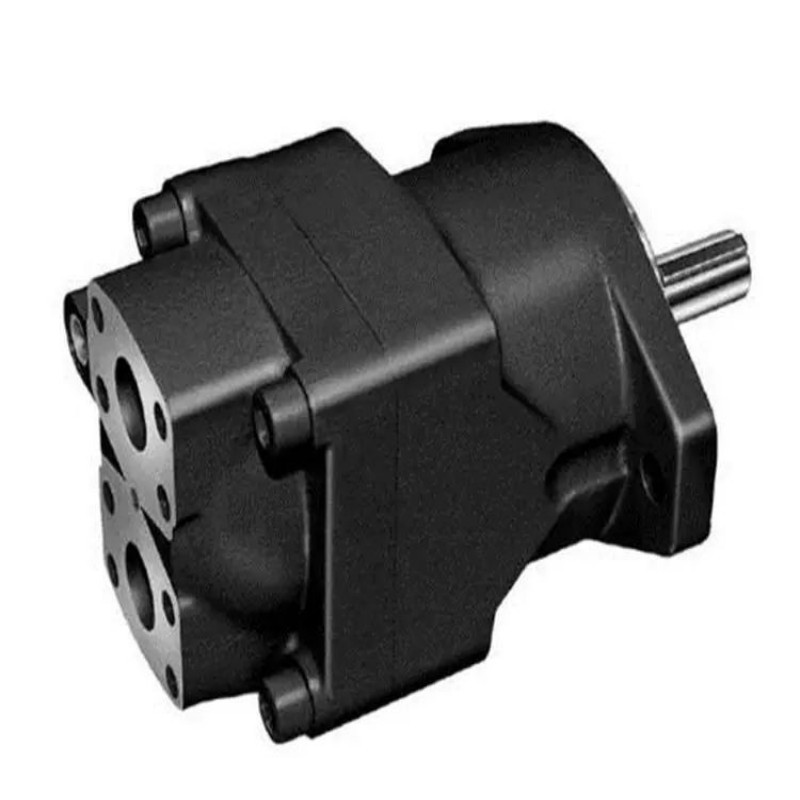

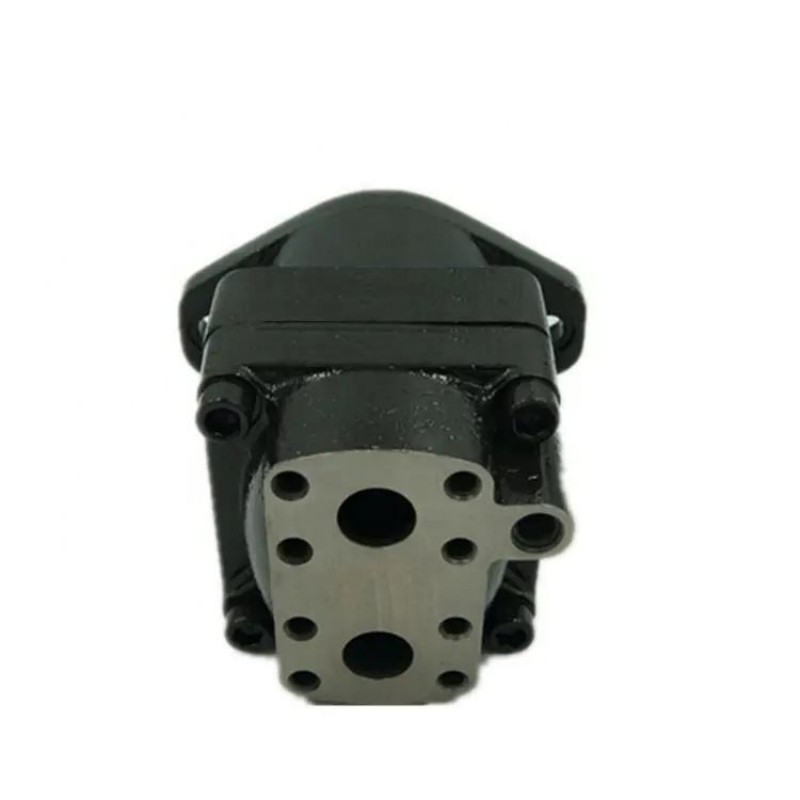

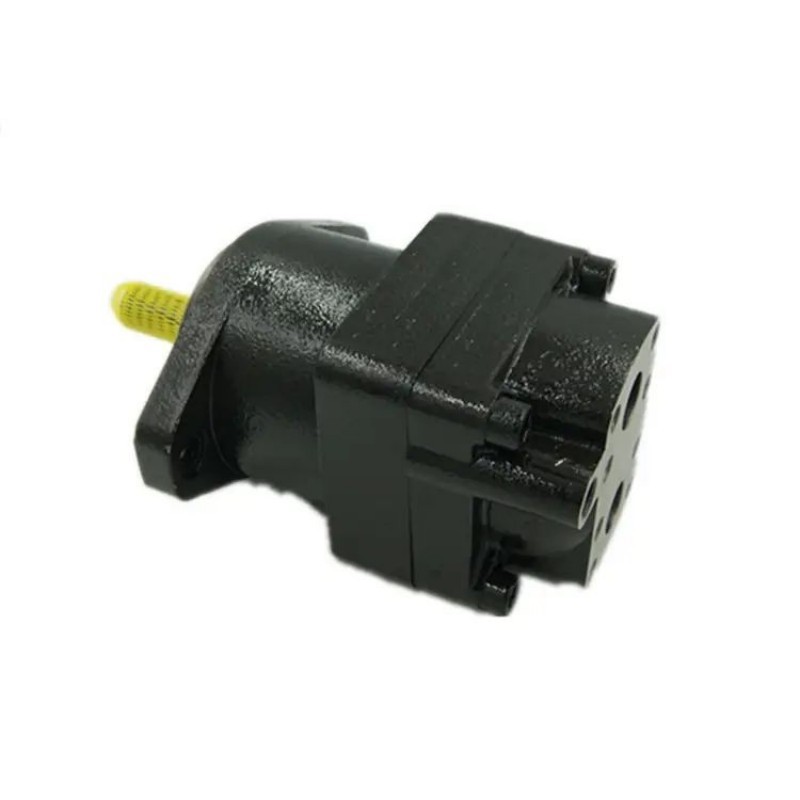

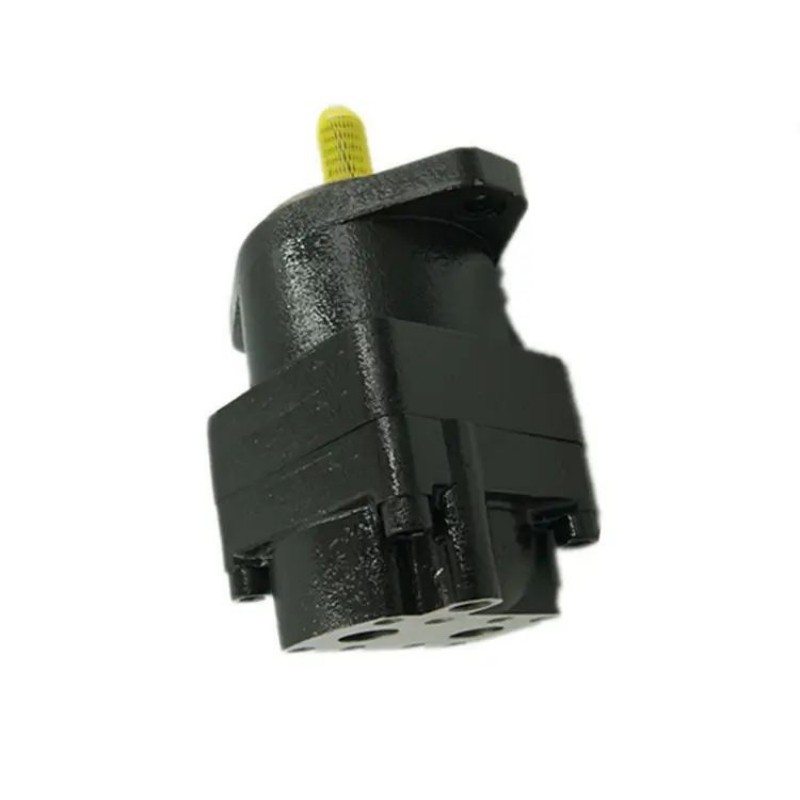

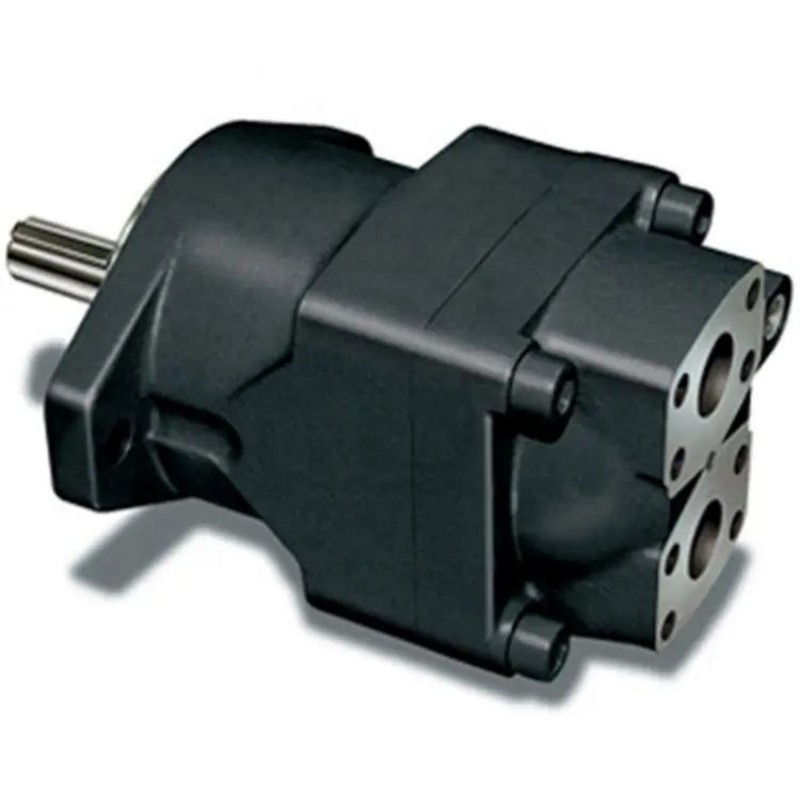

M1-M5 series vane motors are fixed displacement vane motors with multiple specifications including M1, M2, M3, M4 and M5, providing a wide output torque range. These motors run smoothly with good shock resistance and excellent starting performance. Compact housing structure supports easy disassembly and maintenance. They can be applied to various hydraulic transmission scenarios such as machine tools, construction machinery, rubber-plastic equipment, handling equipment and hydraulic tools.
M1-M5 Series-Vane Motor

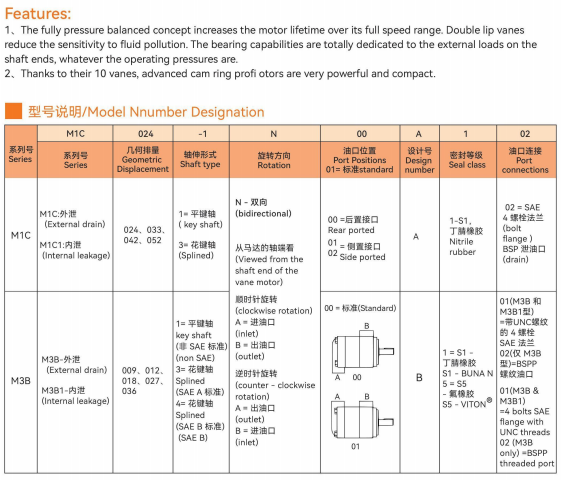

Series | M1C | 024 | -1 | N | 00 | A | 1 | 02 | |
Series | Geometric Displacement | Shaft type | Rotation | Port Positions 01=standard | Design number | Seal class | Port connections | ||
| M1C | M1C: (External drain) M1C1: (Internal leakage) | 024、033、 042、052 | 1= (key shaft) 3= (Splined) | N - (bidirectional) (Viewed from the shaft end of the vane motor) (clockwise rotation) A= (inlet) B= (outlet) (counter-clockwise rotation) A= (outlet) B= (inlet) | 00= Rear ported 01.= 02 Side ported | A | 1-S1, Nitrile rubber | 02=SAE 4 (bolt flange) BSP (drain) | |
| M3B | M3B- (External drain) M3B1- (Internal leakage) | 009、012、 018、027、 036 | 1= key shaft (non SAE) 3= Splined 4= Splined (SAE B) |  00=(Standard)01 | B | 1=S1- S1-BUNA 5=S5 - S5-VITON | N ® | 01(M3B & M3B1) =4 bolts SAE flange with UNC threads 02(M3B only)=BSPP threaded port | |
Pin-supported vane design reduces friction and wear
High pressure capability with stable performance
Low noise and low vibration operation
High volumetric efficiency
Long service life and reliable operation
Suitable for continuous and heavy-duty applications
Applications
Industrial hydraulic power units
Injection molding machines
Press machines
Machine tools
Die casting equipment
Metallurgical and heavy-duty machinery
