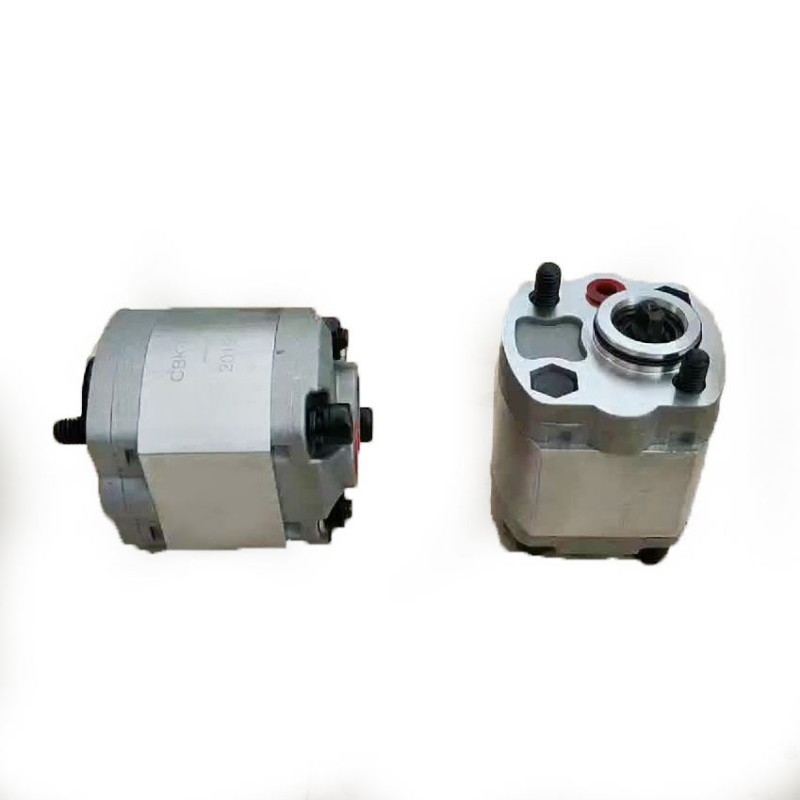

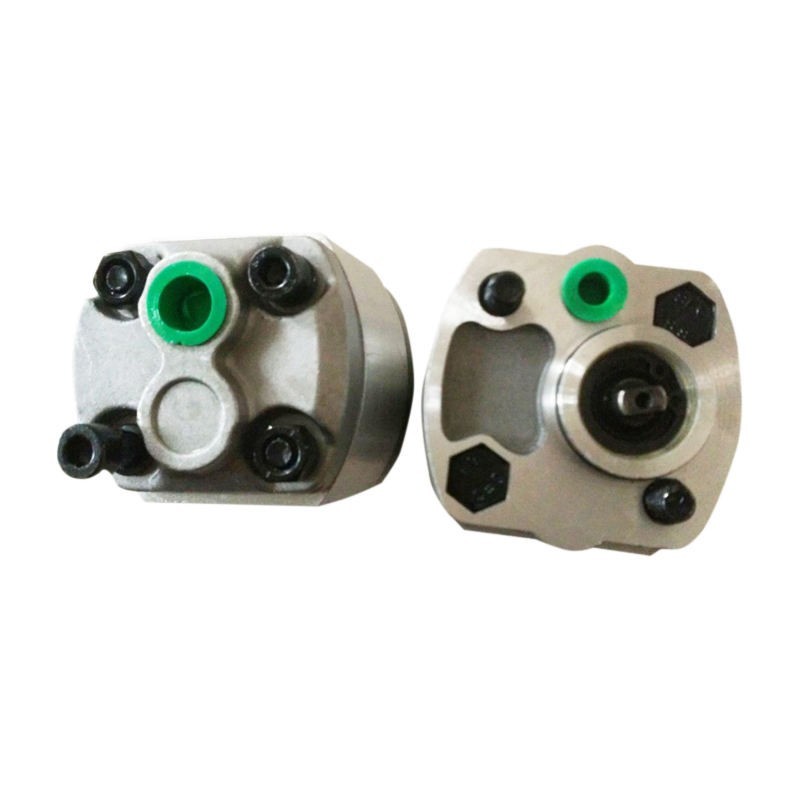

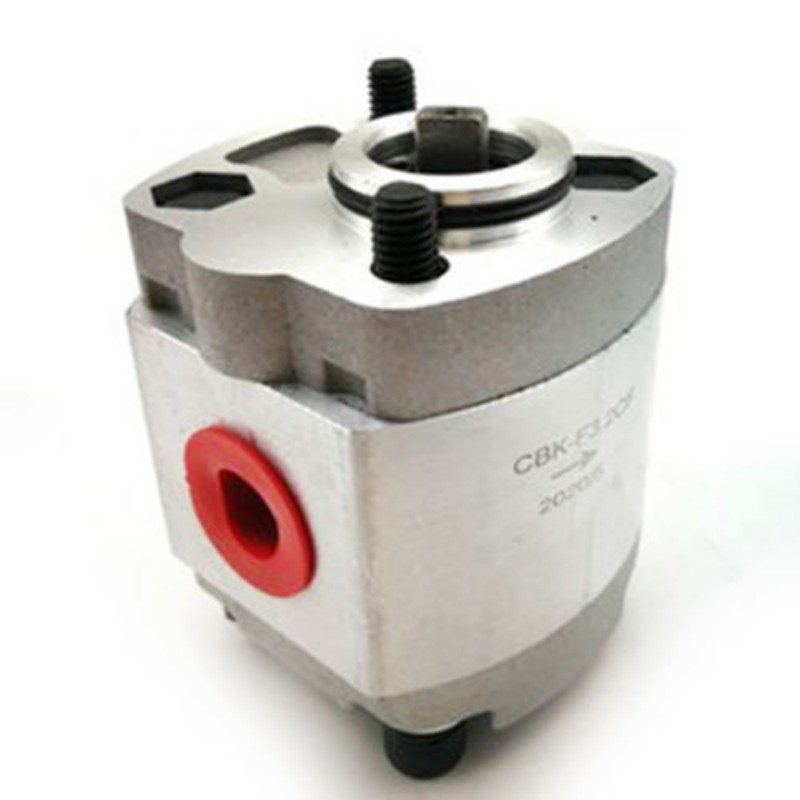

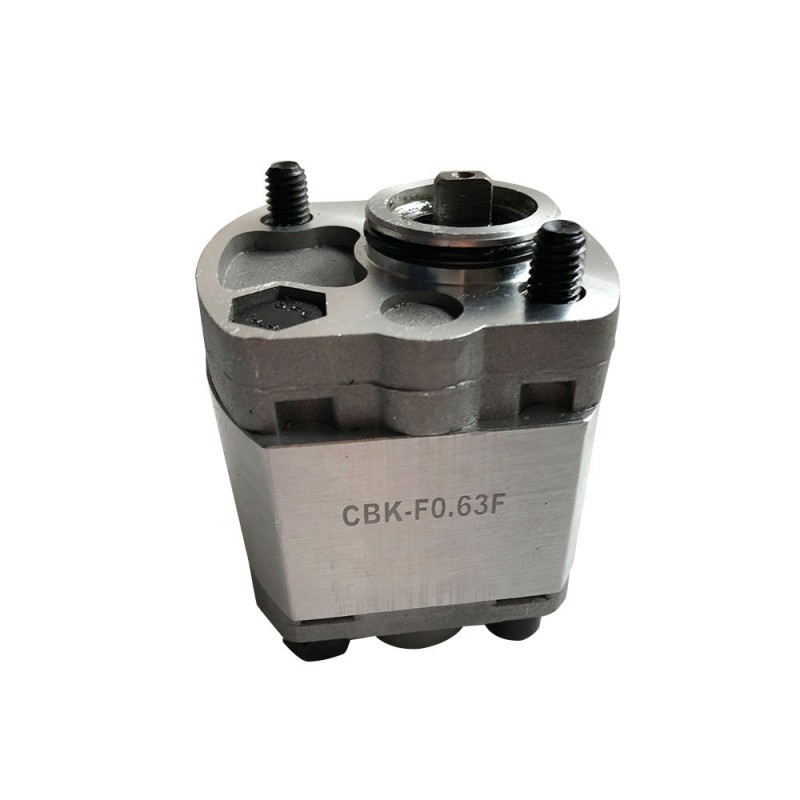

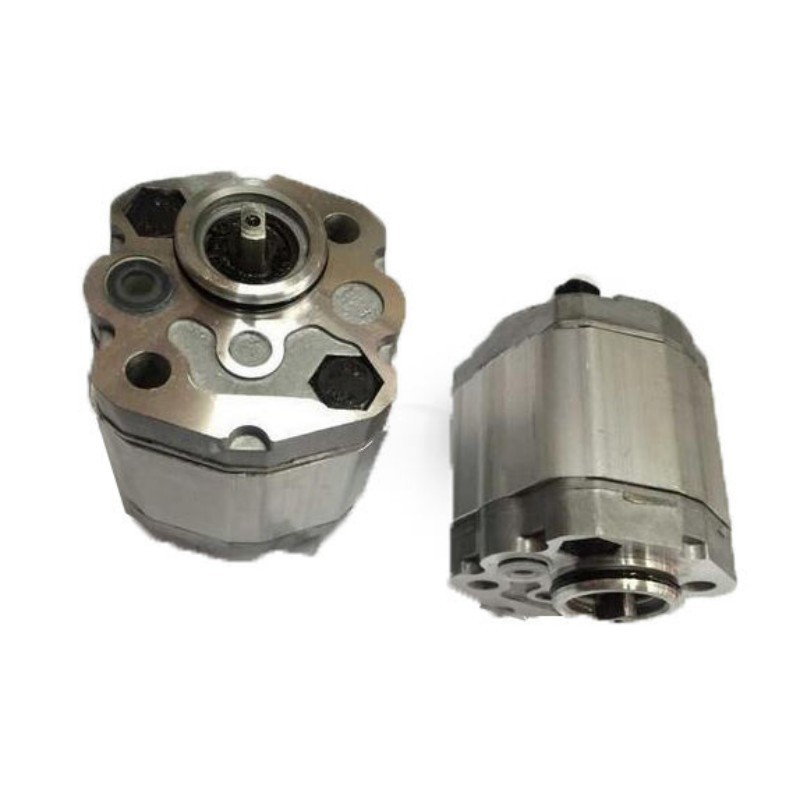

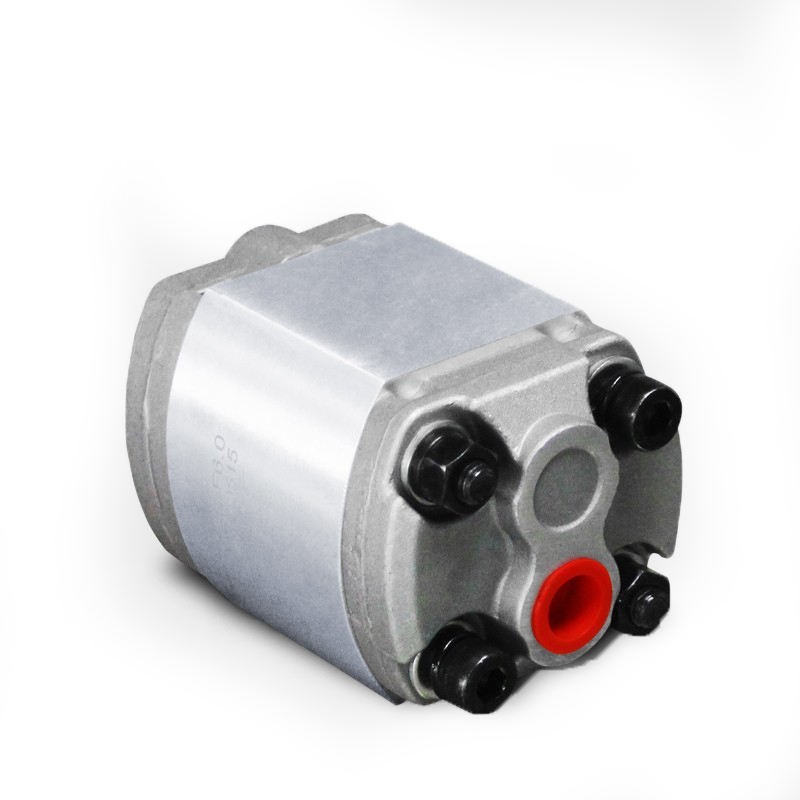

CBK-E100 gear pump is a small-displacement hydraulic pump composed of a pair of gear shafts, bushings, pump housing, front cover, and rear cover. It features a compact structure, light weight, high efficiency, and low noise. This pump is suitable for various small to medium-pressure hydraulic systems.

Notes for users:

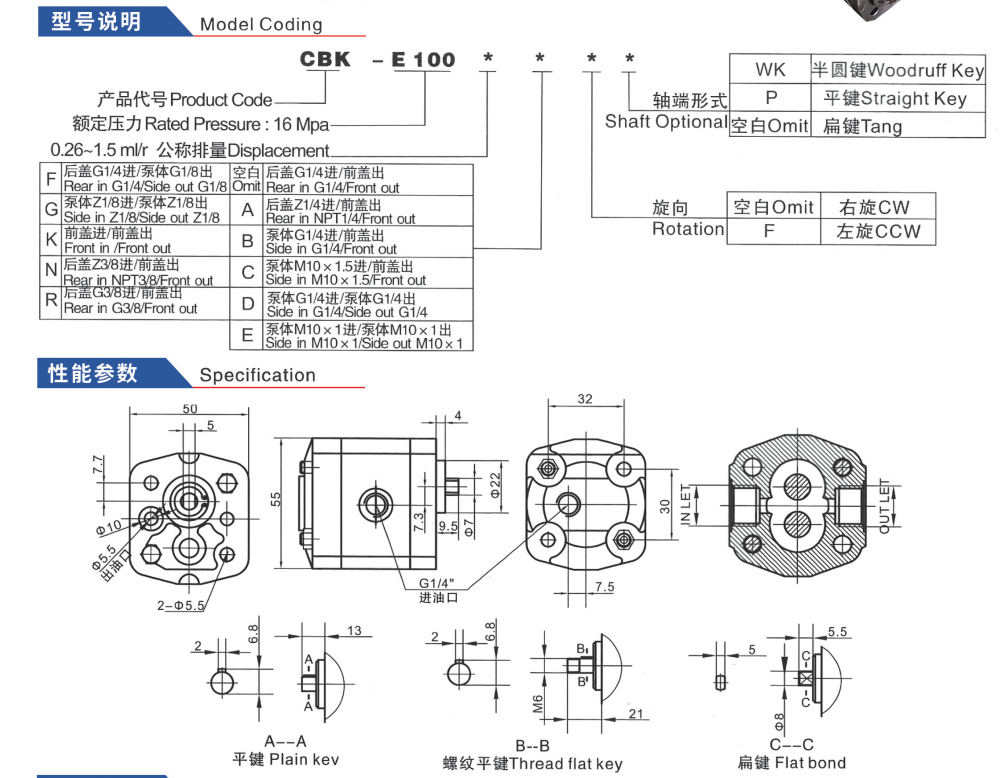

The CBK-E100 gear pump is available in both clockwise and counterclockwise rotation. It also offers five inlet/outlet configurations:

• rear cover inlet / front cover outlet

• pump body inlet / front cover outlet

• pump body inlet / pump body outlet

• rear cover inlet / pump body outlet

✅ Product Overview

The CBK-E100 Hydraulic Gear Pump is an external gear pump designed for industrial hydraulic systems and power units.
It features a compact structure, stable flow output, and reliable performance, making it suitable for continuous operation under demanding working conditions.

The CBK-E100 pump is widely used in hydraulic stations, machinery equipment, and mobile hydraulic applications.

✅ Applications

• Hydraulic power units

• Hydraulic pump stations

• Industrial machinery

• Construction machinery

• Agricultural machinery

• Material handling equipment

✅ Advantages of CBK-E100 Gear Pump

• Proven gear pump technology

• Cost-effective solution for hydraulic systems

• Stable performance under continuous operation

• Suitable for OEM and replacement applications

• Easy integration with hydraulic motors and systems
