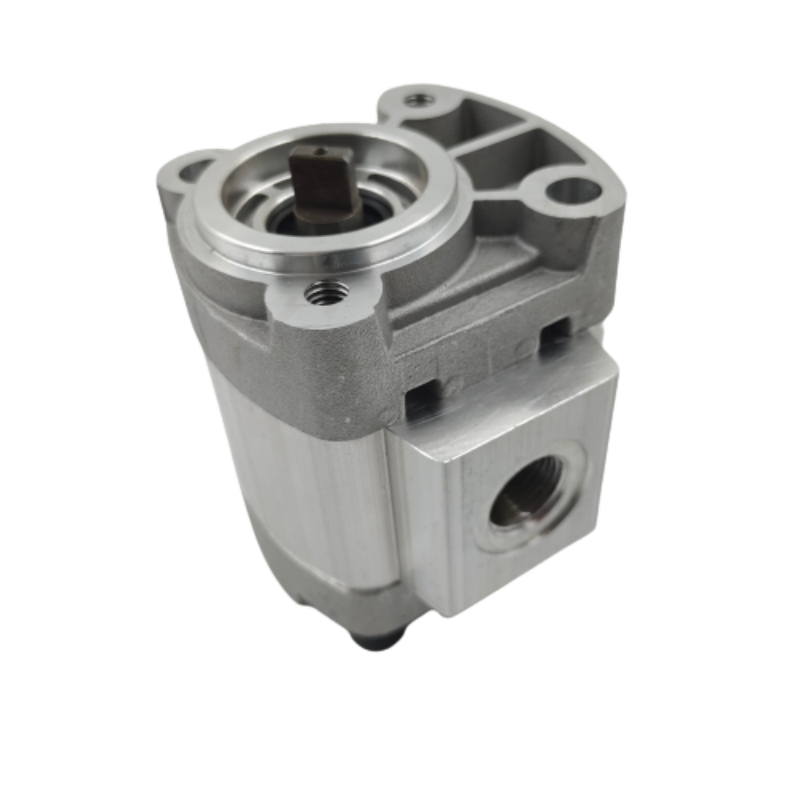

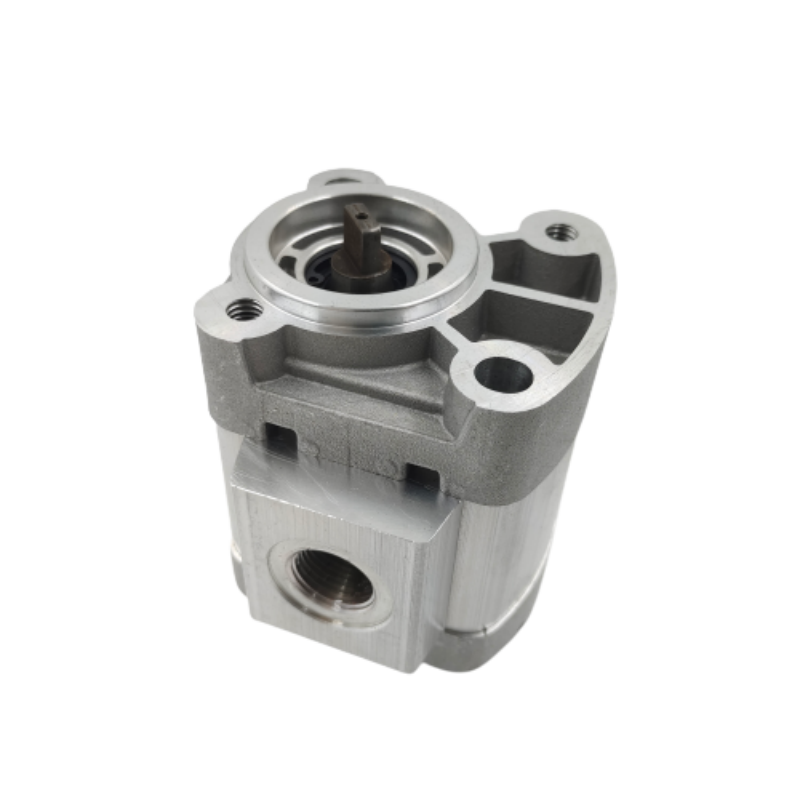

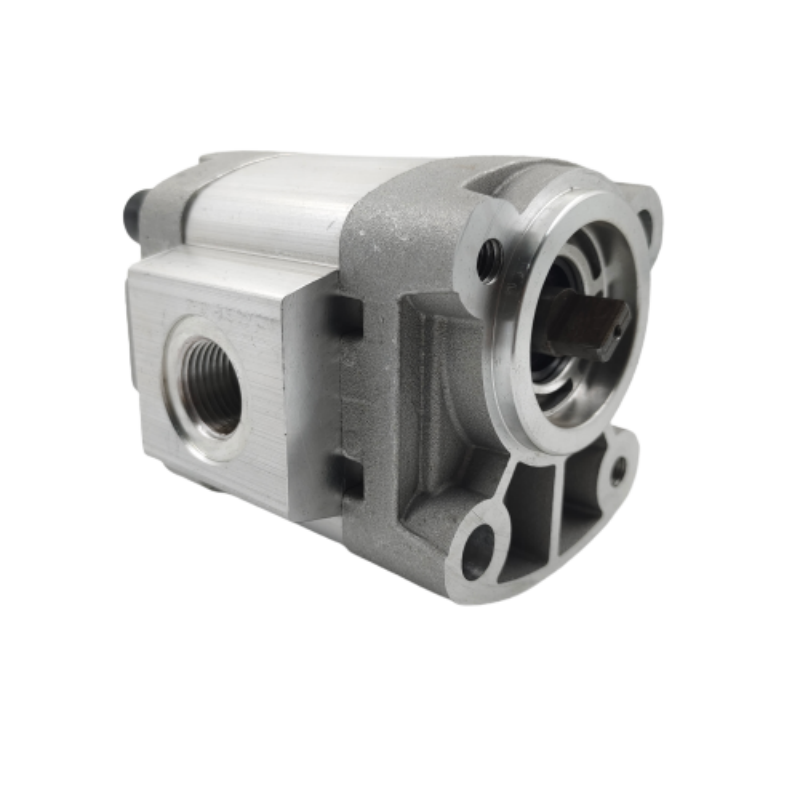

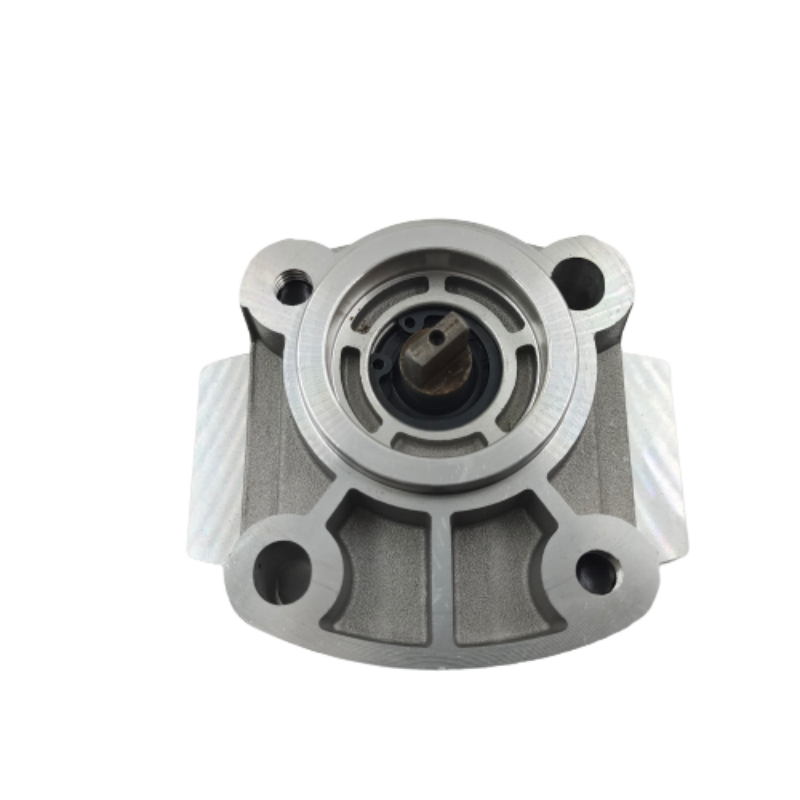

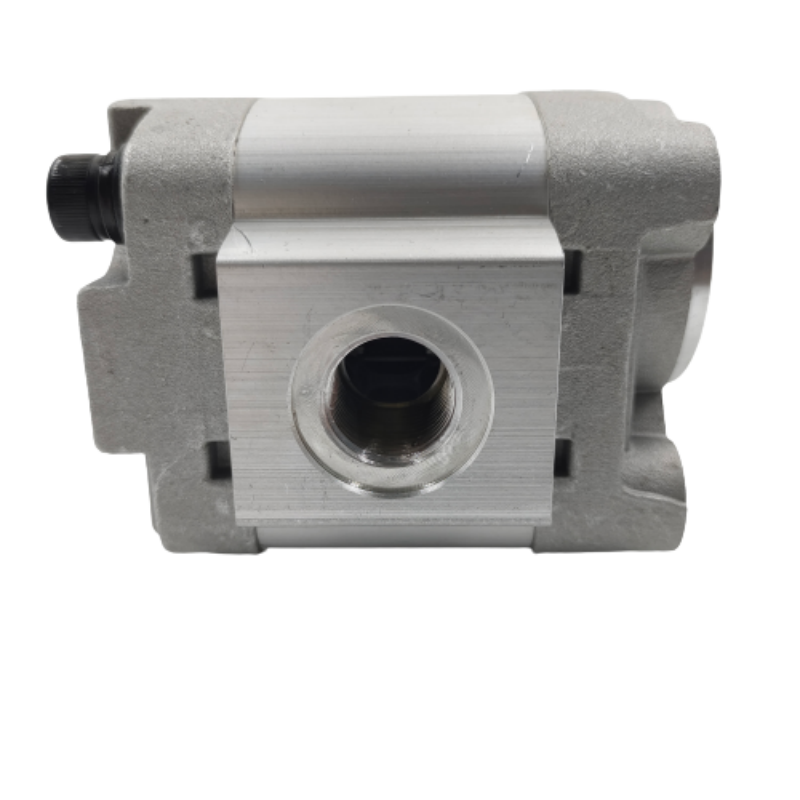

CBQZ Series Special Gear Pump for Truck Tail Lift, Hydraulic Power Oil Pump for Cargo Tailgate
CBQZ series gear pumps are core power components customized for hydraulic systems of truck, van and refrigerated vehicle tail lifts, compatible with all 12V/24V tailgate power units, covering mainstream displacements: 1.1/1.2/1.6/2.1/2.5/3.2mL/r. Adopting high-strength aluminum alloy housing and automatic axial clearance compensation structure, optimized for tail lift working conditions of frequent start-stop, heavy load impact and temperature fluctuation. Rated pressure 16-20MPa, peak pressure up to 25MPa, volumetric efficiency ≥90%. It delivers stable lifting performance, ultra-low leakage and excellent durability, widely used for OEM and refitting of all brands truck tail lifts such as Kaizhuoli, Anzhong, Dacheng.

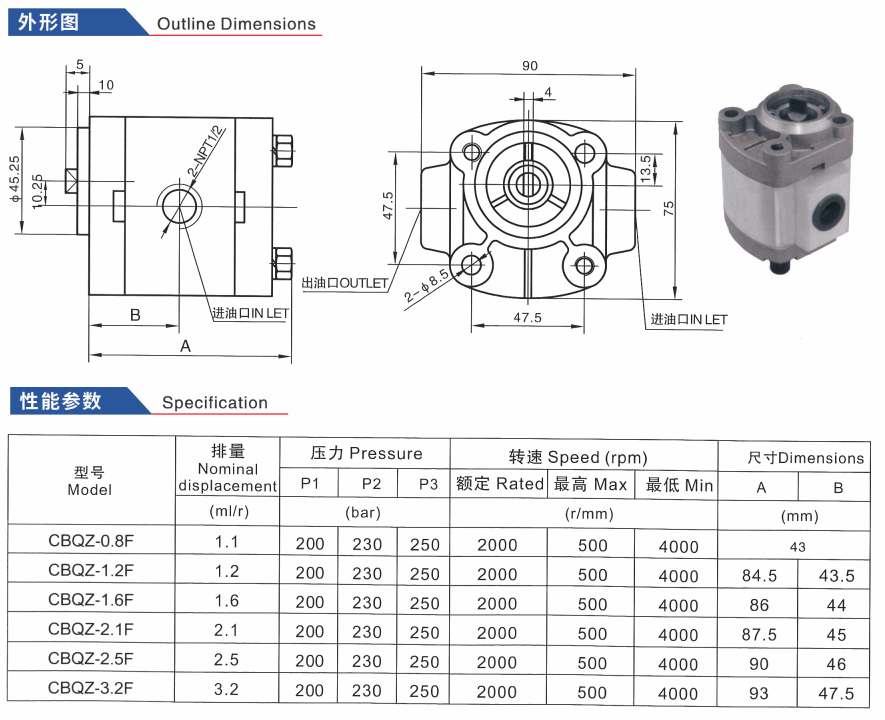

Model | Nominal displacement | Pressure | Speed(rpm) | Dimensions | |||||
| P1 | P2 | P3 | Rated | M a x | Min | A | B | ||
| (ml/r) | (bar) | (r/mm) | (mm) | ||||||
| CBQZ-0.8F | 1.1 | 200 | 230 | 250 | 2000 | 500 | 4000 | 43 | |
| CBQZ-1.2F | 1.2 | 200 | 230 | 250 | 2000 | 500 | 4000 | 84.5 | 43.5 |
| CBQZ-1.6F | 1.6 | 200 | 230 | 250 | 2000 | 500 | 4000 | 86 | 44 |
| CBQZ-2.1F | 2.1 | 200 | 230 | 250 | 2000 | 500 | 4000 | 87.5 | 45 |
| CBQZ-2.5F | 2.5 | 200 | 230 | 250 | 2000 | 500 | 4000 | 90 | 46 |
| CBQZ-3.2F | 3.2 | 200 | 230 | 250 | 2000 | 500 | 4000 | 93 | 47.5 |
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
