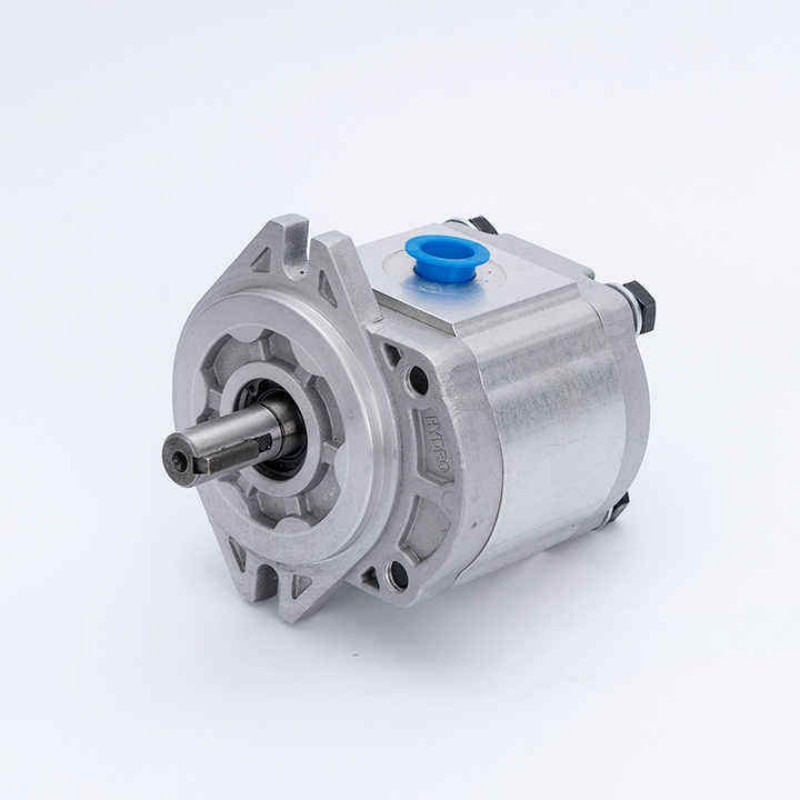

CBW-F3 Series High Pressure External Gear Pump / CBW-F3 Hydraulic Gear Oil Pump

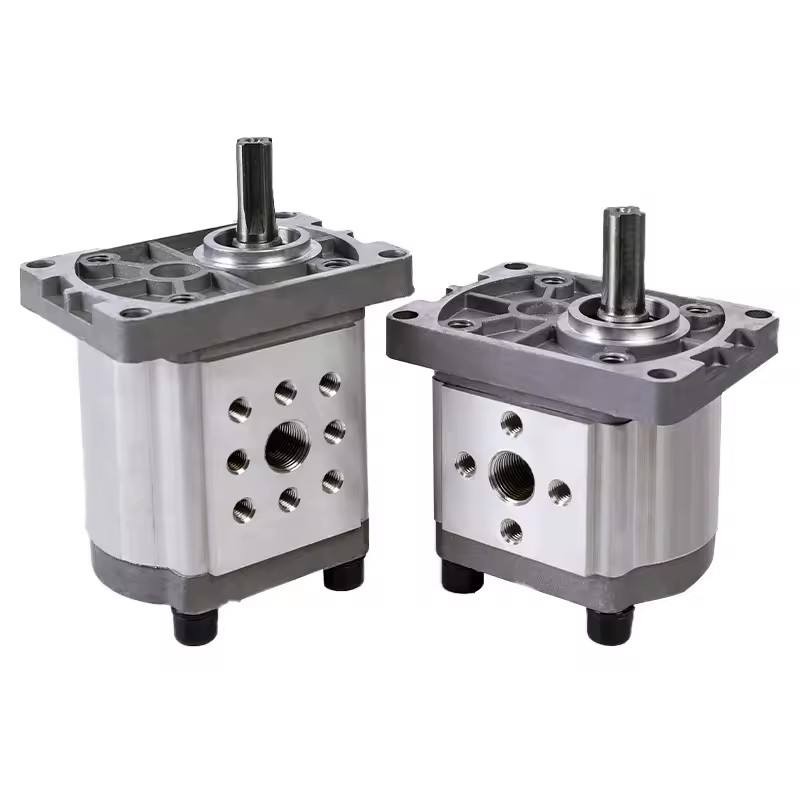

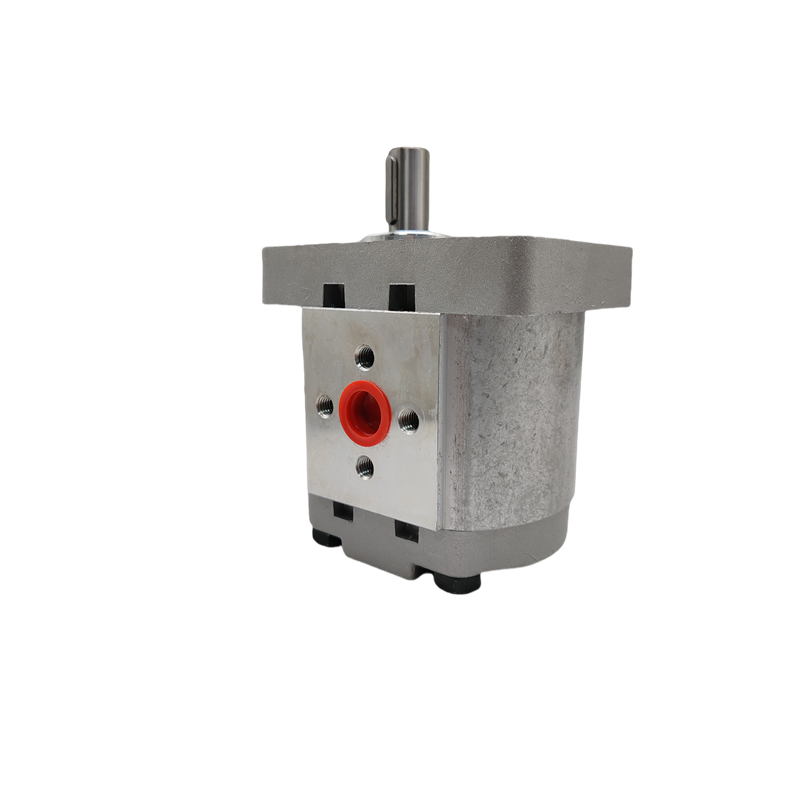

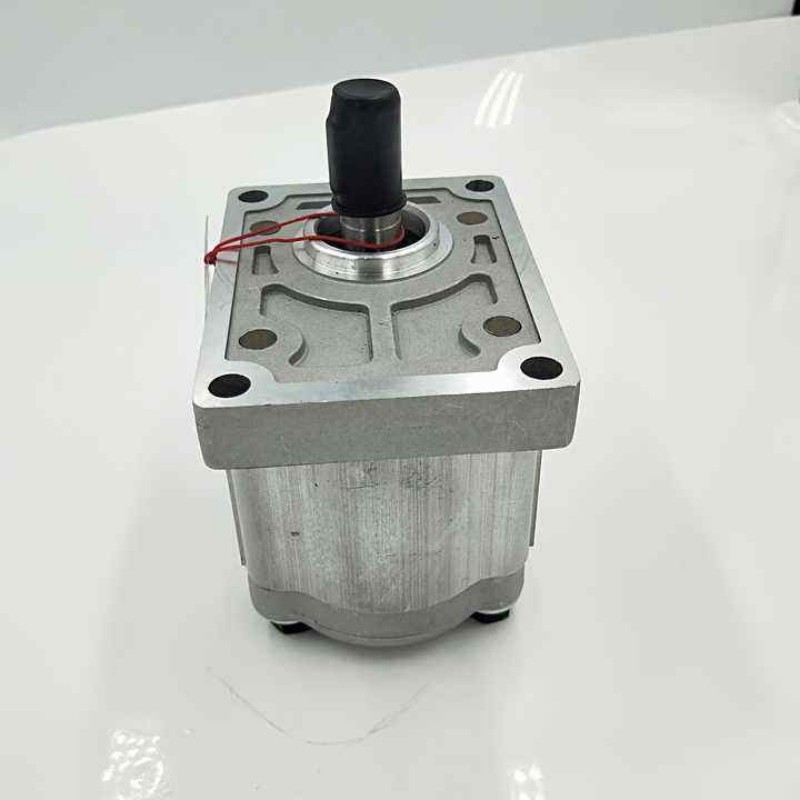

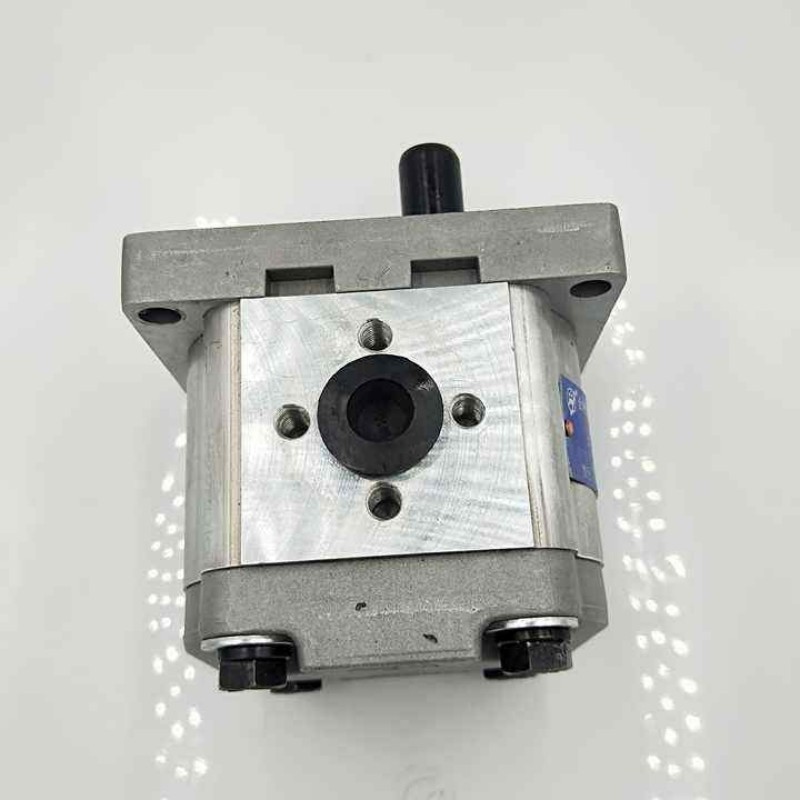

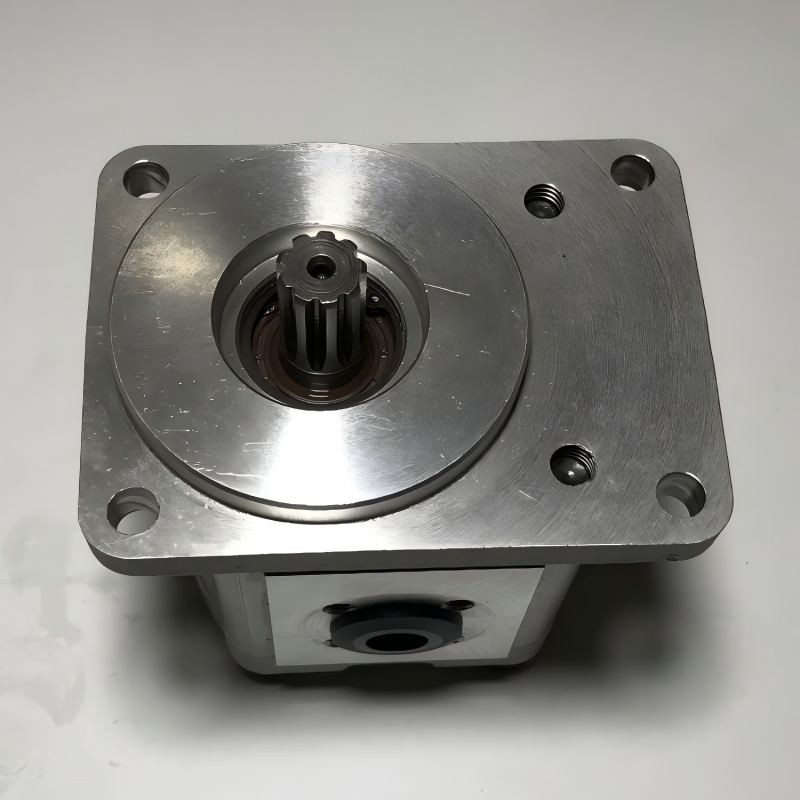

CBW-F3 series is a 3-piece high-pressure external gear pump equipped with dual core structures of automatic axial clearance compensation and radial hydraulic balance. The housing is integrally cast from high-strength aluminum alloy with built-in DU self-lubricating wear-resistant bushings, rated working pressure up to 20MPa. Complete displacement options with customizable flanges, shaft ends and oil ports are available. It maintains volumetric efficiency over 90% steadily, featuring low noise, strong anti-pollution performance and long service life, serving as a standard hydraulic power unit widely used in construction machinery, agricultural equipment, material handling and mini hydraulic power stations.

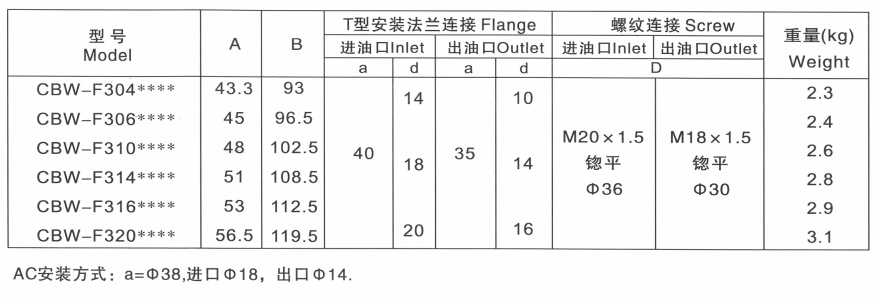

Model | (ml/r) Nominal Displacement | (MPa)Pressure | (r/min)Speed | (≥%) Vojumetric efficiency | (kw) Input Powel | ||
| Rated | Max | Rated | Max | ||||
| CBW-F304 | 4 | 20 | 25 | 2000 | 3000 | ≥92 | 3.8 |
| CBW-F306 | 6 | 5.7 | |||||
| CBW-F310 | 10 | 9.6 | |||||
| CBW-F314 | 14 | 12.5 | |||||
| CBW-F316 | 16 | 15.0 | |||||
| CBW-F320 | 20 | 20.0 | |||||
| CBW-F325 | 25 | 21.2 | |||||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Q: What's the lead time for orders?
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
