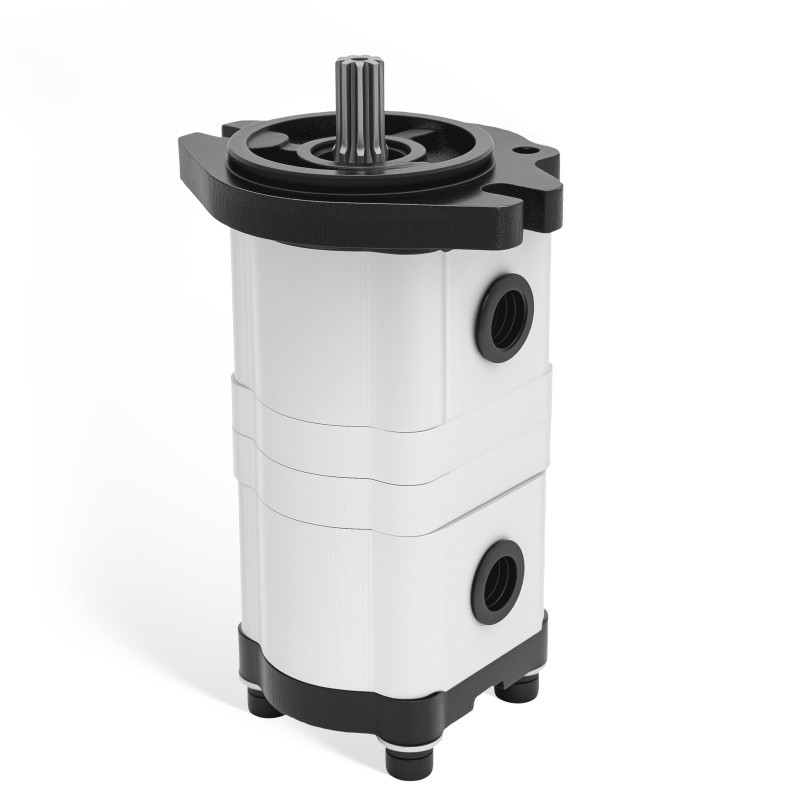

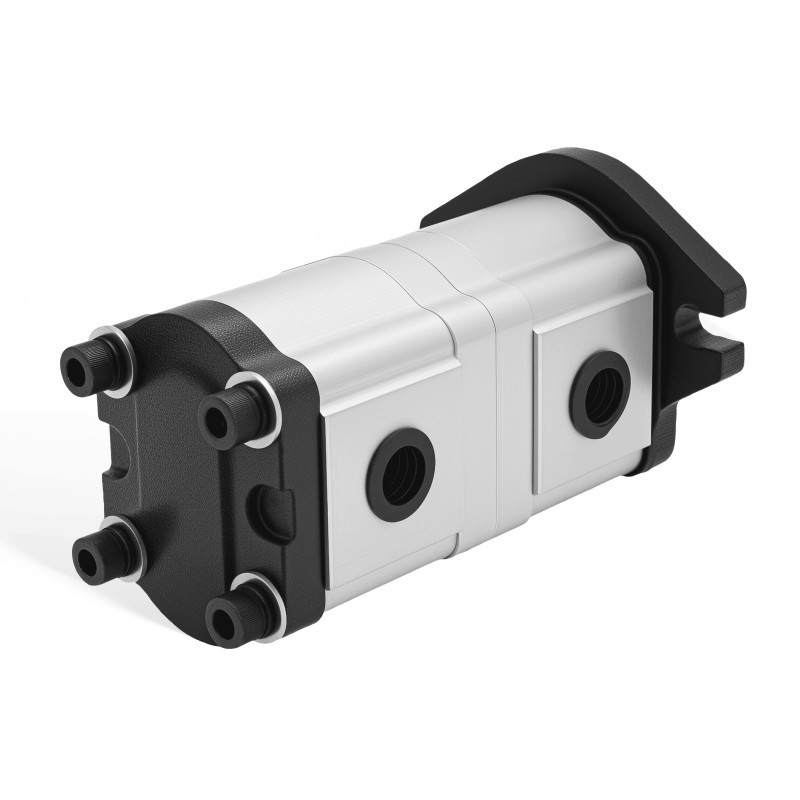

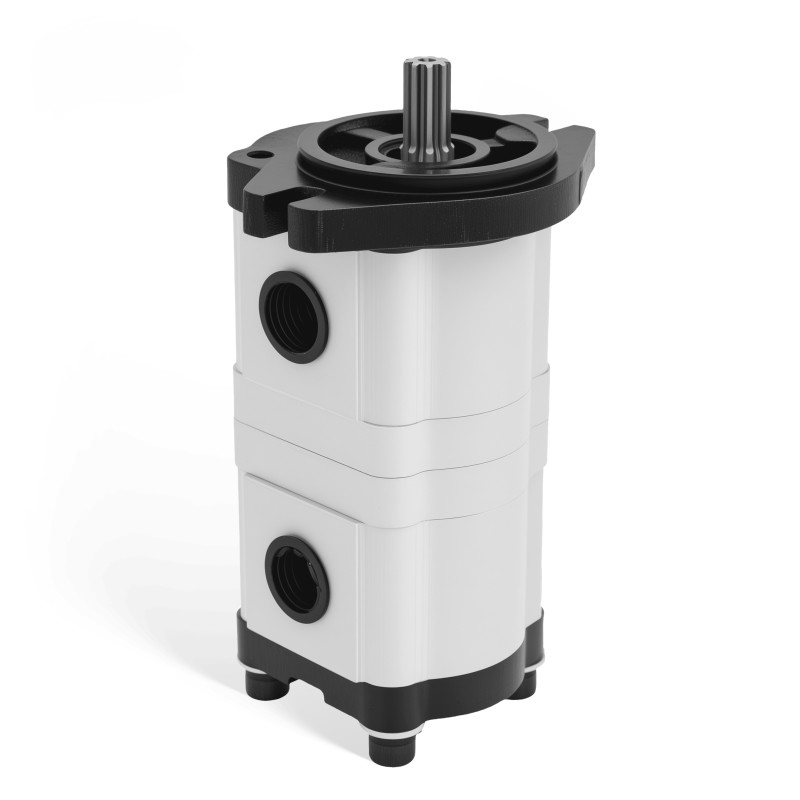

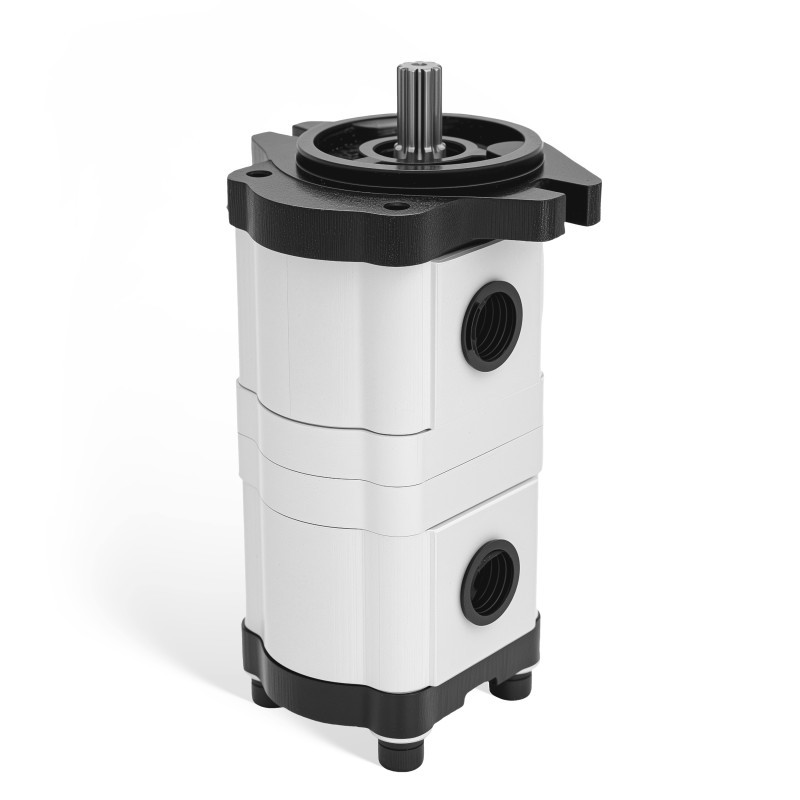

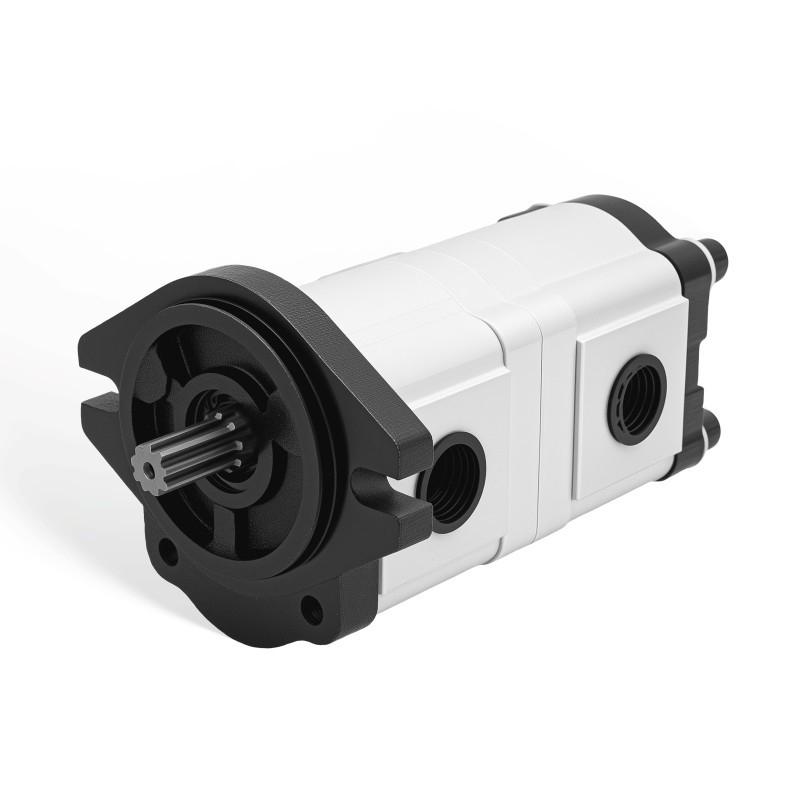

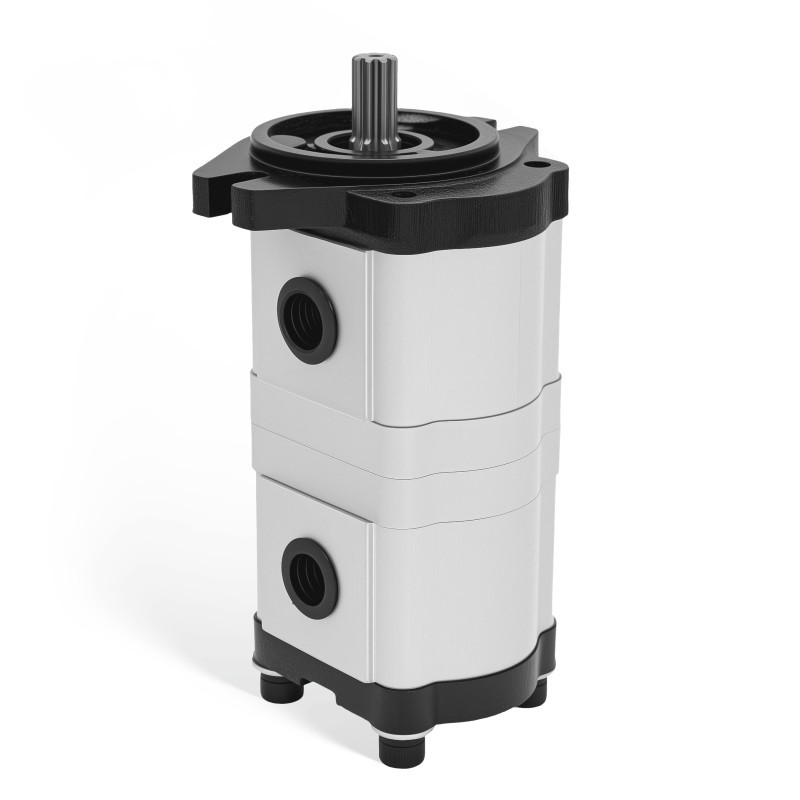

CBNL-E300 Series Medium Pressure Tandem Gear Pump, Aluminum Alloy Double Hydraulic Gear Oil Pump for Agricultural Machinery
CBNL-E300 tandem gear pump is a medium-pressure dual hydraulic power unit of 3 series, with rated working pressure 16MPa and maximum instantaneous pressure 20MPa. Adopting coaxial integrated tandem structure, one driving shaft provides two independent hydraulic oil outlets, which can supply oil for steering and working actuator circuits simultaneously. The pump housing is made of high-strength die-cast aluminum alloy, equipped with precision ground gears, floating bushings and DU wear-resistant bushes, with automatic axial clearance compensation design. It features high volumetric efficiency, stable flow output, low noise and excellent self-priming performance.

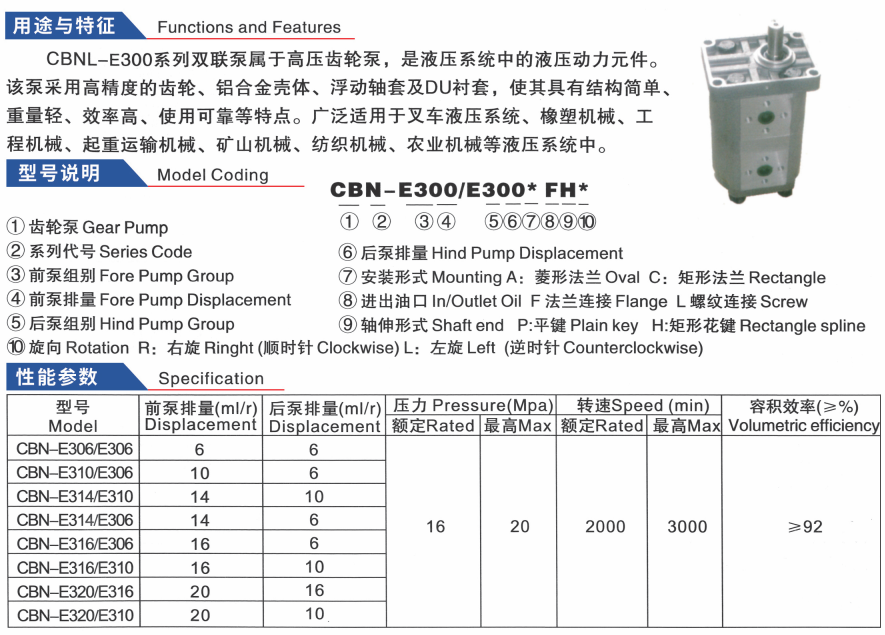

Model | (ml/r) Displacement | (ml/r) Displacement | Pressure(Mpa) | Speed(min) | (≥%) Volumetric efficiency | ||
| Rated | Max | Rated | Max | ||||
| CBN-E306/E306 | 6 | 6 | 16 | 20 | 2000 | 3000 | ≥92 |
| CBN-E310/E306 | 10 | 6 | |||||
| CBN-E314/E310 | 14 | 10 | |||||
| CBN-E314/E306 | 14 | 6 | |||||
| CBN-E316/E306 | 16 | 6 | |||||
| CBN-E316/E310 | 16 | 10 | |||||
| CBN-E320/E316 | 20 | 16 | |||||
| CBN-E320/E310 | 20 | 10 | |||||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Q: What's the lead time for orders?
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
