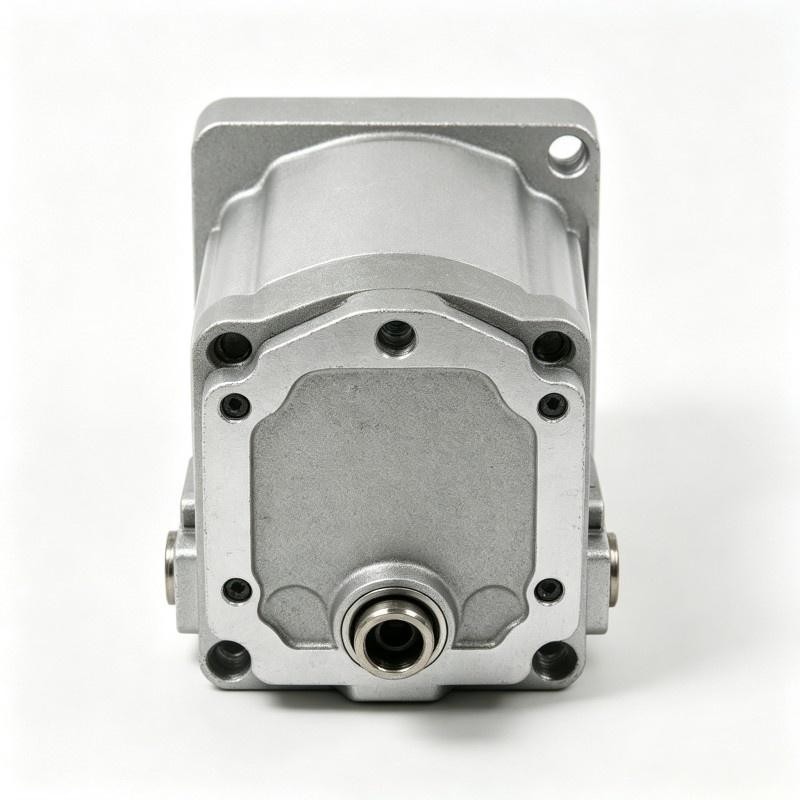

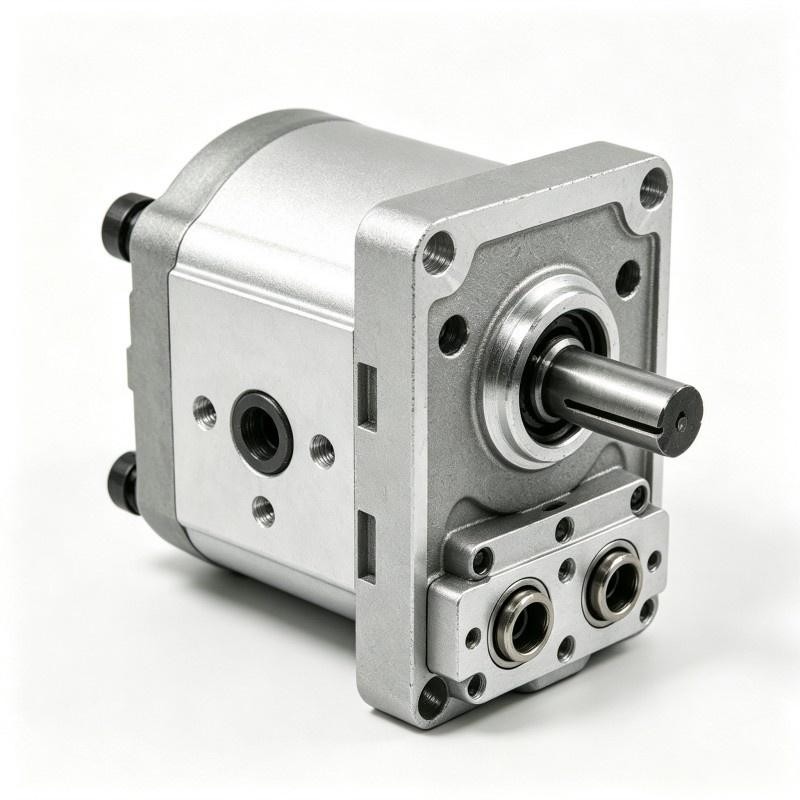

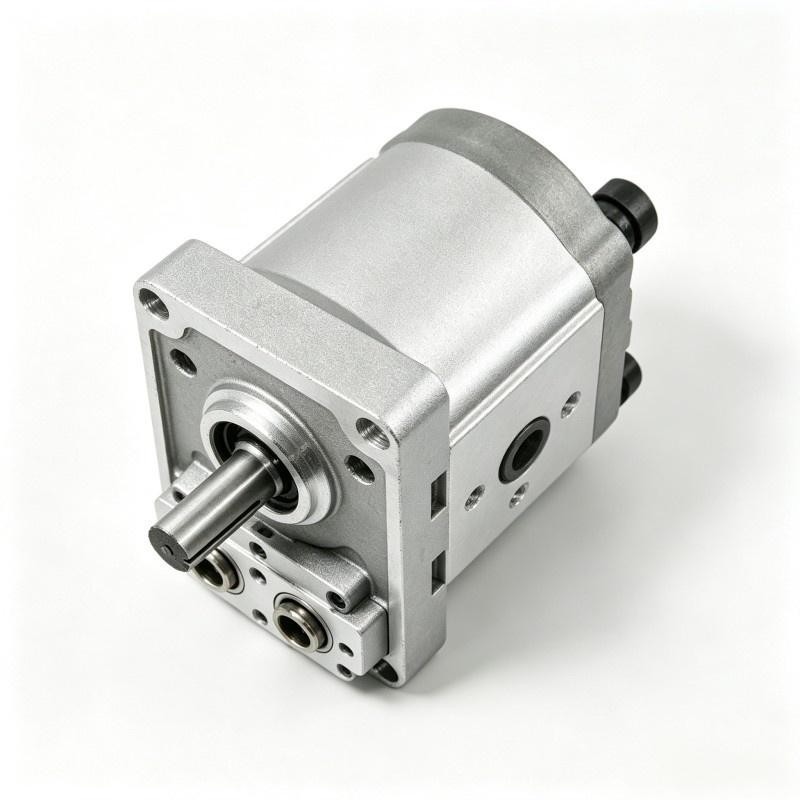

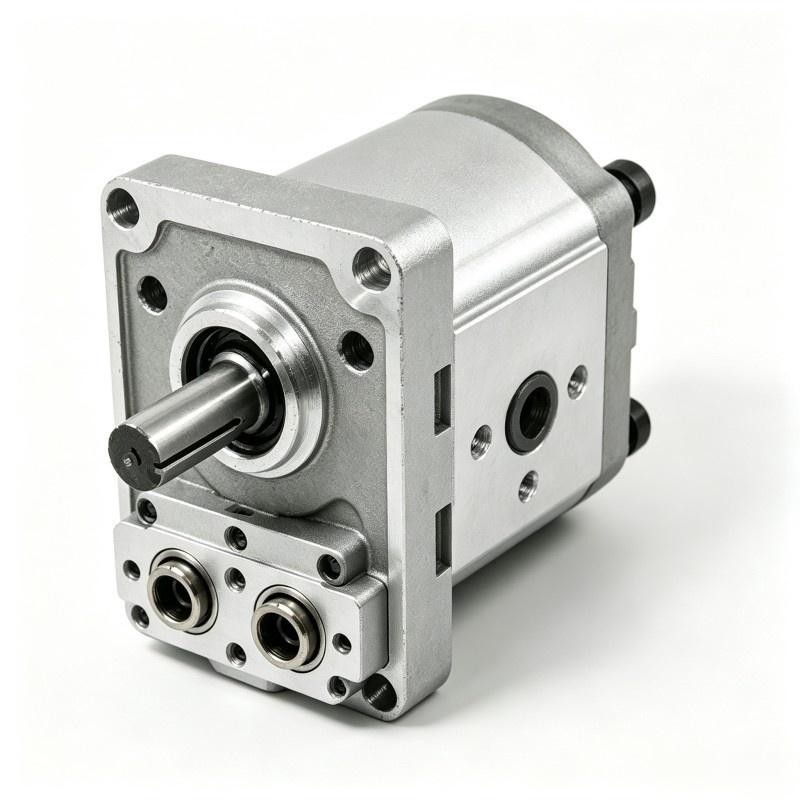

CBS/F-D300 Series Bidirectional Composite Gear Pump
CBS/F-D300 series bidirectional composite gear pump is high-pressure upgraded version of CBS series with 20MPa rated pressure and thickened reinforced housing. Built-in check valves realize bidirectional oil supply without external directional valve. Displacement ranges from 2.1 to 14mL/r, optional parallel key/involute spline shaft, thread/flange port and custom built-in relief valve. Standard SAE flange allows direct replacement of standard CBS pump. Lightweight aluminum housing widely used for forklifts, agricultural machinery and sanitation vehicles.

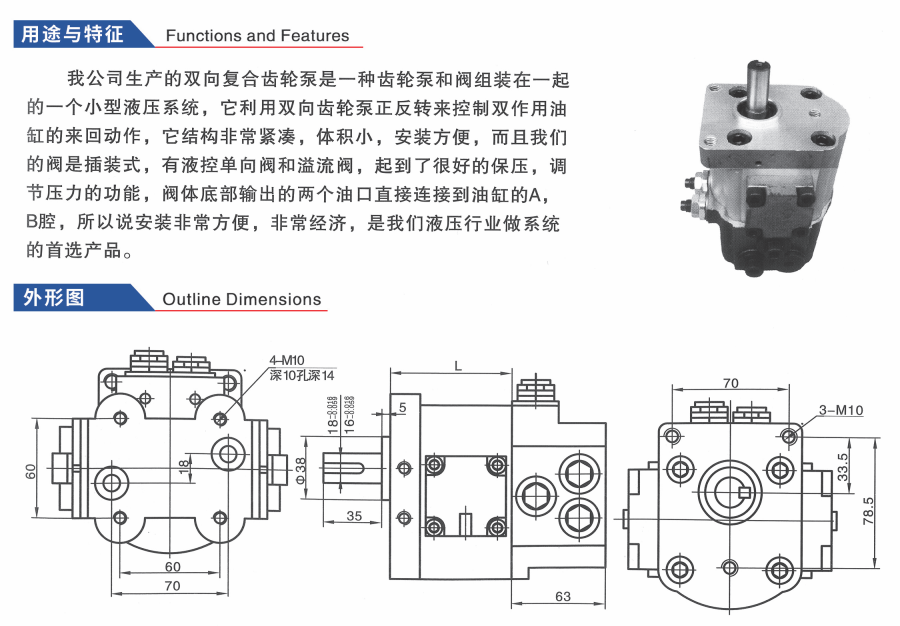

Model | (ml/r) Nominal displacement | Pressure(Mpa) | Speed (r/min) | (≥%) Volumetric efficiency | L | ||
| Rated | Max | Rated | Max | ||||
| CBS-D304 | 04 | 12 | 14 | 1500 | 2000 | 80 | 131.5 |
| CBS-D306 | 06 | 135 | |||||
| CBS-D308 | 08 | 138 | |||||
| CBS-D310 | 10 | 141 | |||||
| CBS-D312 | 12 | 144 | |||||
| CBS-D314 | 14 | 147 | |||||
| CBS-D316 | 16 | 150 | |||||
| CBS-D318 | 18 | 153.5 | |||||
| CBS-D320 | 20 | 157 | |||||
| CBS-D325 | 22 | 164 | |||||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
