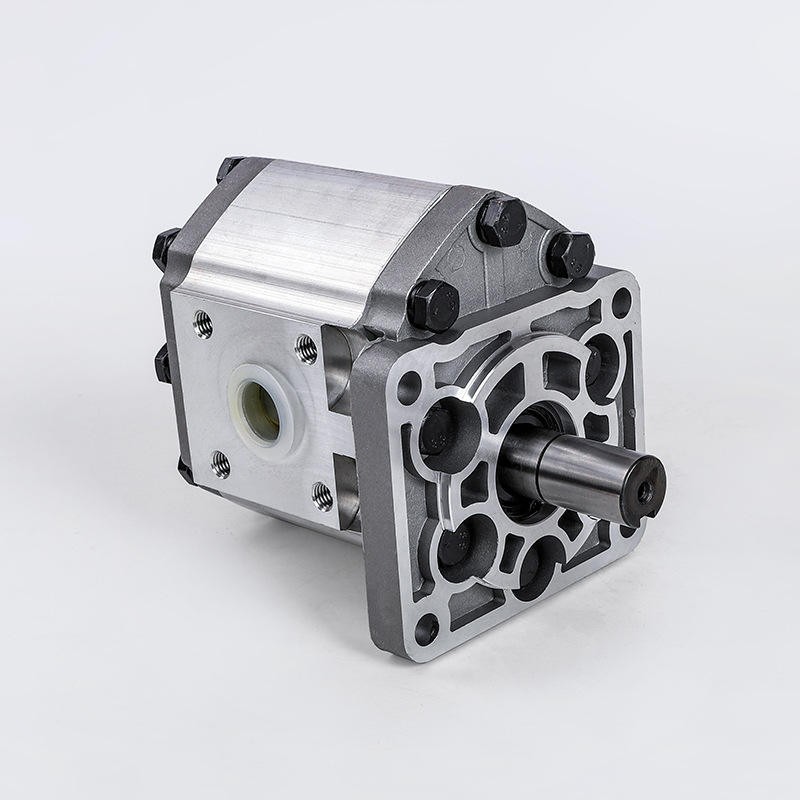

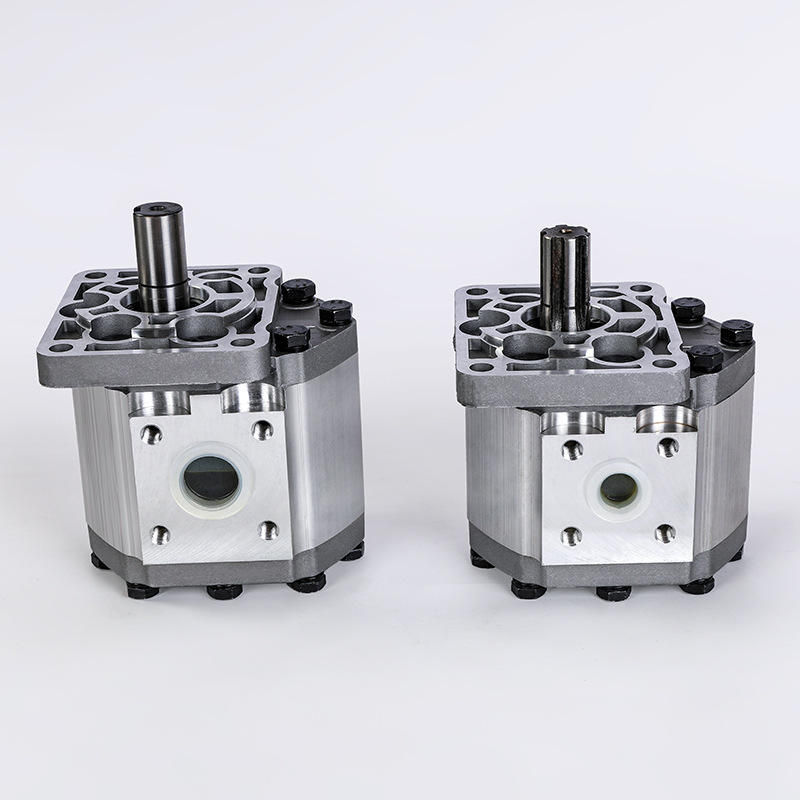

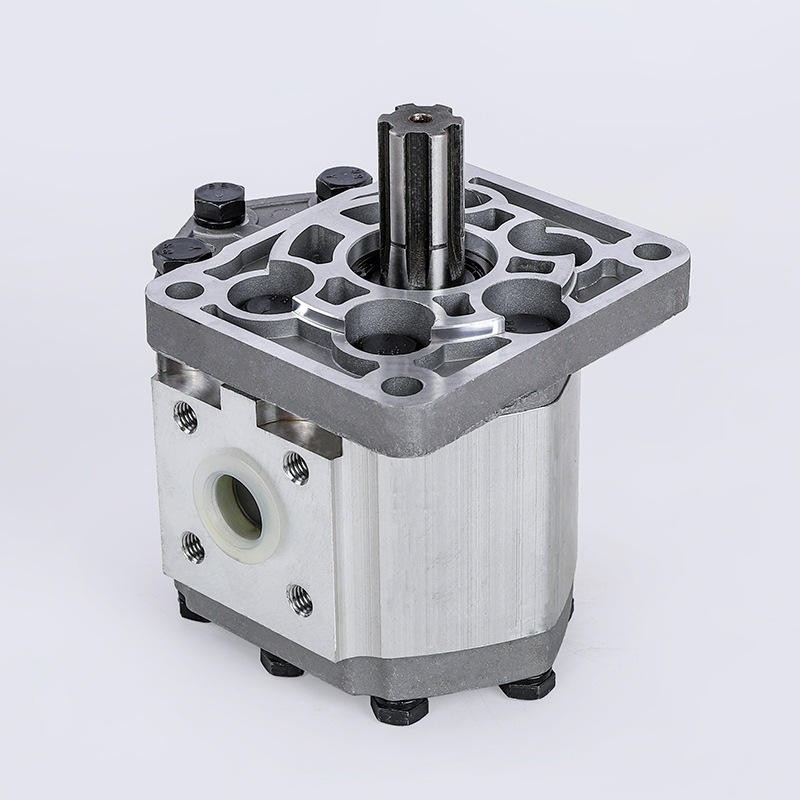

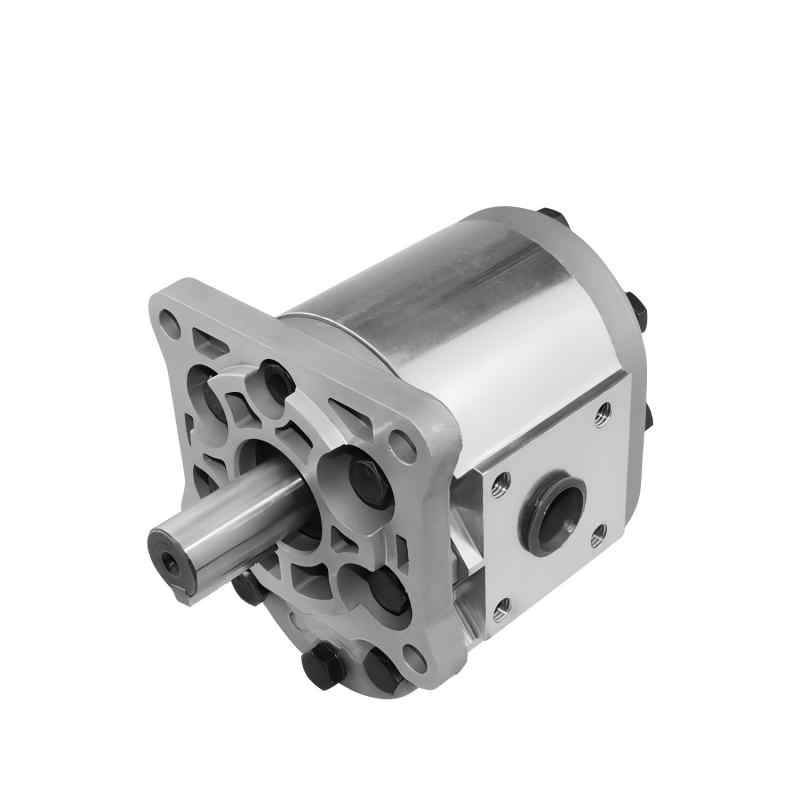

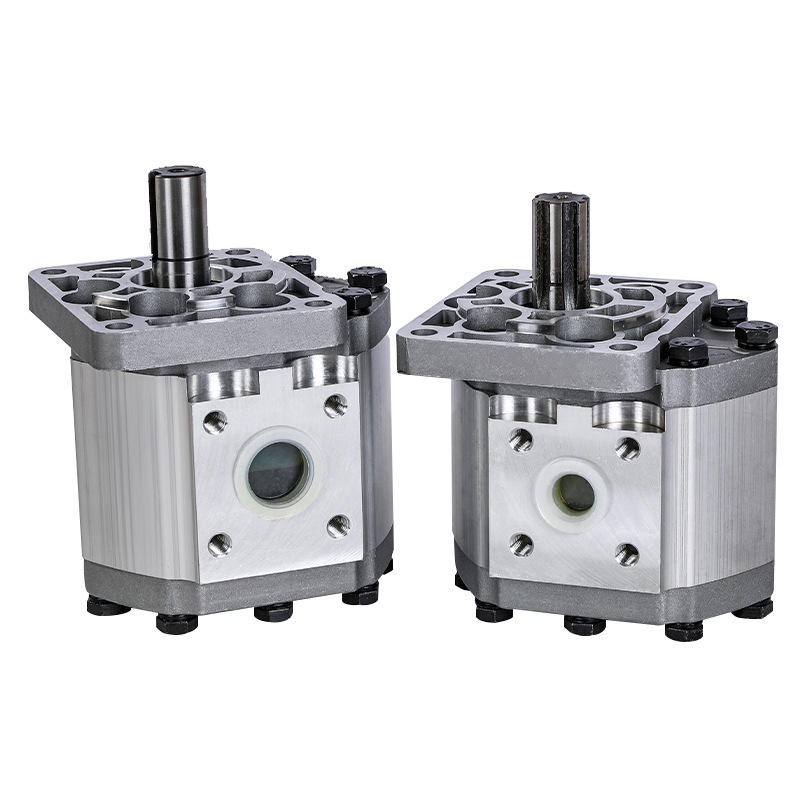

CBT-F500 Series High Pressure External Gear Pump
CBT-F500 series high-pressure external gear pump is designed for high-flow heavy-duty working conditions. Equipped with thickened aluminum housing and widened DU floating bushings, it delivers stable large flow with 20MPa rated pressure and 25MPa peak pressure. Optimized gear profile reduces flow pulsation for low-noise and wear-resistant operation. Straight key, flat, spline shafts and CW/CCW rotation are customizable. Widely used in large agricultural machinery, heavy construction vehicles and vehicle hydraulic systems. Every pump passes full pressure test before delivery with 12-month warranty.

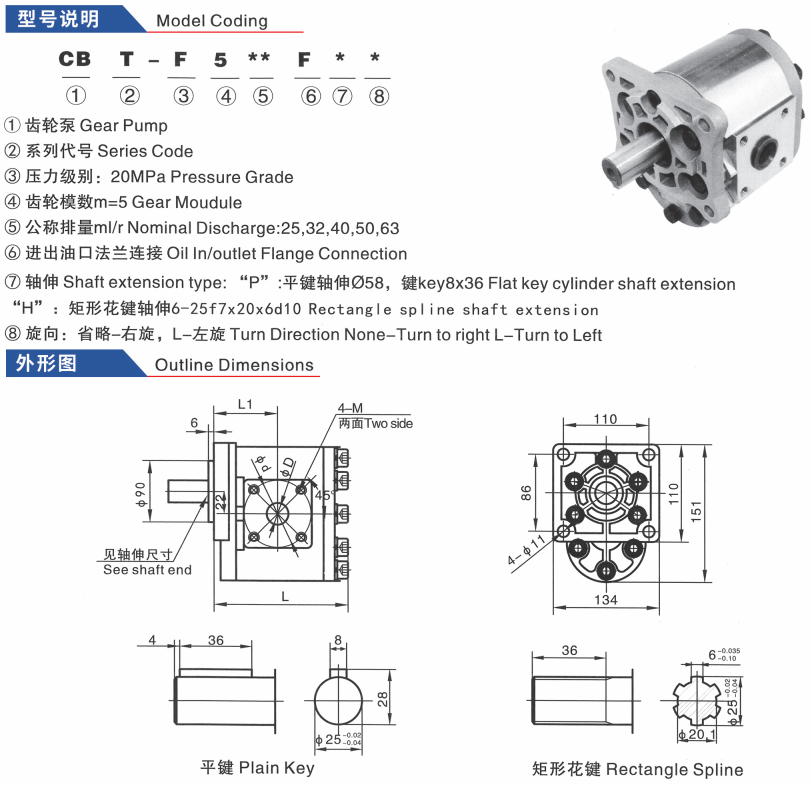

Model | (ml/r) Nominal displacement | Pressure (Mpa) | Speed (rpm) | L | L1 | Ød | D | M | ||||
Rated | Max | Min | Rated | Max | Inlet | Outlet | ||||||
| CBT-F525 | 25 | 20 | 25 | 2000 | 3000 | 600 | 127 | 66 | 50 | Ø20 | Ø20 | M8 |
| CBT-F532 | 32 | 20 | 25 | 2000 | 3000 | 600 | 130 | 66 | 65 | Ø24 | Ø20 | M8 |
| CBT-F540 | 40 | 20 | 25 | 2000 | 3000 | 600 | 132 | 66 | 65 | Ø30 | Ø24 | M8/10 |
| CBT-F550 | 50 | 20 | 25 | 2000 | 3000 | 600 | 136 | 72 | 76 | Ø30 | Ø30 | M8/10 |
| CBT-F563 | 63 | 20 | 25 | 2000 | 3000 | 600 | 142 | 72 | 76 | Ø30 | Ø24 | M8/10 |
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Q: What's the lead time for orders?
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
