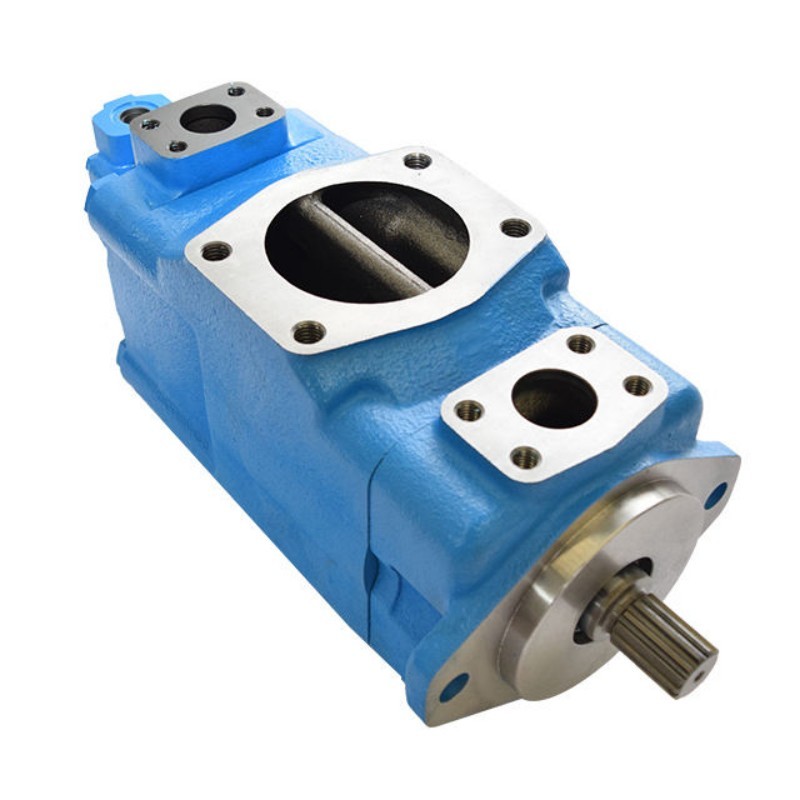

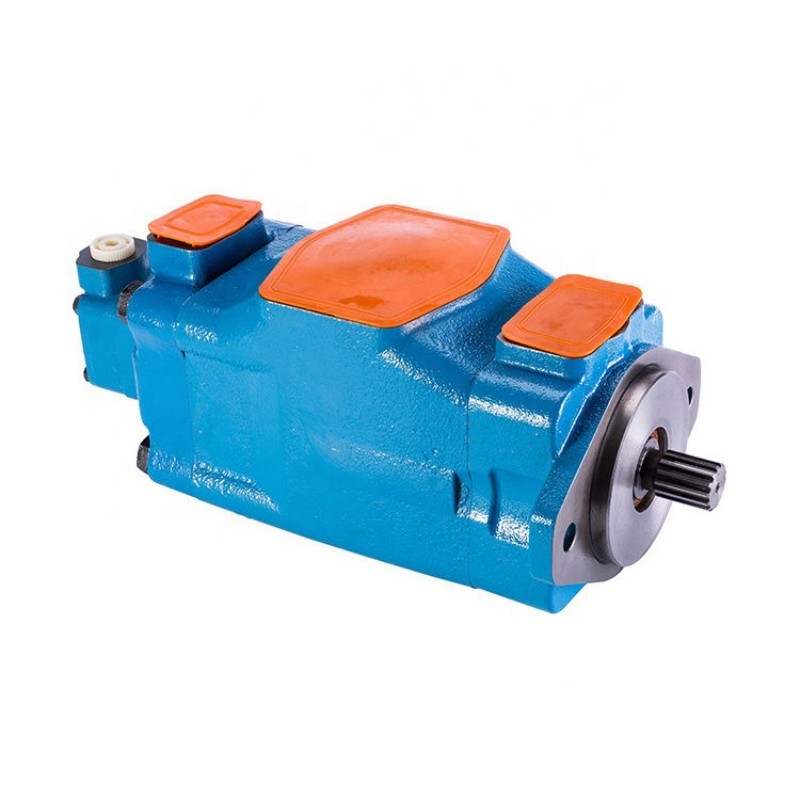

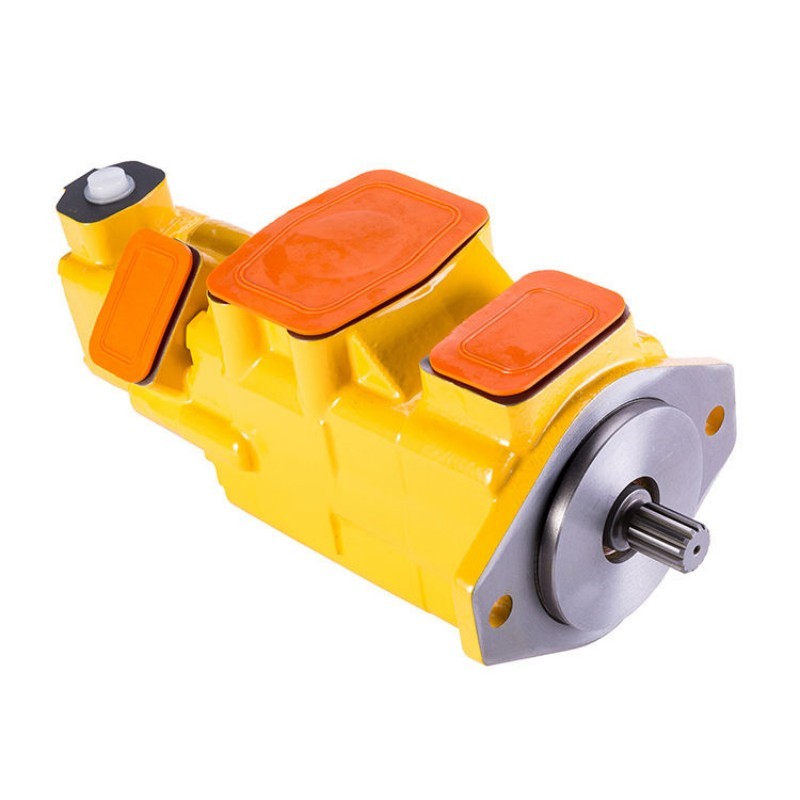

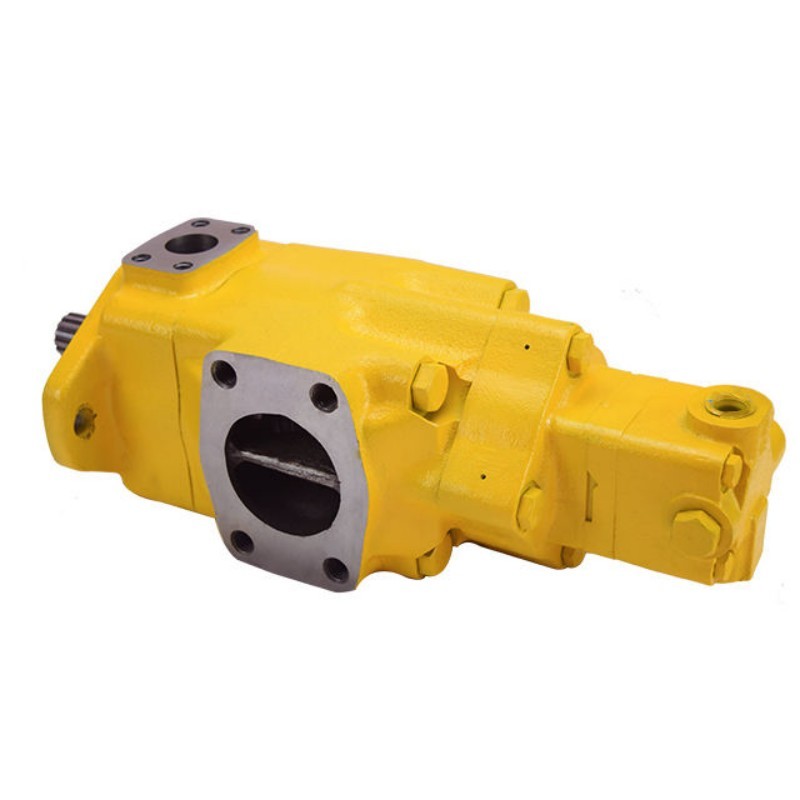

V VQ Triple Series Balanced Intra Vane Pumps

V VQ Triple Series Balanced Intra Vane Pumps
Twelve custom attributes cover all core parameters of V VQ triple vane pumps including series three stage combined structure vane type pressure grade clearance compensation structure rotor design maintenance mode port specification rotation direction and applicable fluid. They support website product filtering and parameter display to help customers of large hydraulic equipment match three high low pressure cartridges as required.

Product Details

Product Tags

Product Description

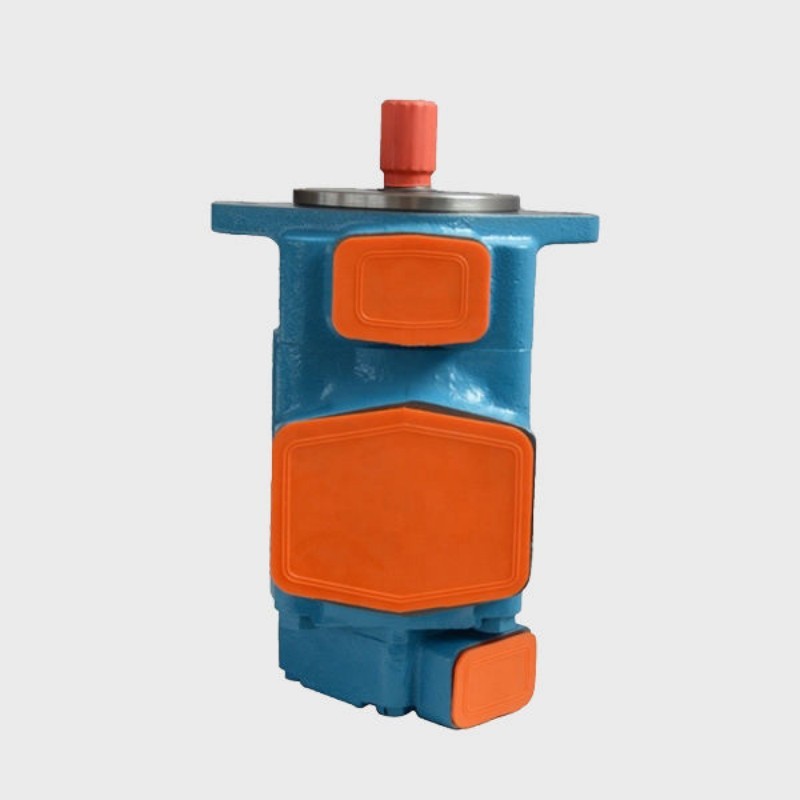

V VQ triple vane pumps adopt integrated three cartridge tandem structure, supporting flexible combination of low pressure V frames and high pressure VQ frames. Equipped with hydraulically balanced intra vane structure and floating bimetal side plate clearance compensation, the pump delivers low flow pulsation and quiet operation. Only one driving motor provides three independent hydraulic oil circuits. Pressure and displacement of three oil channels work separately to supply power for main movement rapid feed and pilot control loops. Modular insert cartridge simplifies maintenance, oil ports are adjustable at multiple angles. Suitable for complex multi circuit hydraulic systems of large injection molding machines die casting equipment CNC machine tools and construction machinery. One power unit replaces three separate oil pumps to save installation space and reduce supporting cost, fully interchangeable with imported triple vane pumps of same specifications.

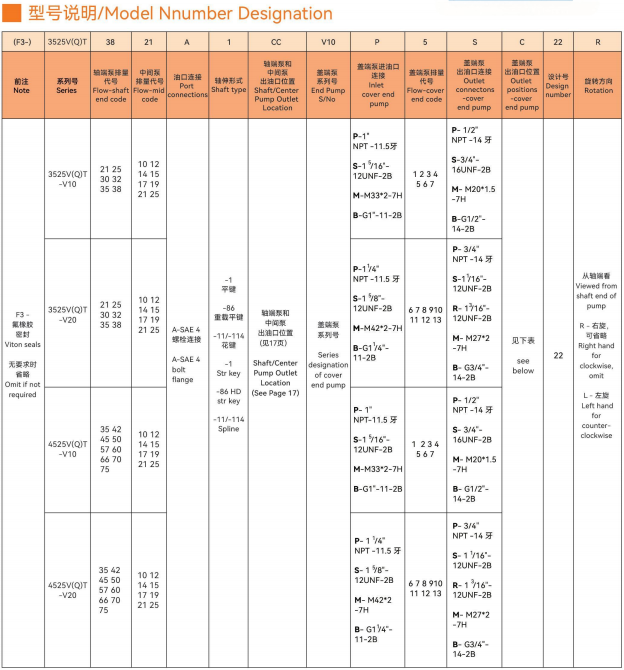

V/VQ,Series-Triple Vane Pump

(F3)2520VQ
SV10S		-21 A7 -P7 -86 CBC-20 R
Note
Series
Flow-shaft
end code
Double
pump port
connection
Flow-mid
code
Flow-cover
end pump port
connetion
Flow-cover
end code
Shaft type
NO.1 Outlet
positions
NO.2 Outlet
positions
NO.3 Outlet
positions
Design
number
Rotation

No-mark-
ing:

Petroleum
series oil

emulsification
fluid

water
glycol-fluid
F3:
phosphate
ester fluid
2520VQ
SV10S
1012141517192125		A-SAE
4

4-SAE
4-bolt
flange		2345678
910111214		1/2"NPT-141234567 -86

Shaft
see
below
see
below
   see
  below		-20
Viewed from
shaft end of
pump

R-
right hand for
clockwise

L-
left hand for
counter-
clockwise

3520VQ
SV10S
212530323538
2345678
910111214

3525VQ
SV10S
212530323538
1012141517192125

4520VQ
SV10S		35424550
57606665
7075
2345678
910111214

4525VQ
SV10S		35424550
57606665
7075
1012141517192125

4535VQ
SV10S		35424550
57606665
7075		212530323538


  • Pin-supported vane design reduces friction and wear

  • High pressure capability with stable performance

  • Low noise and low vibration operation

  • High volumetric efficiency

  • Long service life and reliable operation

  • Suitable for continuous and heavy-duty applications

Applications

  • Industrial hydraulic power units

  • Injection molding machines

  • Press machines

  • Machine tools

  • Die casting equipment

  • Metallurgical and heavy-duty machinery
