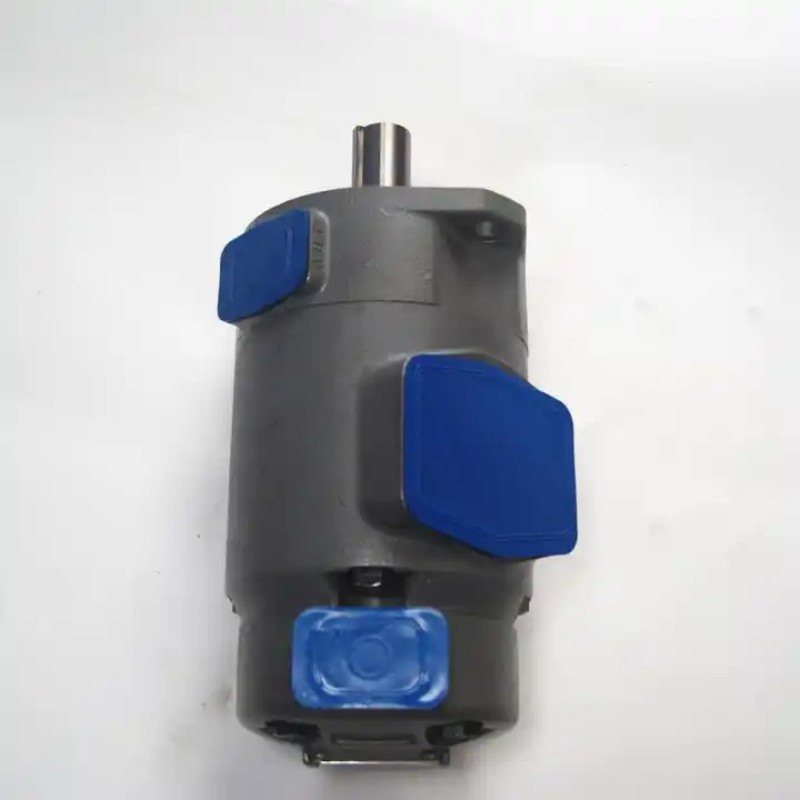

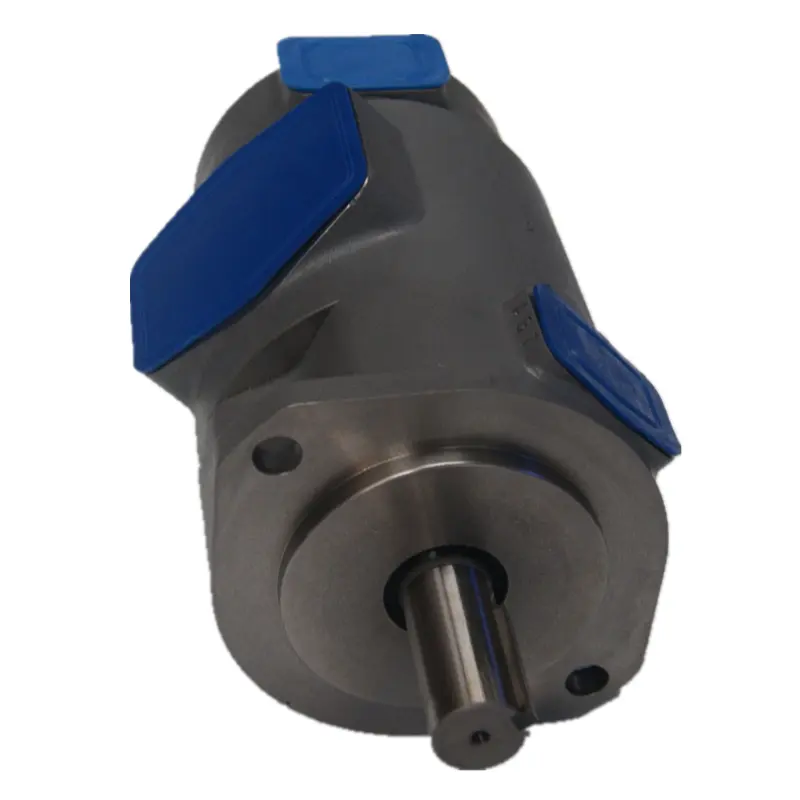

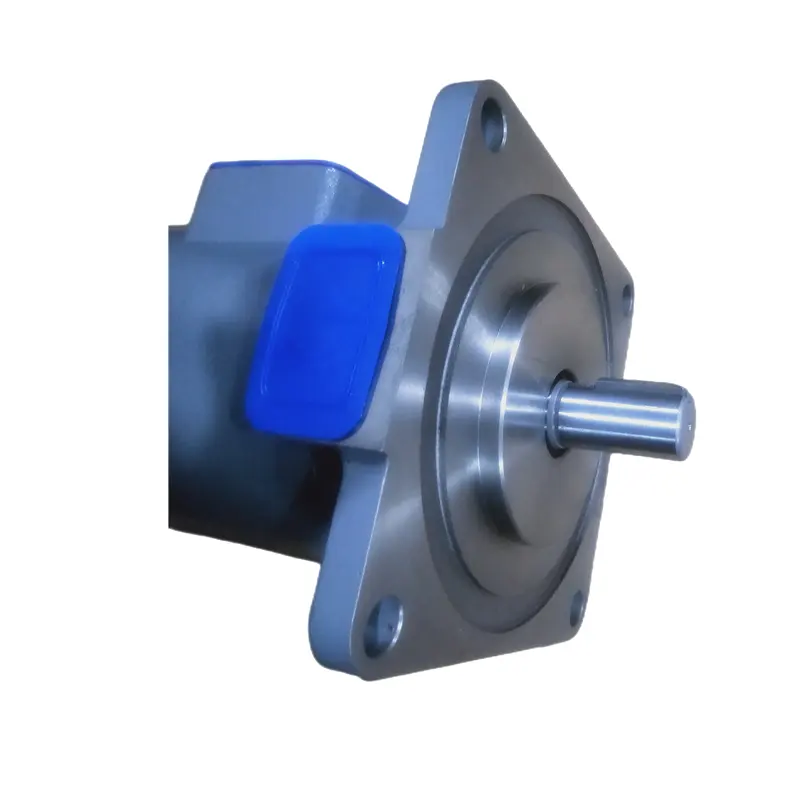

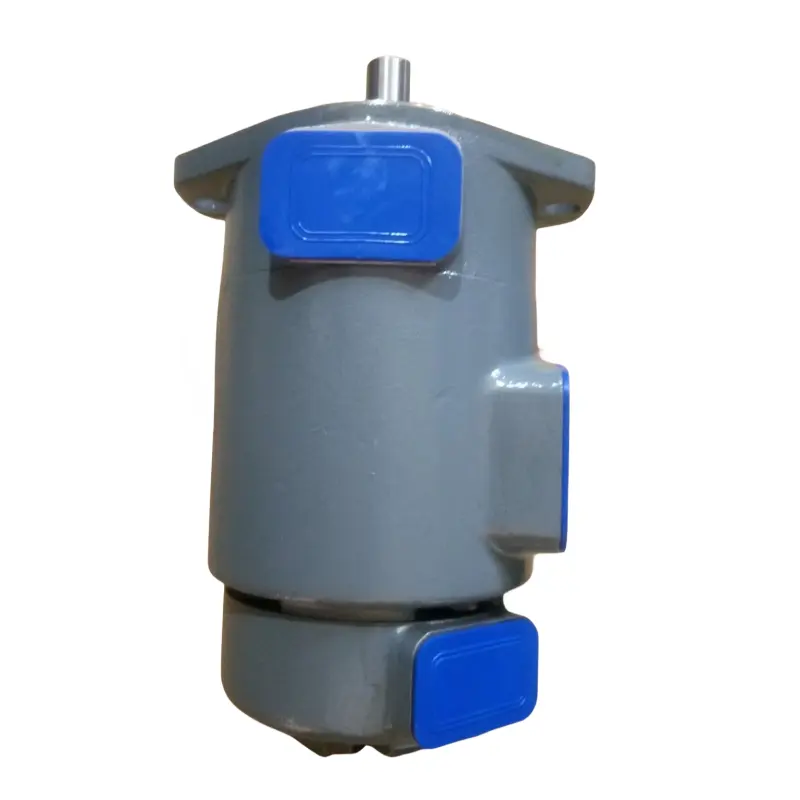

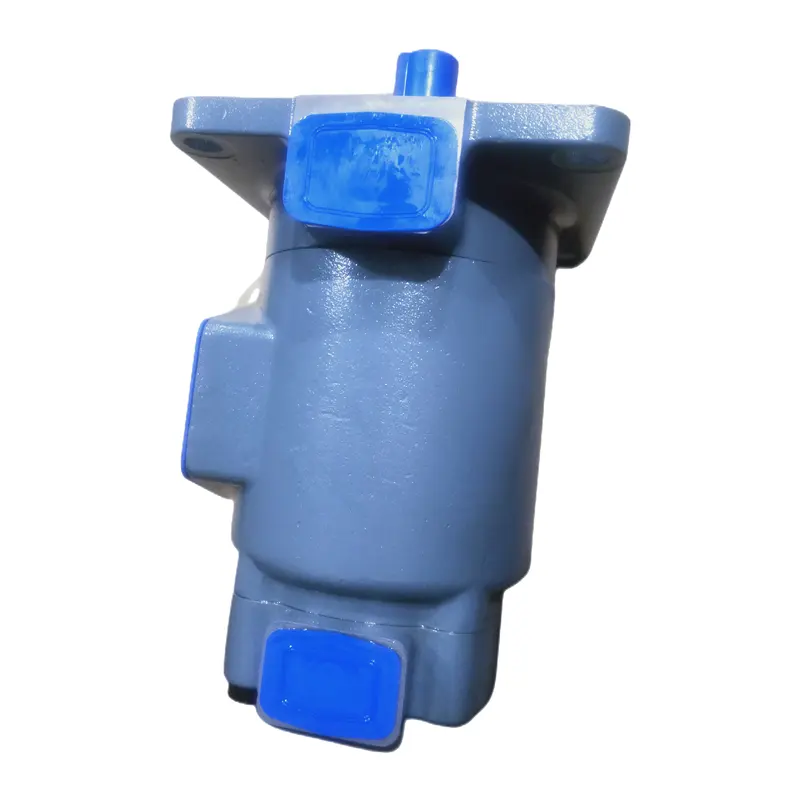

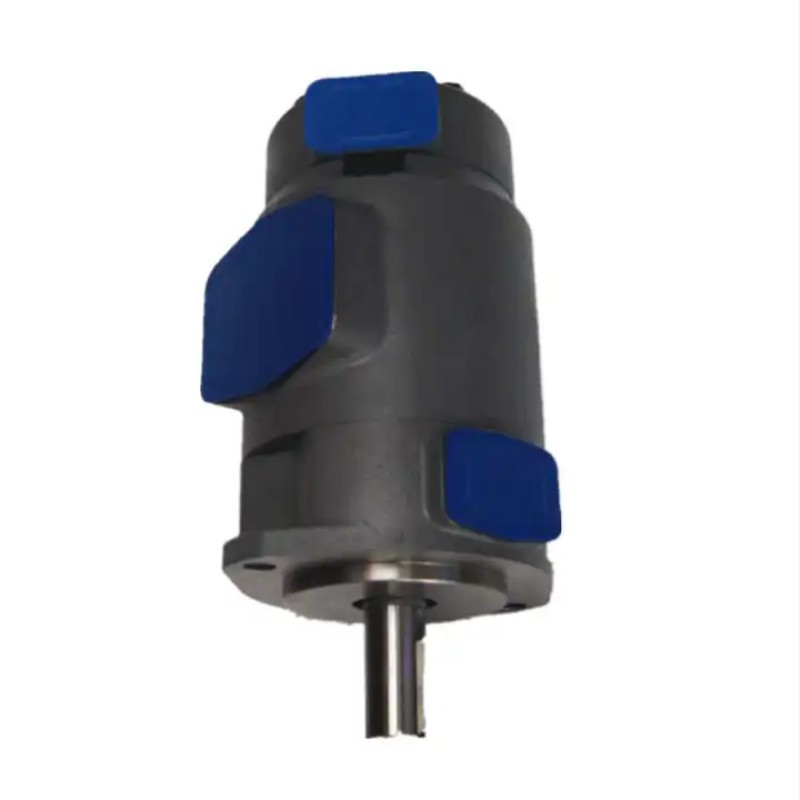

SQP Series Triple Fixed Displacement Vane Pump

SQP Series Triple Fixed Displacement Vane Pump
SQP triple vane pump is assembled with three groups of cartridges with various displacement combinations. Adopting pressure balanced intra-vane structure, it operates smoothly with low noise. Each cartridge can be disassembled and replaced independently for convenient maintenance. It can supply multiple independent hydraulic oil sources simultaneously. Flange and port dimensions are interchangeable with original pumps, widely used in large injection molding machines, die casting machinery and mu

Product Details

Product Tags

Product Description

SQP series triple fixed displacement vane pump consists of three independent pump cartridges. Three displacements can be freely matched to supply power for multiple hydraulic circuits separately. Featuring stable operation and low noise, it adopts precision cam ring and vane structure with high volumetric efficiency. It is widely applied to multi-circuit hydraulic equipment and serves as the preferred power component for injection molding machinery, machine tools and construction machinery.

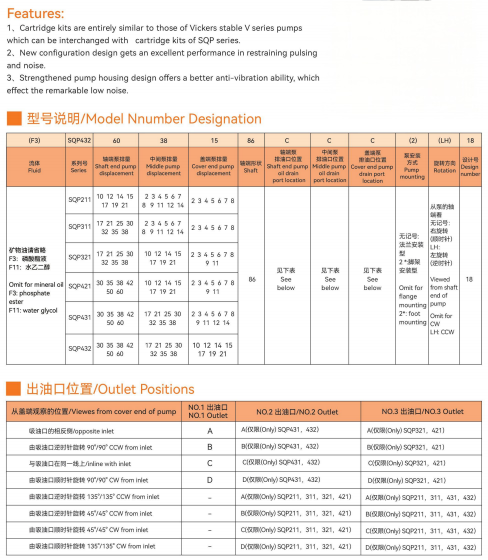

SQP,Series-Triple Vane Pumps

(F3)SQP43260 38 15 86 CCC(2)(LH)18

Fluid
Series
Shaft end pump
displacement
Middle pump
displacement
Cover end pump
displacement
Shaft
Shaft end pump
oil drain
 port location
Middle pump
oil drain
port location
Cover end pump
  drain port
  location
  Pump
mounting
Rotation
Design
number

Omit for mineral oil
F3:phosphate
ester
F11:water glycol		SQP21110121415171921 234567
89111214		2345678 86
See
below
See
below
See
below
Omit for
flange
mounting
2*:foot
mounting
Viewed
from shaft
end of
pump
Omit for
CW
LH:CCW		18
SQP31117212530323538 234567
89111214		2345678
SQP321
17212530323538
10121415171921
2345678911
SQP421303538425060 10121415171921 2345678911
SQP431303538425060 17212530323538 23456789111214
SQP432303538425060 17212530323538 10121415171921


  • Pin-supported vane design reduces friction and wear

  • High pressure capability with stable performance

  • Low noise and low vibration operation

  • High volumetric efficiency

  • Long service life and reliable operation

  • Suitable for continuous and heavy-duty applications

Applications

  • Industrial hydraulic power units

  • Injection molding machines

  • Press machines

  • Machine tools

  • Die casting equipment

  • Metallurgical and heavy-duty machinery

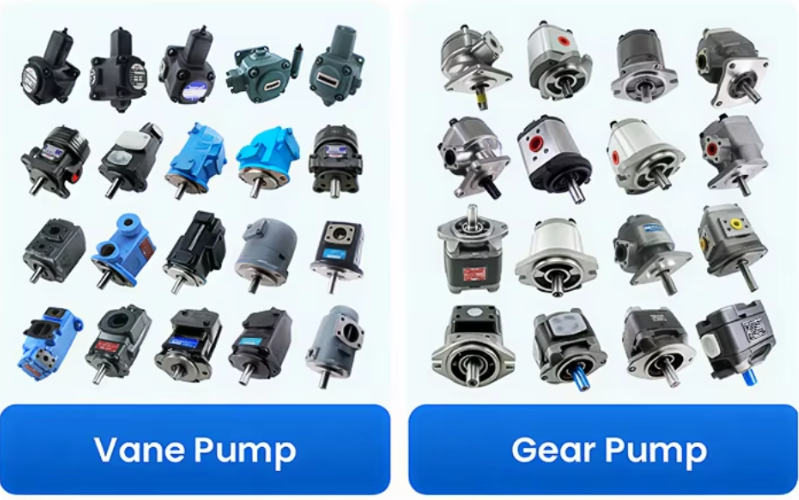

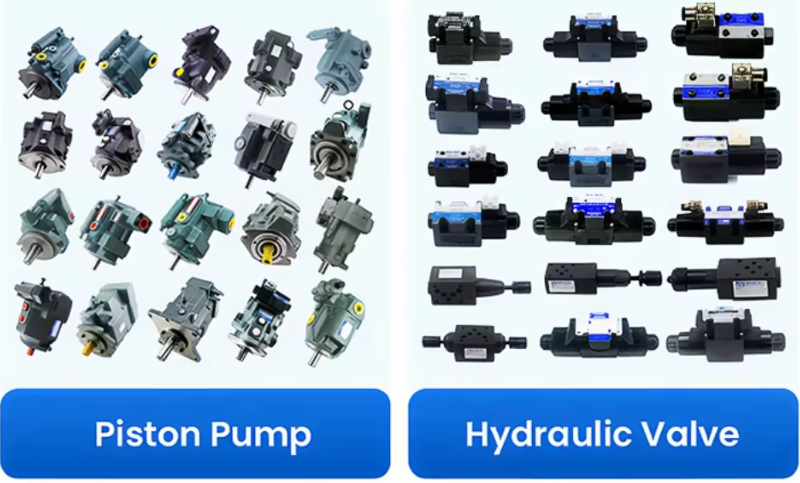

Main Products


Packaging & Shipping


Our Advantages

1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions

Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

FAQ


Q: What's the lead time for orders?
A: Standard models ship in 7-15 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
