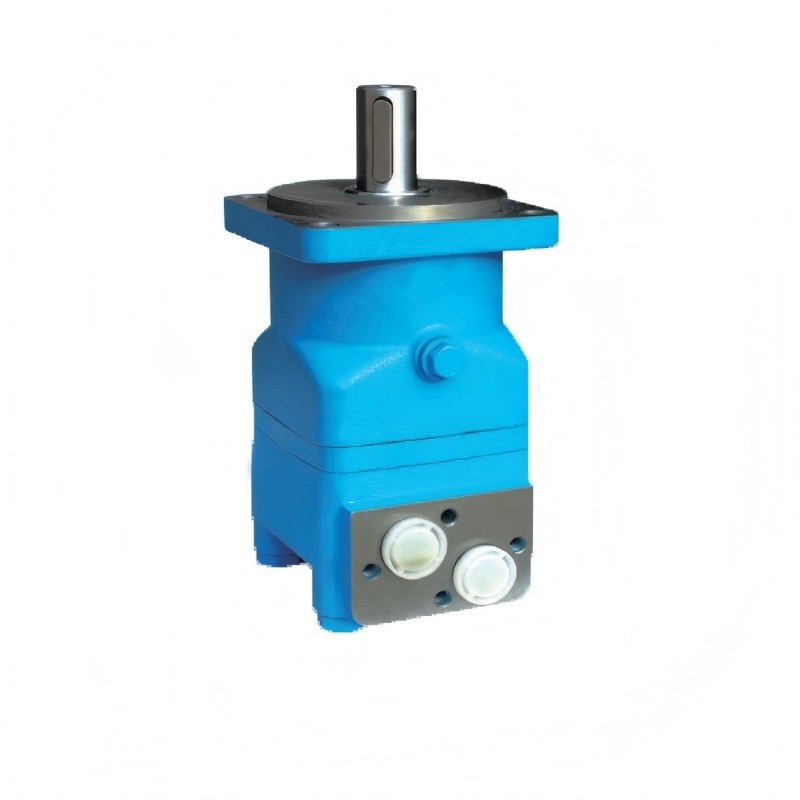

Core Advantages

1. End Face Disc Distribution with Automatic Wear Compensation

   Equipped with high-precision distribution disc that automatically compensates internal clearance after abrasion. Volumetric efficiency stays above 90% for long-term operation. It runs smoothly without low-speed creeping, featuring low vibration and noise to extend service life.

   8/9-Tooth Pin Geroler Set Delivers Low-Speed High Torque

   Optimized cycloid gear design realizes ultra-low startup pressure. Rated working pressure reaches 14 MPa, while intermittent peak pressure hits 21 MPa. It outputs powerful torque at low rotation speed to save energy and guarantee stable power output.

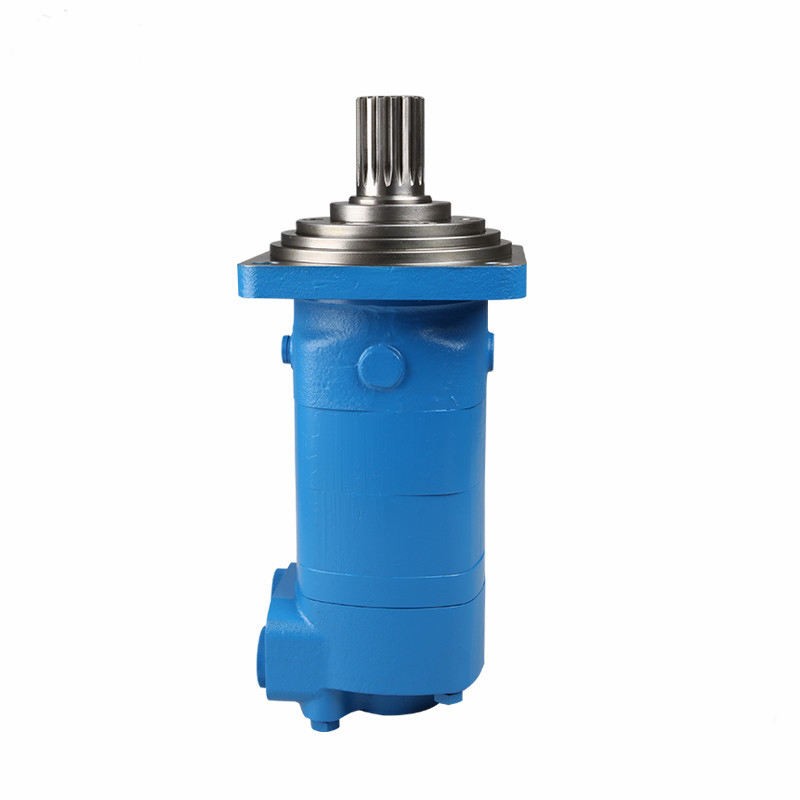

   Double Tapered Roller Bearings for Heavy Combined Loads

   The output shaft adopts double tapered roller bearings to bear large radial and axial composite loads. It can directly drive wheels, rollers and winches without extra reducers, simplifying the whole machine structure.

   Wide Speed Range & Compatibility with Various Hydraulic Circuits

   Stable operating speed ranges from 20 rpm to 300 rpm with seamless speed transition. It tolerates back pressure up to 10 MPa and supports series or parallel connection of multiple motors, fitting diverse complex hydraulic systems.

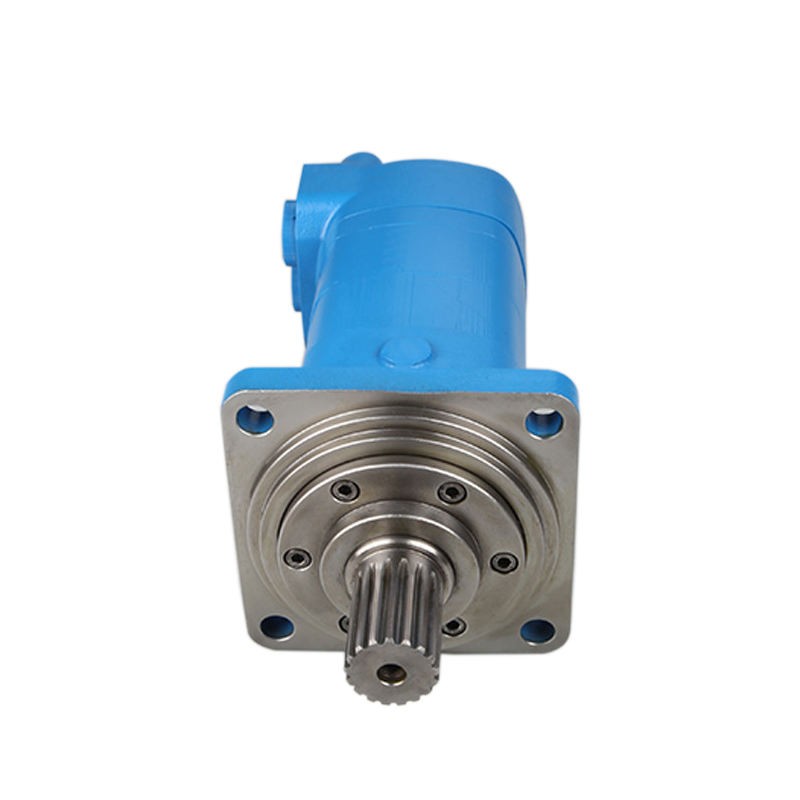

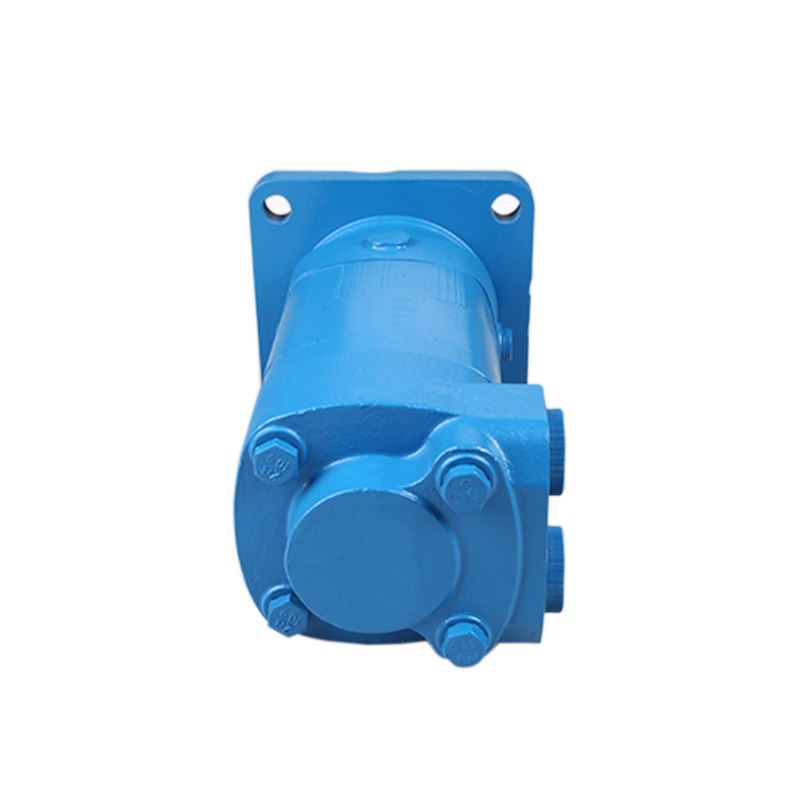

   Compact Integrated Housing with Universal Easy Installation

   Integral cast steel housing features small size and light weight. Standard 4-bolt square flange is equipped as default, with multiple optional ports and output shafts. It matches mainstream international mounting dimensions for convenient replacement.
