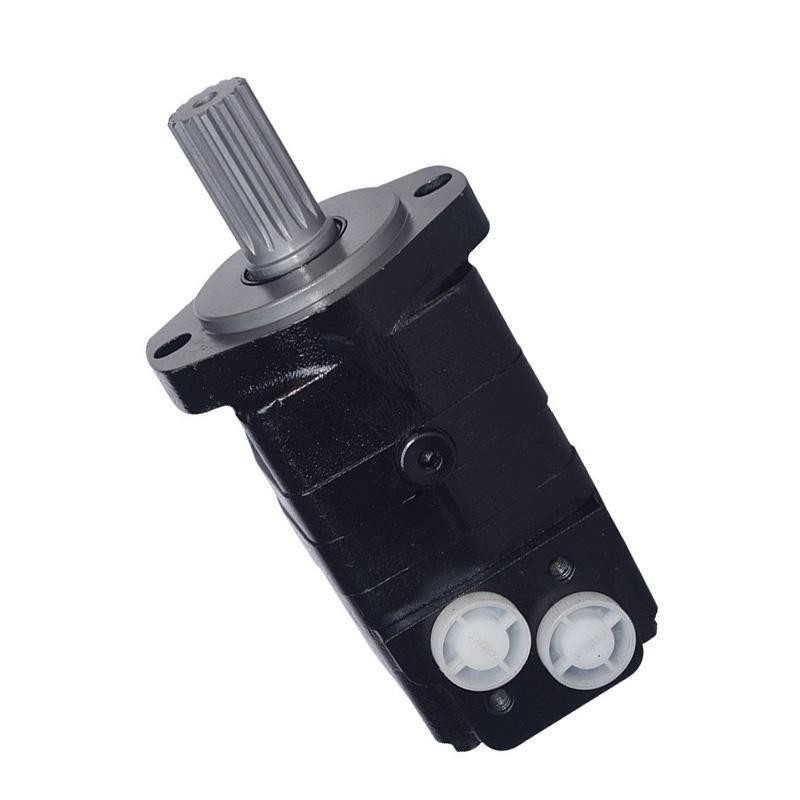

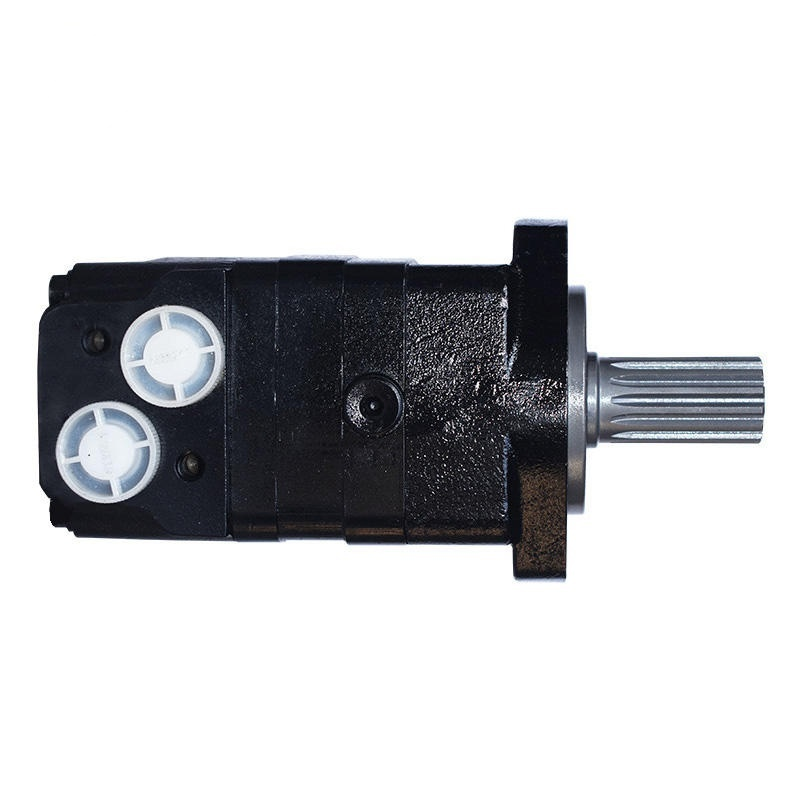

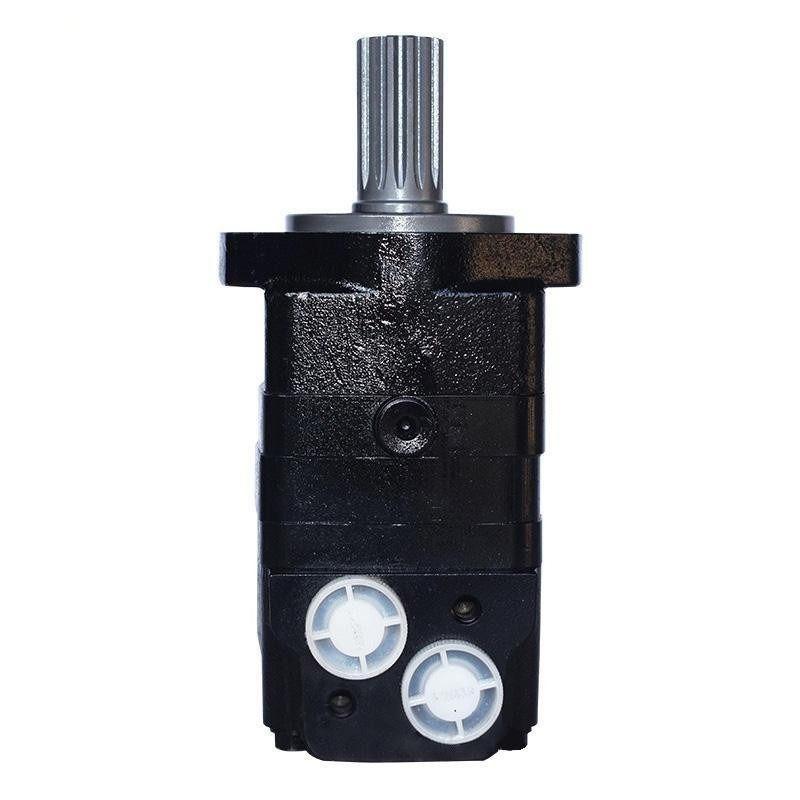

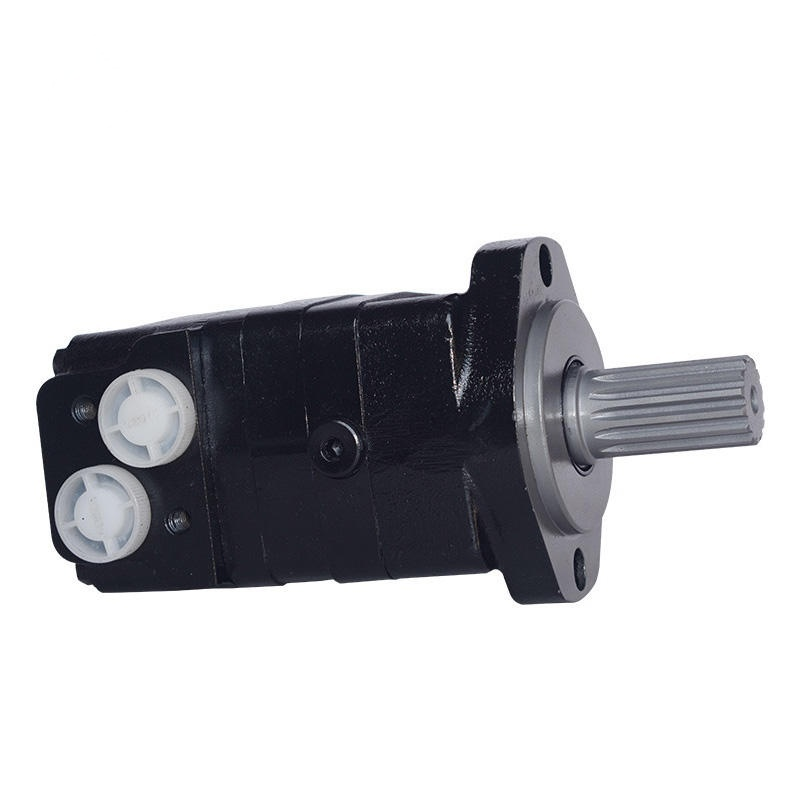

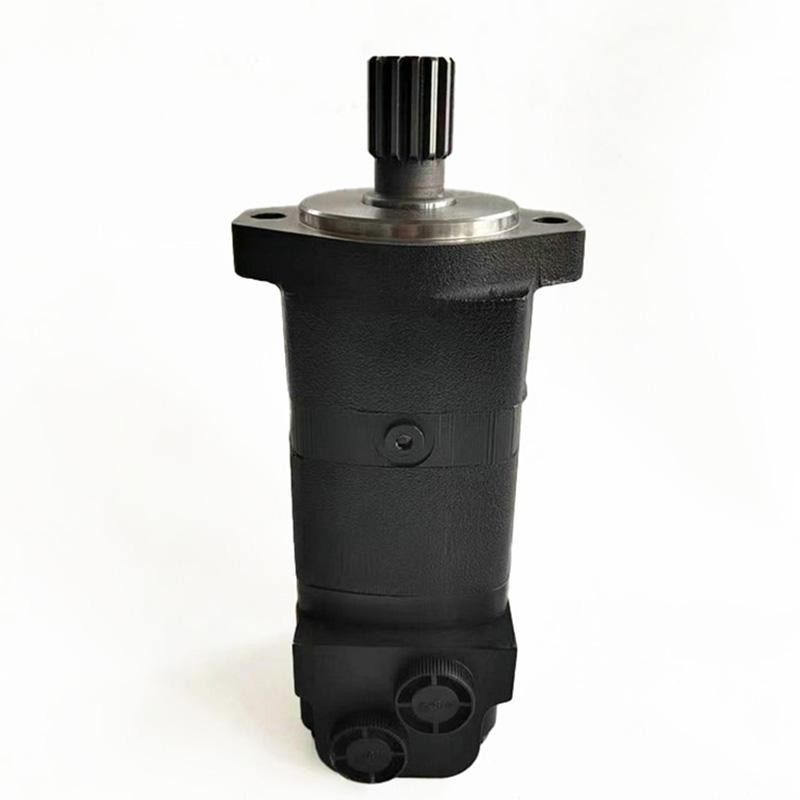

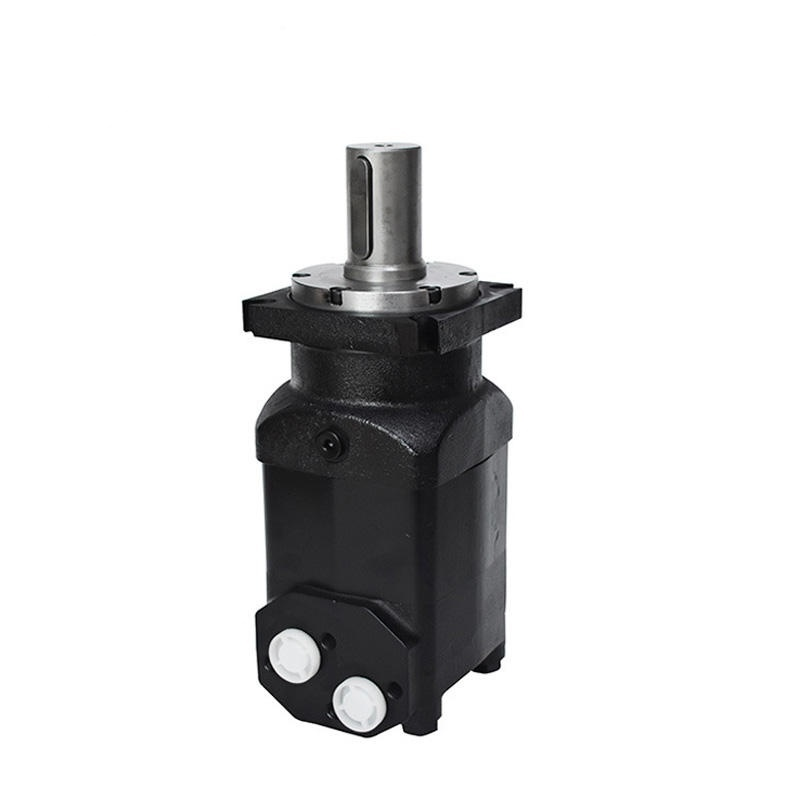

HMV Series End-Face Distribution Orbital Hydraulic Motor
HMV series is fixed displacement orbital motor with end-face flow distribution, interchangeable with Danfoss OMV & Eaton 8K series. It adopts integrated orbital stator-rotor pair and auto-compensating valve plate to maintain stable volumetric efficiency after wear.The motor features square 4-hole mounting flange, involute multi-spline output shaft and dual standard oil ports, with integral cast steel housing. Equipped with double taper roller bearings to bear heavy radial impact loads. It owns low starting pressure, smooth low-speed rotation without crawling, stable performance under long-term heavy load and intermittent impact conditions. Optional external brake valve, relief valve and drain port assembly, customizable multiple displacements, direct replacement for imported equivalent motors without machine modification.
| (ml/r)Displacement | 310 | 390 | 500 | 630 | 800 | 1000 | 1250 | 1600 | |
| (LPM) | Continuous | 150 | 150 | 150 | 150 | 150 | 300 | 312 | 320 |
| Flow | Intermittent | 225 | 225 | 225 | 225 | 225 | 340 | 400 | 400 |
| (RPM) | Continuous | 484 | 385 | 307 | 241 | 320 | 300 | 250 | 200 |
| speed | Intermittent | 699 | 572 | 454 | 355 | 400 | 350 | 320 | 250 |
| (Mpa) | Continuous | 20.5 | 20.5 | 17 | 16 | 16 | 16 | 16 | 16 |
| pressure | Intermittent | 31 | 31 | 24 | 25 | 25 | 25 | 25 | 25 |
| (N*m) | Continuous | 928 | 1156 | 1215 | 1411 | 1800 | 2200 | 2800 | 3600 |
| Torque | Intermittent | 1356 | 1633 | 1685 | 2217 | 2800 | 3200 | 4400 | 5500 |
Core Advantages
- Auto-compensating end-face distribution design, automatic wear compensation to maintain high volumetric efficiency long-term
Low speed high torque output, low starting pressure, smooth rotation without crawling or vibration
Double row tapered roller bearings, strong capacity to bear heavy radial load and resist impact loads
Standard square flange & multi-spline shaft, direct interchangeable replacement for Danfoss OMV & Eaton 8K imported motors
Integral cast steel housing with wear-resistant friction pairs, good resistance to hydraulic oil impurities for longer service life
Low internal leakage, lower energy consumption to reduce equipment operation cost
Optional brake valve, relief valve and drain assembly, providing one-stop integrated drive solution
Complete range of displacement options, widely applied for small & medium travel, slewing and winch drive systems
Compact and mini structure, save installation space for machinery with flexible layout
Stable temperature performance under all working conditions, no overheating during long continuous operation
Standard oil port layout, easy disassembly and maintenance to cut after-sales cost
Full high-pressure performance test for every unit before delivery, low factory failure rate and stable quality.
Applications
- HMV orbital hydraulic motors are widely used in travel, slewing and winch hydraulic drive systems of construction machinery, agricultural & forestry equipment, sanitation vehicles and industrial port machinery.
