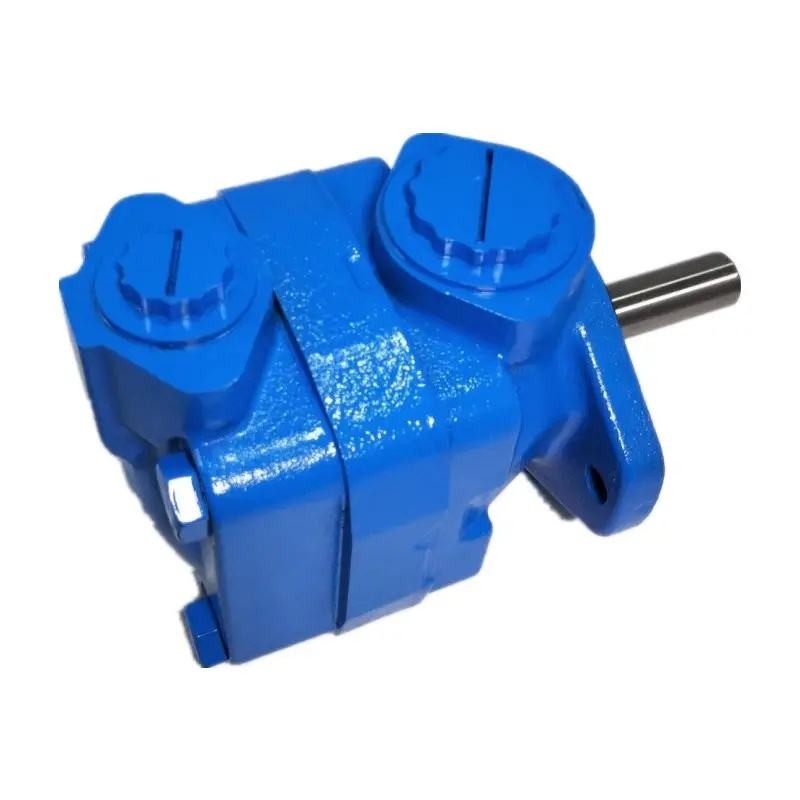

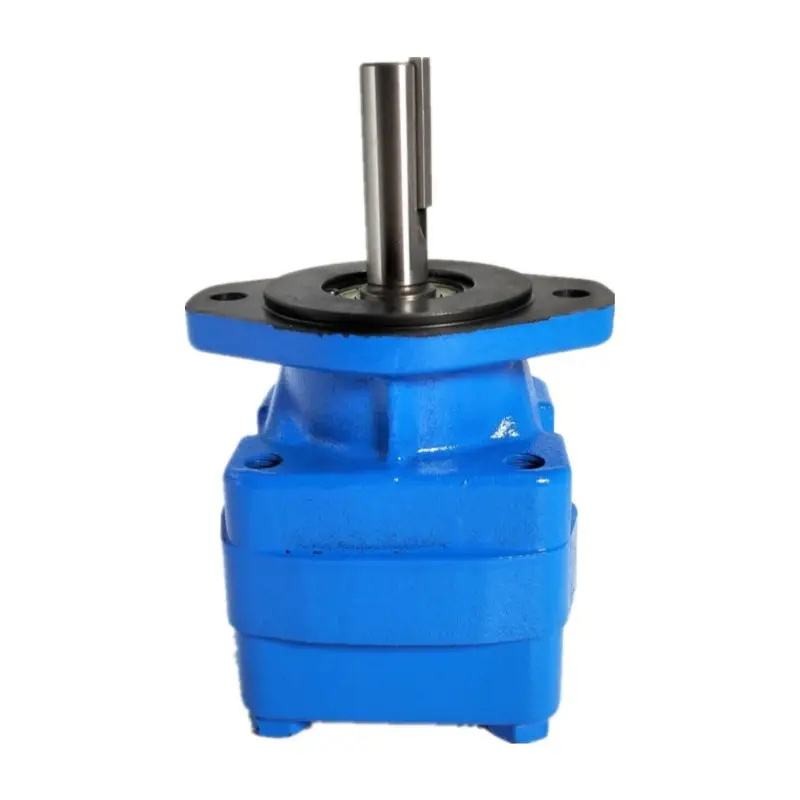

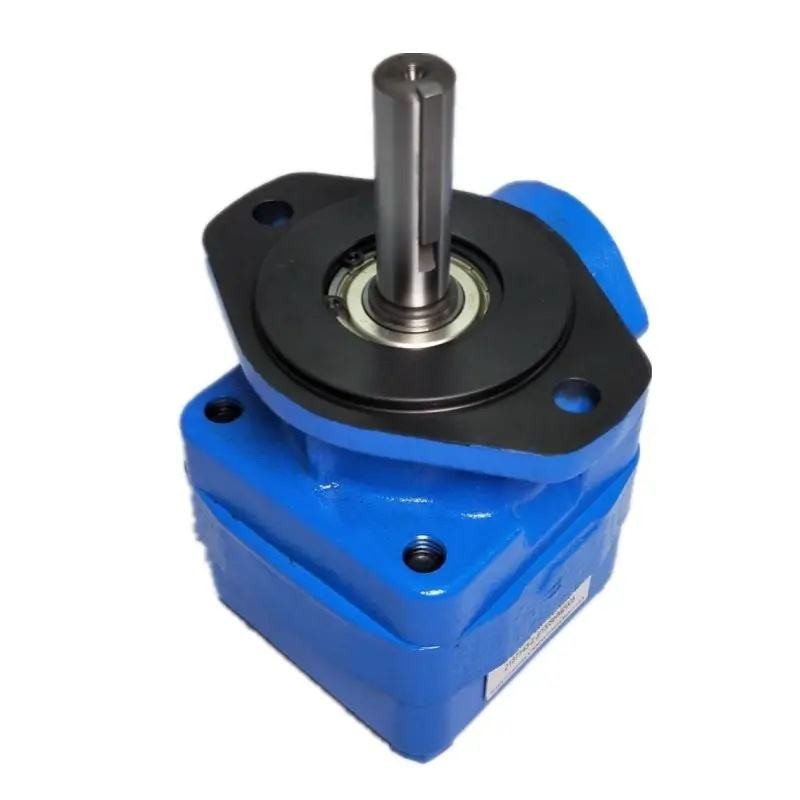

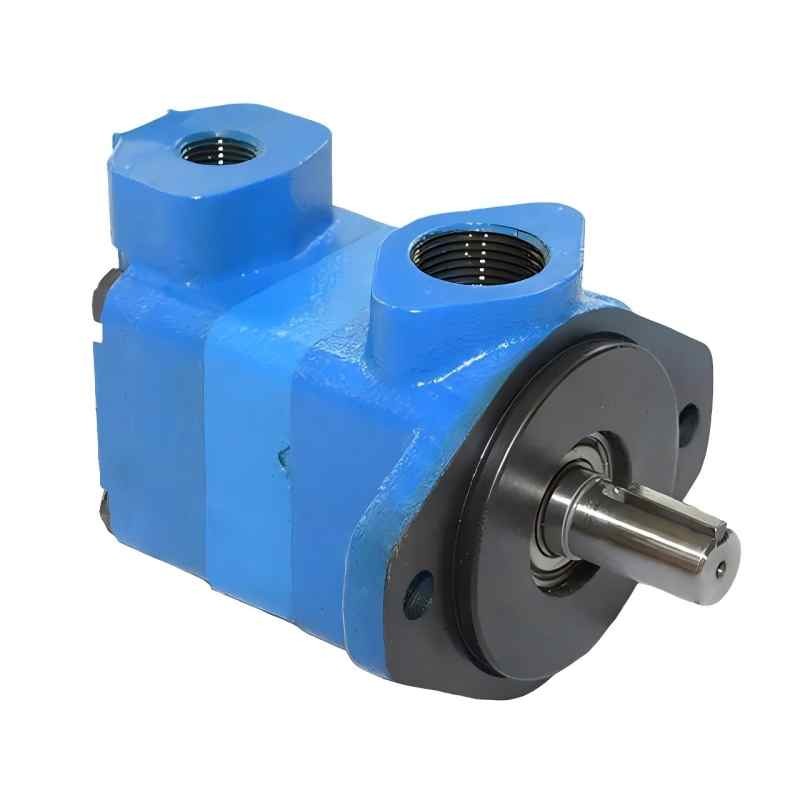

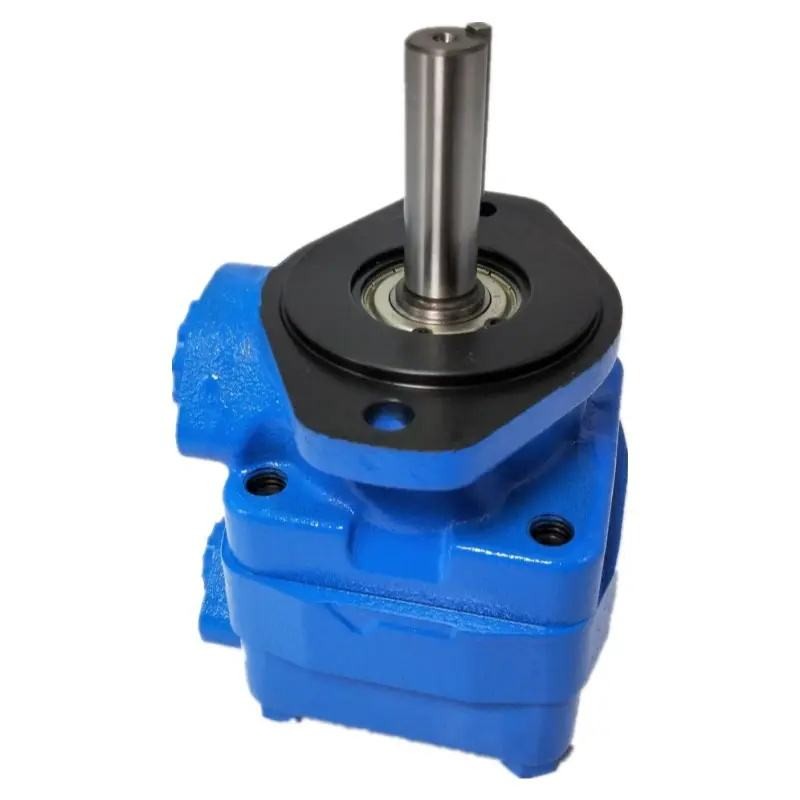

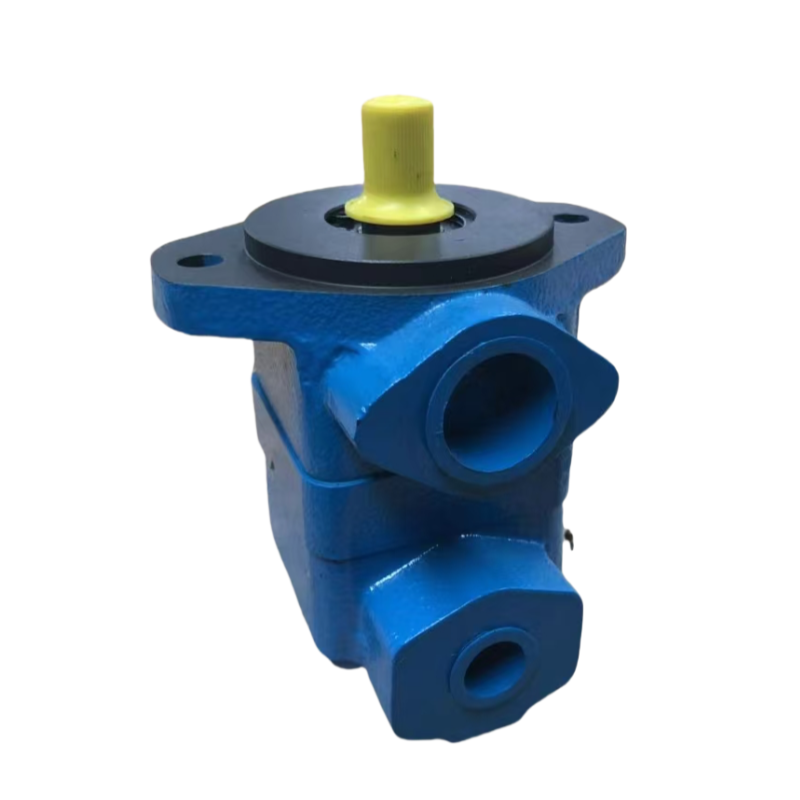

V10 V20 Series Single Intra-Vane Pump

V10 V20 Series Single Intra-Vane Pump
V10 and V20 compact single intra-vane pumps feature light and small housing. Balanced intra-vane reduces flow ripple, and floating side plates compensate wear automatically for stable and quiet operation. Multi-angle adjustable ports and replaceable cartridge simplify maintenance. Interchangeable with original Vickers pumps, ideal for medium-low pressure hydraulic systems such as small hydraulic units, automation equipment, sanitation vehicles and light machinery.

Product Details

Product Tags

Product Description

V10 and V20 are compact single fixed displacement intra-vane pumps interchangeable with original Vickers pumps. Adopting balanced intra-vane structure, they deliver low flow ripple and quiet operation. Built-in floating side plates automatically compensate face wear to keep stable volumetric efficiency in long-term operation. The cartridge is of insert design for convenient inspection and replacement. Inlet and outlet ports can be rotated at 90° intervals to facilitate flexible piping layout. Featuring compact size and light weight with universal mounting dimensions, they are widely used in small hydraulic power units, automation tooling, light machinery, sanitation vehicles and other light-duty hydraulic systems.

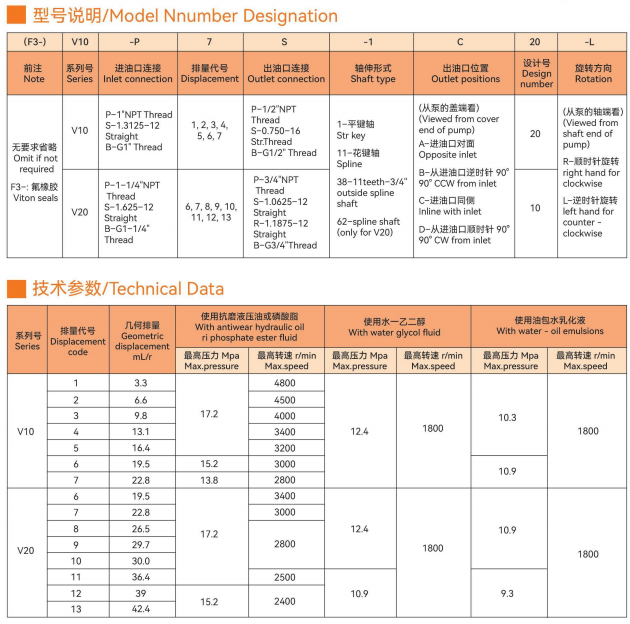

V10/V20,Series-Single Pumps

(F3-)V10-P7 S-1 C20 -L

Note
Series
Inlet connection
Displacement
Outlet connection
Shaft type
Outlet positions
Design
number
Rotation

Omit if not
required

F3-:
Viton seals		V10P-1"NPT Thread
S-1.3125-12
Straight
B-G1"Thread		1,2,3,4,
5,6,7		P-1/2"NPT
Thread
S-0.750-16
Str.Thread
B-G1/2"Thread		1-
Str key

11-
Spline

38-11teeth-3/4"
outside spline
shaft

62-spline shaft
(only for V20)
(Viewed from cover
end of pump)
A-
Opposite inlet

B-°
90°CCW from inlet
C-
Inline with inlet
D-
90°CW from inlet		20
(Viewed from
shaft end of
pump)

R-
right hand for
clockwise
L-
left hand for
counter -
clockwise
V20P-1-1/4"NPT
Thread
S-1.625-12
Straight
B-G1-1/4"
Thread		6,7,8,9,10,
11,12,13		P-3/4"NPT
Thread
S-1.0625-12
Straight
R-1.1875-12
Straight
B-G3/4"Thread		10


  • Pin-supported vane design reduces friction and wear

  • High pressure capability with stable performance

  • Low noise and low vibration operation

  • High volumetric efficiency

  • Long service life and reliable operation

  • Suitable for continuous and heavy-duty applications

Applications

  • Industrial hydraulic power units

  • Injection molding machines

  • Press machines

  • Machine tools

  • Die casting equipment

  • Metallurgical and heavy-duty machinery

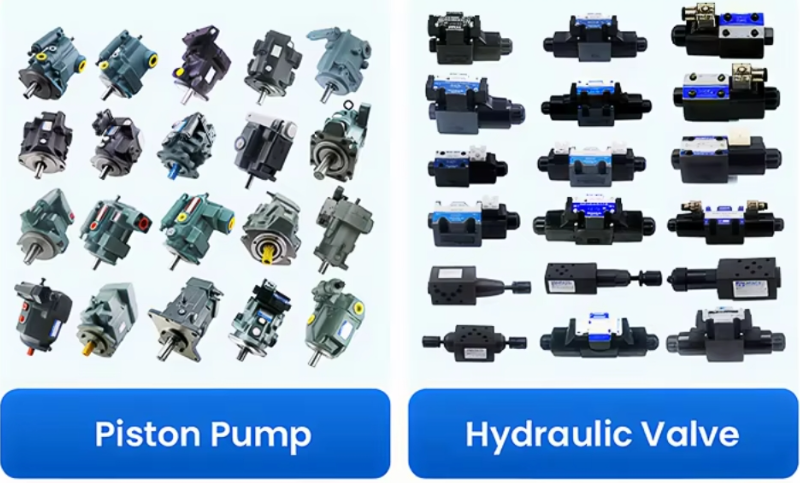

Main Products

Packaging & Shipping


Our Advantages

1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions

Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

FAQ


Q: What's the lead time for orders?
A: Standard models ship in 7-15 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
